| Key Capabilities | Factory Standard |
|---|---|
| Finished Profile | Heavy Duty Pallet Rack Uprights / Posts |
| Processing Thickness | 1.5 mm - 3.0 mm |
| Punching Method | Continuous Hydraulic Pre-Punching System |
| Transmission Type | Gimbal Gearbox Drive / Chain Drive |
| Operation Mode | Fully Automated via PLC Dashboard |

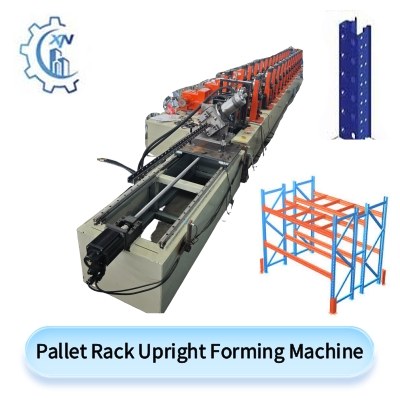

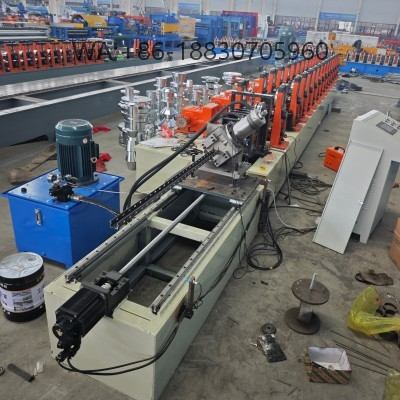

Maximize your warehouse storage manufacturing capability with our advanced upright roll forming machine. Specially engineered for heavy-duty storage racking production, this line transforms high-tensile steel coils into perfectly punched warehouse rack posts. By choosing an optimized upright roll forming machine, your plant can meet the strictest structural standards required for modern logistics infrastructure.
| Engineering Specifications | Technical Reference Values |
|---|---|
| Raw Material Compatibility | Cold Rolled Steel, Hot Rolled Steel, Galvanized Coils |
| Forming Stations Count | 20 - 24 Roller Passes (Ensures structural precision) |

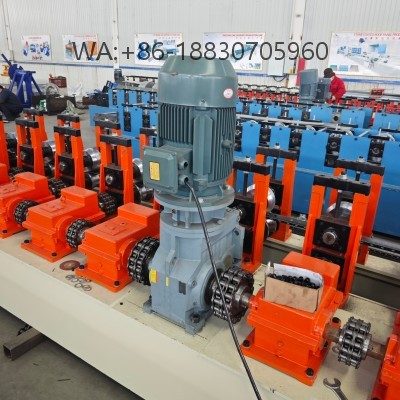

| Main Motor Output | 15 kW / 22 kW AC Motor with Inverter Control |
| Punching Die Grade | Cr12MoV Steel, Vacuum Heat Treatment |

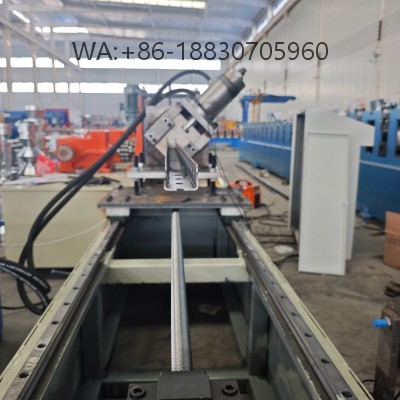

| Cutting System Type | Hydraulic Post-Cutting / Flying Hydraulic Shear |
| Linear Speed Capacity | 8 - 12 meters per minute (including punching time) |
| Shearing Tolerance | Within ± 1.0 mm per 6000 mm profile length |
| Electrical Input Rating | 380V, 50Hz, 3-Phase (Configurable to destination grids) |

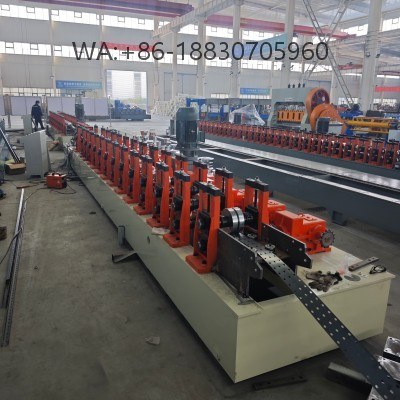

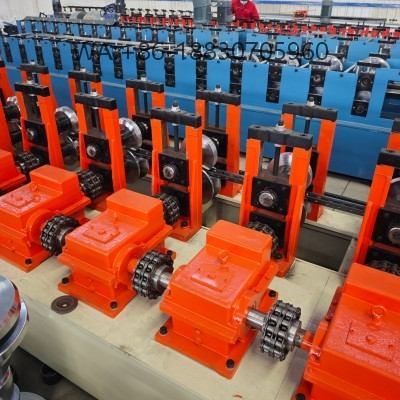

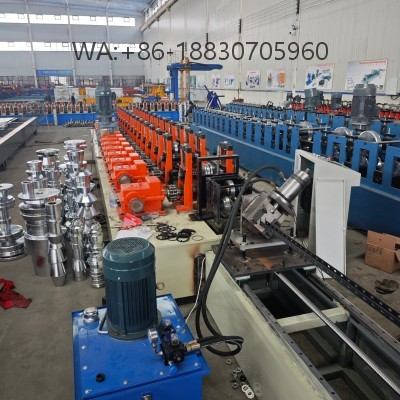

This high-capacity upright roll forming machine processes thick gauge material with extreme accuracy, utilizing robust forming stations driven by centralized gearboxes. The specialized mechanical architecture easily handles complex, multi-bend profiles without material structural fatigue or dimensional warping. Ensuring perfect alignment across every section, our heavy-duty machinery keeps part rejection rates at an absolute minimum.

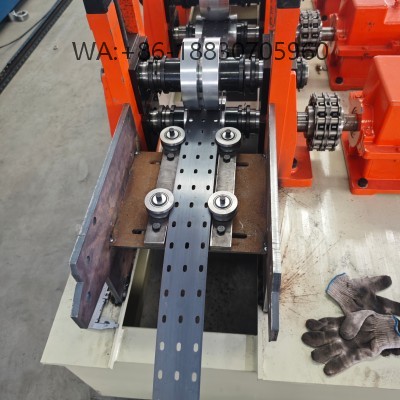

At the heart of the fabrication system is an integrated online hydraulic punching mechanism. This smart upright roll forming machine utilizes precise servo-motor feeding units to execute complex teardrop or butterfly hole patterns on the steel strip prior to rolling. Controlled via an intuitive PLC dashboard, operators can adjust punch pitches instantly, making the assembly line highly versatile for variable racking heights.

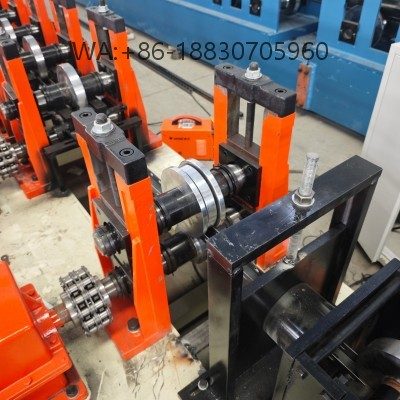

Durability remains top-of-mind for intensive industrial plant conditions. Every roller within our premium upright roll forming machine is meticulously CNC-machined and quenched to achieve optimal surface hardness and shock resistance. Investing in this industrial grade upright roll forming machine secures long-term operational stability and reduced component wear, yielding an exceptional return on investment for high-output steel fabrication business.
We provide tailored machine configurations to seamlessly adapt to your specific workshop space and floor requirements. Don't compromise on load-bearing structural integrity or throughput metrics. Contact our engineering team today to receive a detailed factory-direct quote for this heavy-duty upright roll forming machine and streamline your supply chain output effectively.
