| Key Features | Equipment Standard |
|---|---|
| Profile Application | Joint Hidden / Concealed Fastener Roof Panels |
| Effective Cover Width | 815 mm (Total Width: 820 mm) |
| Profile Wave Height | 30 mm |
| Control Architecture | Integrated PLC System with Digital Touch HMI |

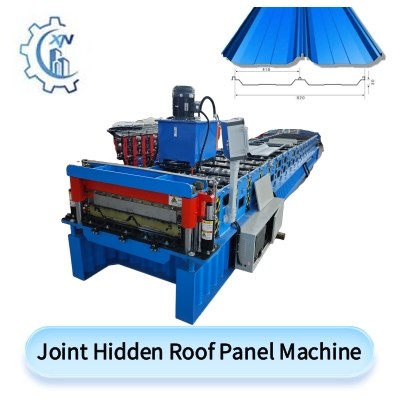

Eliminate water leakage risks and visible screw corrosion from your metal building projects with our state-of-the-art joint hidden roof panel machine. As illustrated in the system diagram of joint-hidden-roof-panel-machine-1.jpg, this professional roll forming system is engineered to manufacture specialized panels with an interlocking clip mechanism. Transitioning to a high-precision joint hidden roof panel machine allows your facility to fulfill high-end architectural and industrial demands for commercial warehouses, premium roofing, and large-scale infrastructure.
| Technical Specifications | Detailed Value / Range |
|---|---|
| Applicable Raw Materials | PPGI/PPGL, Galvalum Coils, Galvanized Steel, Aluminum |
| Material Thickness Capacity | 0.3 mm - 0.7 mm Heavy Duty Sheet Metal |
| Roll Forming Stations | 18 - 22 Bending Stages (Ensures No Material Stretching) |
| Roller Material Structure | High-grade 45# Steel, Precision Forged with Hard Chrome Coating |
| Solid Shaft Diameter | ø 72 mm / 75 mm Heat-Treated Carbon Steel |
| Line Operating Speed | 10 - 15 meters per minute (Inverter Controlled) |
| Cutting Tool Mechanism | Hydraulic Post-Forming Profile Shear (Cr12 Blade Material) |
| Main Motor Drive Power | 5.5 kW / 7.5 kW with Premium Reduction Gearbox |
Mechanical excellence is deeply integrated into this roll former's structural frame. The multi-stage progressive roller stations form the hidden joints smoothly, preventing panel deformation, oil-canning, or buckling. When utilizing this specialized joint hidden roof panel machine, our precision-ground rollers—finished with a dense layer of hard chrome plating—guarantee that the pre-painted coatings or delicate zinc-alume protective layers remain flawless and completely scratch-free throughout high-volume fabrication schedules.

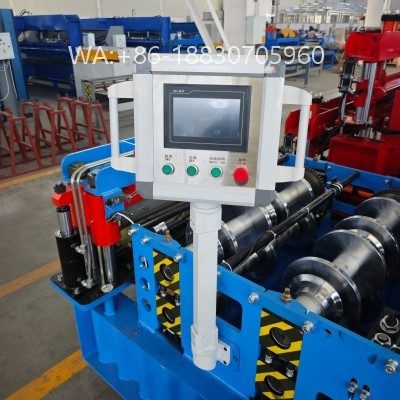

Equipped with an intelligent PLC automation interface, our joint hidden roof panel machine optimizes your labor efficiency while maintaining perfect geometric tolerances. Operators can dynamically control batch volume requirements, adjust specific panel lengths, and coordinate automatic shearing via a multi-language touch screen console. The seamless communication loop between the variable frequency drive (VFD) and the heavy-duty hydraulic cutting system eliminates dimensional discrepancies and dramatically cuts trim waste.
Investing in a high-grade joint hidden roof panel machine gives your business a substantial market edge over traditional exposed-fastener panel suppliers. Because the finished panels feature hidden interlocking overlaps, screws are protected from direct exposure to rain and sun, ensuring 100% waterproof integrity and extended roof lifespans. This low-maintenance machinery offers exceptional reliability, quick return on investment, and high-capacity manufacturing capabilities.
Our experienced engineering team provides flexible customization options, allowing adjustments to your local power line voltage, speed profiles, and specific drawing geometry. Stop letting roof panel leaks or outdated fastening profiles cap your workshop's growth. Contact our sales engineers today for a factory-direct quote on our premier joint hidden roof panel machine and upscale your commercial production capacities.
