| Core Specifications | Technical Data |
|---|---|
| Suitable Material | PPGI, GI, Galvalume, Aluminum Coils |
| Material Thickness | 0.4 mm - 0.7 mm |
| Control System | PLC with Touch Screen Operation |
| Forming Speed | 12 - 18 m/min |

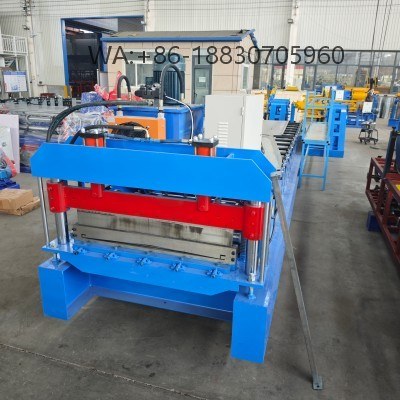

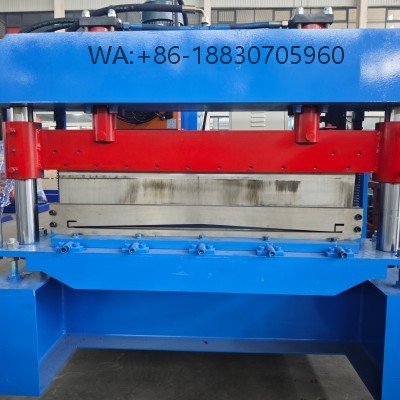

| Cutting Mechanism | Hydraulic Post-Cutting, No Deformation |

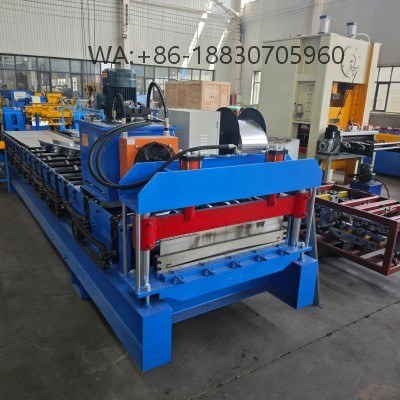

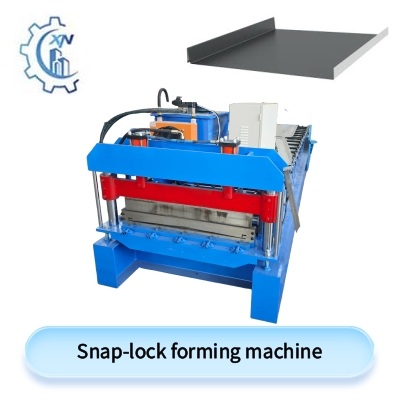

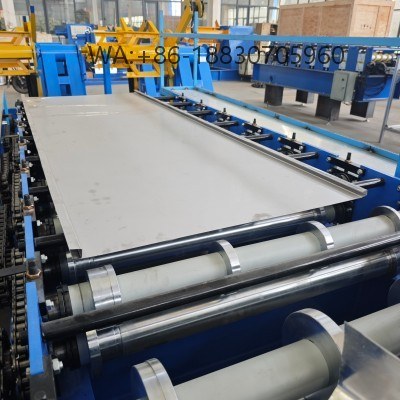

Discover the ultimate solution for standing seam roof production with our high-performance snap lock machine. Specially engineered to manufacture premium metal roofing panels, this roll former guarantees seamless joints without visible screws or fasteners. Upgrade your fabrication capabilities today with this cutting-edge system.
| Comprehensive Parameters | Standard Values |
|---|---|
| Roller Material | High-grade 45# Steel, Hard Chrome Plated |
| Shaft Diameter | ø 70mm / 75mm Solid Steel |
| Forming Stations | 14 - 18 Roller Steps (Profile Dependent) |
| Main Motor Power | 5.5 kW Frequency Control |

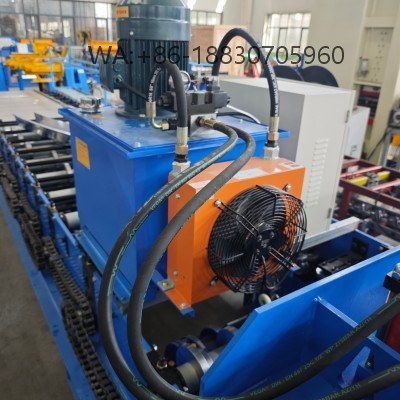

| Hydraulic Pump Power | 4.0 kW |
| Cutting Tool Material | Cr12 Mould Steel with Quenched Treatment |
| Length Tolerance | ± 1.5mm (3000mm length) |
| Voltage Requirements | 380V/50Hz/3Phase (Customizable to local standards) |

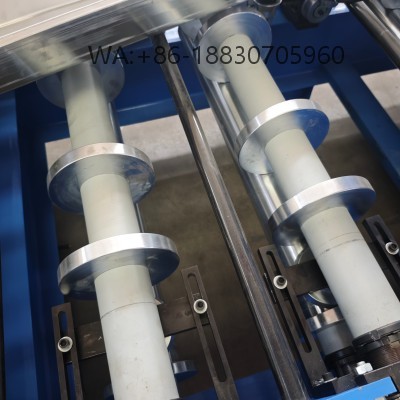

Built for long-lasting industrial durability, each component of the heavy-duty snap lock machine undergoes precise CNC machining. The solid steel forming rollers are chrome-plated to protect pre-painted steel or aluminum coils from scratches. This reliable setup ensures perfectly uniform panel edges and prevents structural warping under continuous load.
Our modern snap lock machine integrates a state-of-the-art PLC automatic control system, providing users with absolute command over panel lengths and batch quantities. The touch-screen interface allows for swift adjustments, significantly decreasing production downtime. Operating this specialized snap lock machine requires minimal labor while yielding flawless results.
Investing in a professional-grade snap lock machine is an effective strategy to lower material waste and elevate overall manufacturing efficiency. Designed for rapid output and minimal maintenance, this industrial asset helps roofing contractors deliver projects ahead of schedule, drastically boosting your market competitiveness and return on investment.
As a premier roll forming machinery manufacturer, we offer flexible configurations tailored to your specific workshop layout. Contact our technical engineering team now to receive a customized factory price for this top-tier snap lock machine and scale your business effortlessly!
