| Key Features | Equipment Standard |
|---|---|
| Profile Standard | EGA 300 & EGA 400 Box Profile (Trapezoidal) |
| Effective Cover Width | 700 mm |
| Profile Rib Height | 41 mm |
| Primary Target Markets | Ethiopia, Djibouti, Kenya, Somalia, and Sudan |

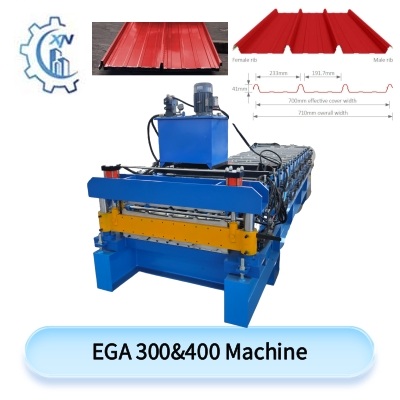

In the rapidly expanding construction sectors of East Africa, box profile roofing has become the premium standard for commercial warehouses, industrial plants, and modern residential developments. Specially optimized for regional market requirements, our high-performance ega-machine offers an industrial roll forming solution for producing standard Ethiopian box profiles. As shown in the configuration blueprint of ega-machine-3.jpg, this machine effortlessly switches or adapts to produce both EGA 300 and EGA 400 profiles with unmatched dimensional accuracy.
| Technical Specifications | Detailed Value / Range |
|---|---|
| Raw Material Input Width | 1000 mm Nominal Steel Coil Width |
| Material Thickness Capacity | 0.20 mm - 0.50 mm (Thin & Medium Gauge East African Standards) |
| Overall Sheet Profile Width | 710 mm Out-to-Out |
| Roller Station Architecture | 16 - 20 Heavy-Duty Bending Stages |
| Forming Roller Material | High-grade 45# Forged Steel with 0.05mm Hard Chrome Treatment |
| Main Power Drive Motor | 5.5 kW / 7.5 kW with Premium Cycloidal Reducer Gearbox |

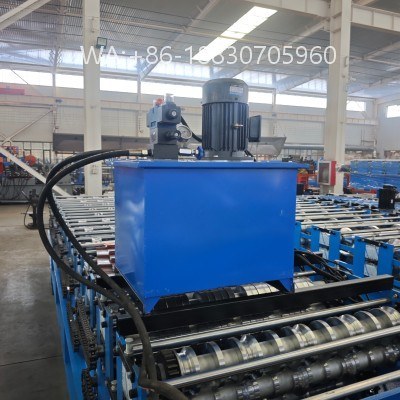

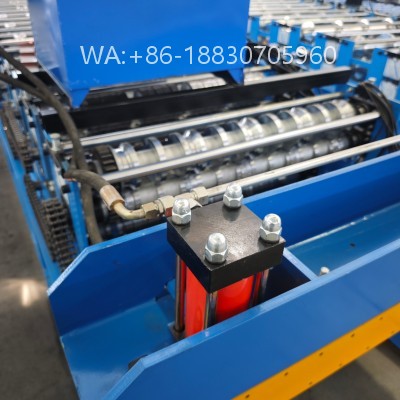

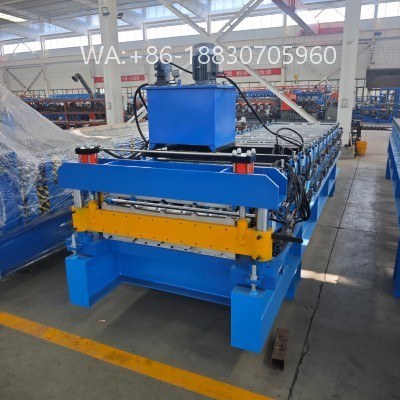

| Profile Shearing Mechanism | Hydraulic Post-Cutting System with Cr12 Molded Blades |
| Line Shearing Tolerance | Strictly within ± 1.0 mm |

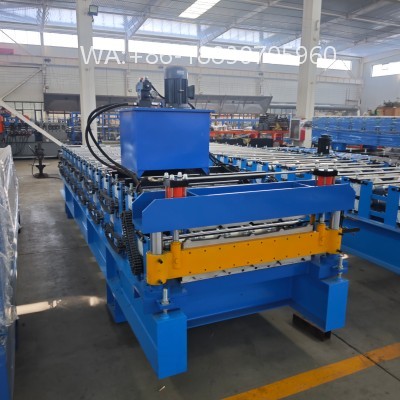

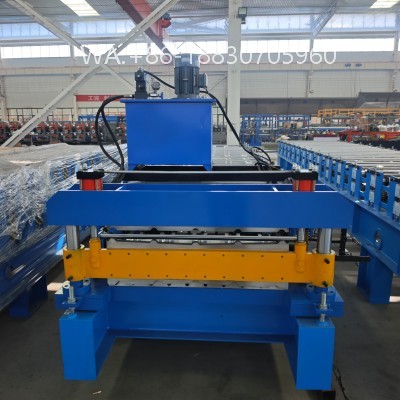

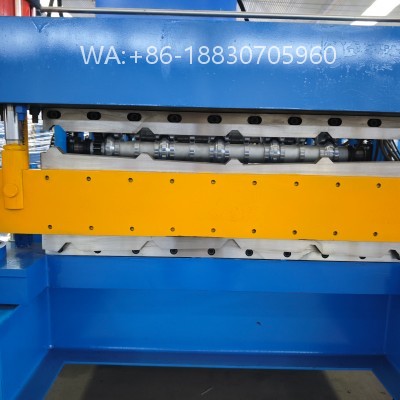

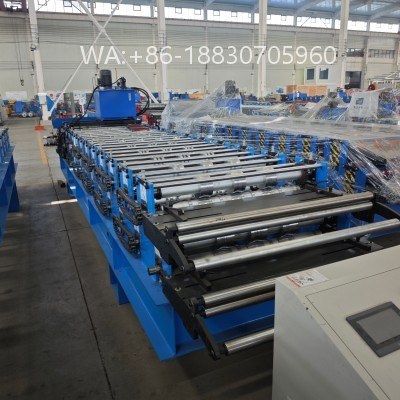

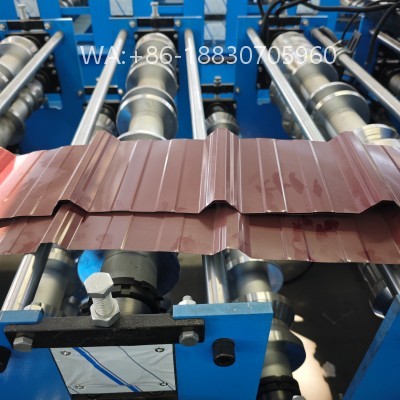

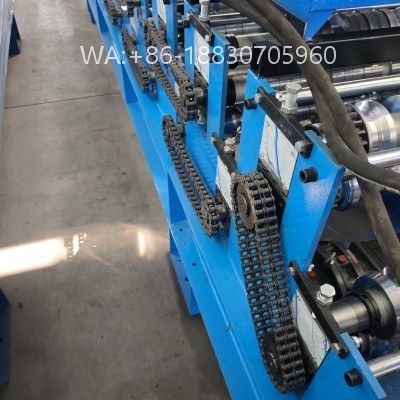

Engineered for continuous production cycles, the structural frame of this ega-machine is crafted from thick H-beam profile steel to absorb structural vibrations during operation. The tooling sequence forms the specific 41mm high trapezoidal ribs along with exact 233mm and 191.7mm pitches without wrinkling the steel surface. The hard-chrome coated rollers are carefully polished, ensuring that local pre-painted zinc (PPGI) or matte-finish galvalum coils preserve their anti-corrosive paint layers intact from entry to the exit table.
This automated ega-machine integrates a digital PLC automation system to simplify factory floor logistics. Via a user-friendly touch panel HMI, operators can instantly program desired sheet lengths and target batch counts to fulfill customer orders automatically. The synchronized coordination between the variable frequency drive (VFD) and the high-pressure hydraulic cutting station minimizes material end-trim waste, significantly cutting overhead expenses for producers in localized industrial zones.
Investing in a high-speed ega-machine allows local metal suppliers to step away from low-margin traditional corrugated iron sheets (CIS) and meet the lucrative demand for structural box profiles. Designed to stand up to challenging factory conditions and fluctuating local voltage inputs, this machine features durable, globally recognized electrical and hydraulic components. The precise overlapping design of the female and male edge ribs guarantees quick on-site alignment and superior leak protection for severe rainy seasons.
Our experienced technical department provides custom modifications to align with your specific plant layouts, including local 380V/50Hz/3-Phase electrical settings and heavy decoiler integration. Do not let outdated machinery bottleneck your output capabilities in a booming construction market. Contact our roll forming consultants today for factory-direct technical parameters and a quotation on this premium ega-machine.
