| Item | Specification |
|---|---|

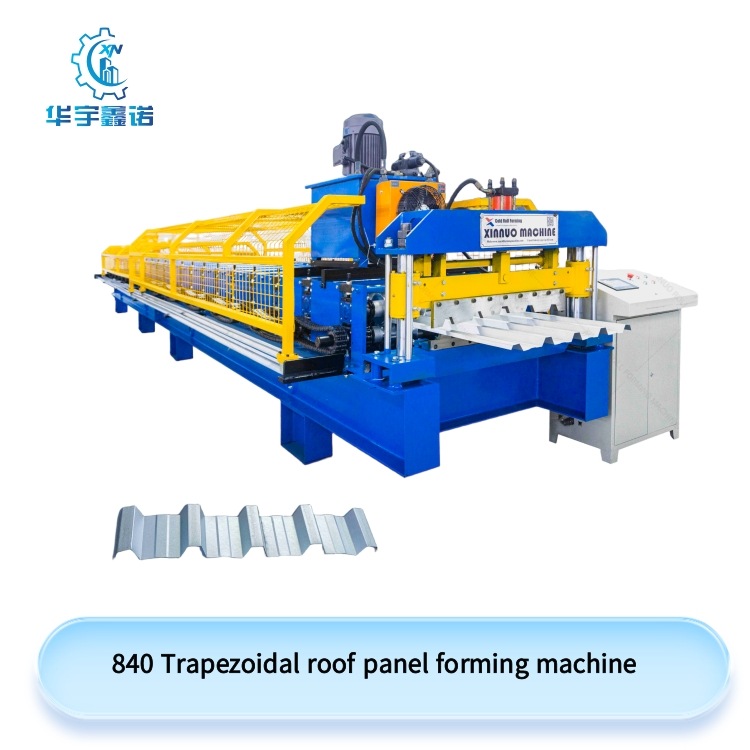

| Machine Type | 840 Trapezoidal Roof Panel Roll Forming Machine |
| Raw Material | Galvanized Steel, PPGI, Aluminum |
| Material Thickness | 0.3 – 0.8 mm |
| Effective Width | 840 mm |
| Forming Speed | 10 – 40 m/min |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Cutting |
| Certification | CE, ISO |
Trapezoidal roof panels are one of the most widely used types of roof panels.
Purchasing a trapezoidal roof panel forming machine to produce roof panels has a broad market and considerable profits.
Our factory designs, manufactures and sells trapezoidal roof panel machines by ourselves, so the quality and price of the machines are better.
For the same price we have more molding rows.
| Technical Item | Specification |
|---|---|
| Application | Trapezoidal Roofing Sheet Production |
| Raw Material | Galvanized Steel (GI), Pre-painted Steel (PPGI), Aluminum |
| Material Thickness | 0.3 – 0.8 mm |
| Coil Width | 1000 mm (depending on profile design) |
| Effective Panel Width | 840 mm |
| Profile Type | Trapezoidal (IBR Type / Rib Type) |
| Forming Speed | 10 – 40 m/min |

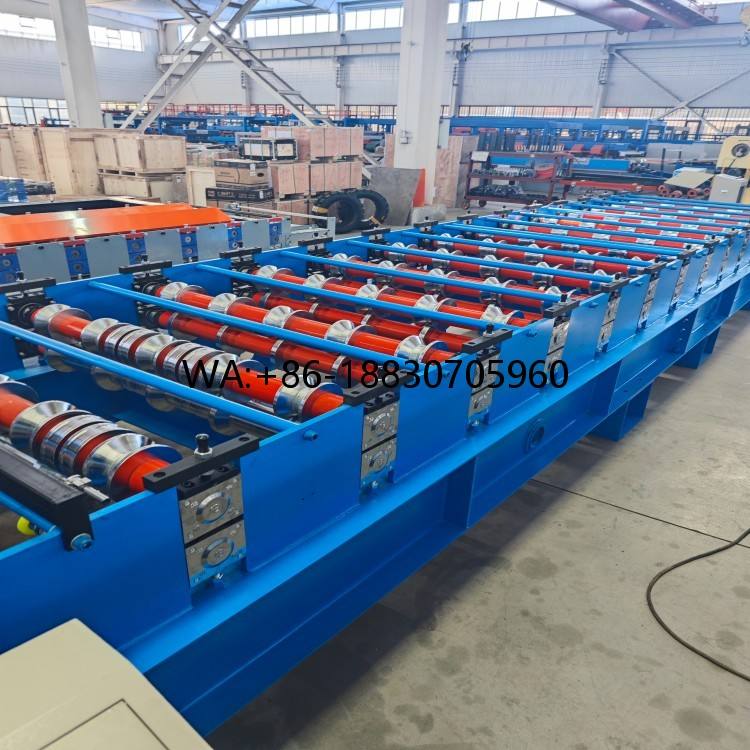

| Roller Stations | 16 – 22 stations |
| Shaft Diameter | 70 mm |
| Roller Material | GCr15, heat treated and hard chrome plated |
| Main Motor Power | 5.5 – 7.5 kW |
| Hydraulic Power | 4 – 5.5 kW |

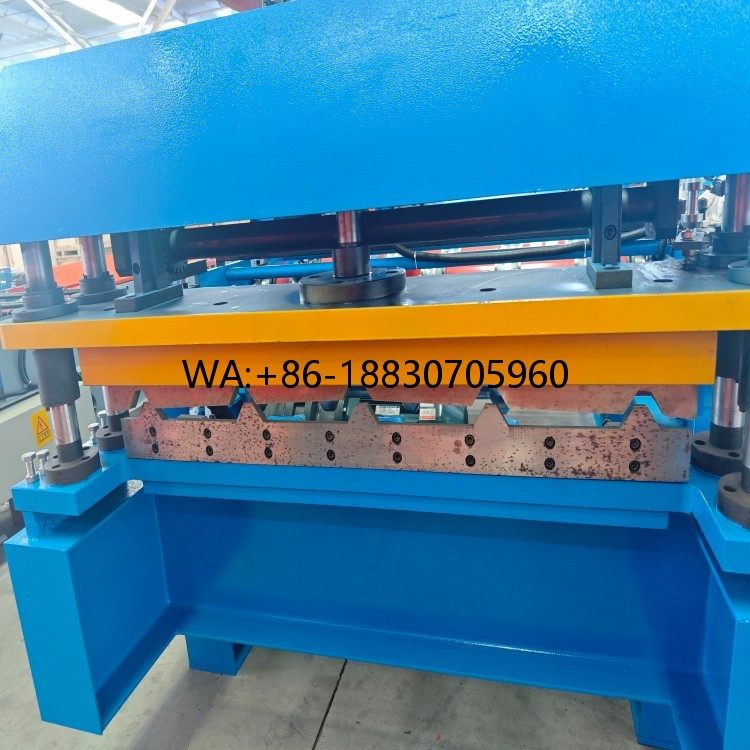

| Cutting System | Hydraulic Post-cutting |
| Control System | PLC (Siemens / Delta / Schneider options) |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
| Machine Frame | Welded Steel Structure, Heavy-duty Frame |
| Certifications | CE, ISO9001 |

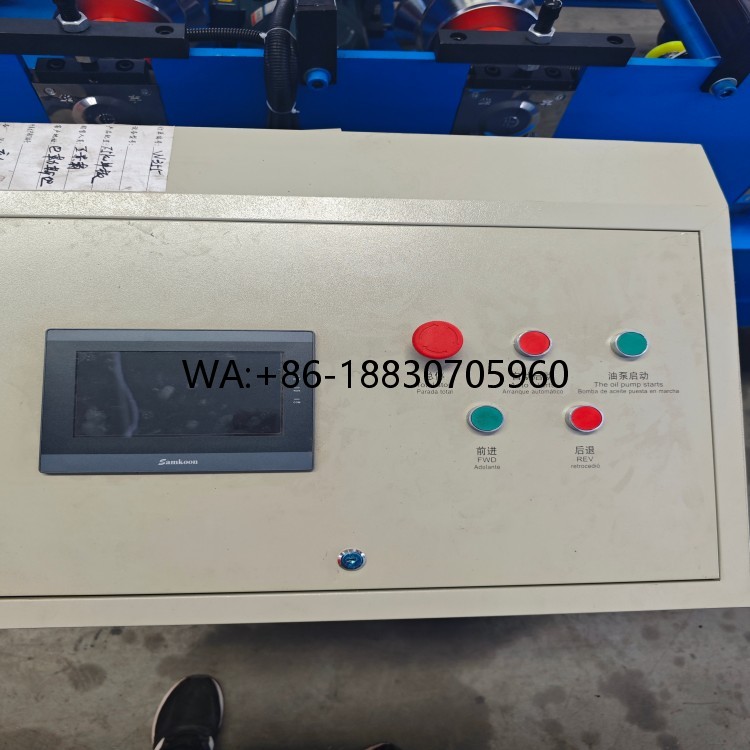

Design the machine's control system according to the customer's language
to ensure that the customer can use the machine easily after purchasing it.
