| Item | Specification |
|---|---|
| Machine Type | C Purlin Roll Forming Machine |
| Material | Galvanized Steel, Carbon Steel |
| Thickness | 1.5 – 3.0 mm |
| Forming Speed | 10 – 15 m/min |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Cutting |
| Certification | CE, ISO |

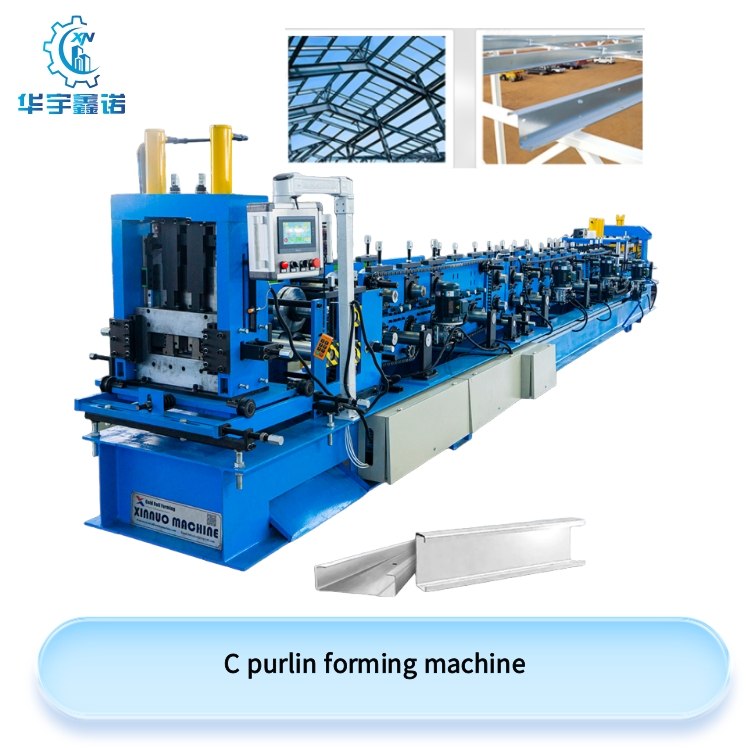

Our C-type purlin forming machine meets the global market's needs for the production of steel structure purlins.
The forming machines produced by our factory have the dual characteristics of reasonable price and excellent quality,
meeting the needs of customers to produce purlins and open up the building materials market.
| Technical Item | Specification |
|---|---|
| Application | Production of C-shape Steel Purlins |
| Raw Material | Galvanized Steel, Mild Steel, High Tensile Steel |
| Material Thickness | 1.5 – 3.0 mm |
| Material Width | According to profile size (typically 100–300 mm web width) |
| Forming Speed | 10 – 15 m/min |

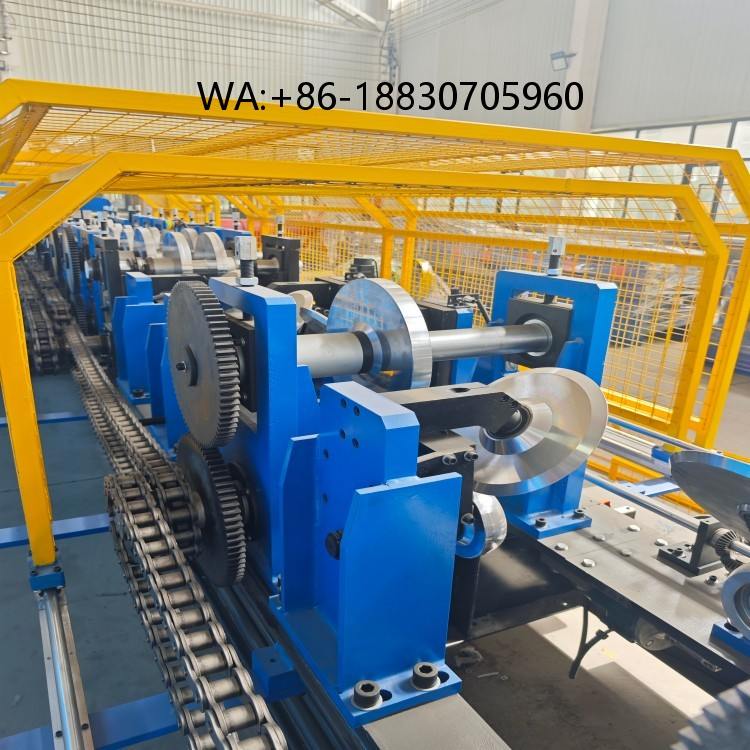

| Roller Stations | 12 – 18 stations |
| Shaft Diameter | 70 – 80 mm |
| Roller Material | GCr15 (high-grade bearing steel), heat treated & chrome coated |
| Main Motor Power | 15 – 22 kW |
| Hydraulic Power | 5.5 – 7.5 kW |
| Cutting Type | Hydraulic Post-cutting |
| Control System | PLC (Siemens / Delta) |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
| Machine Frame | Welded Steel Frame with Heavy-Duty Structure |
| Certifications |
CE, ISO9001 |

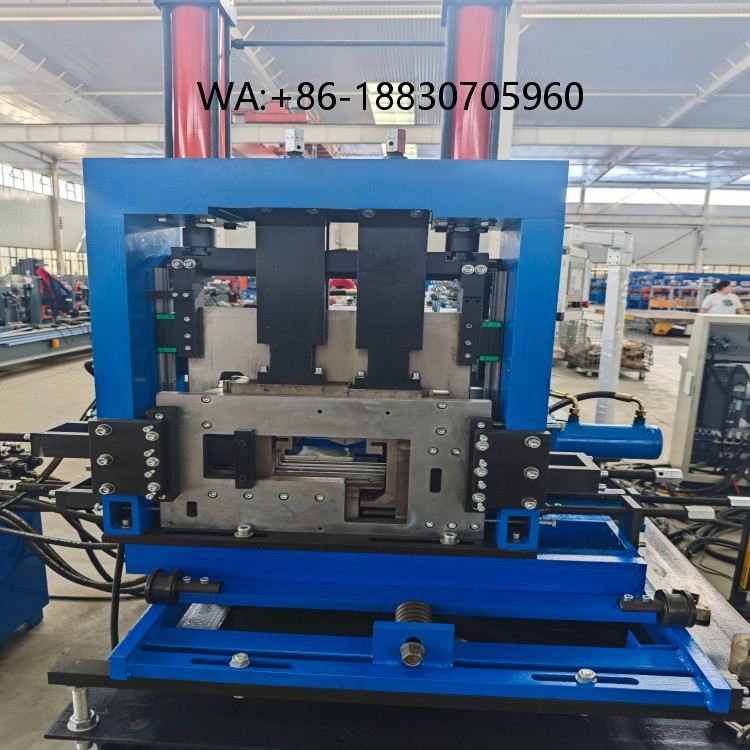

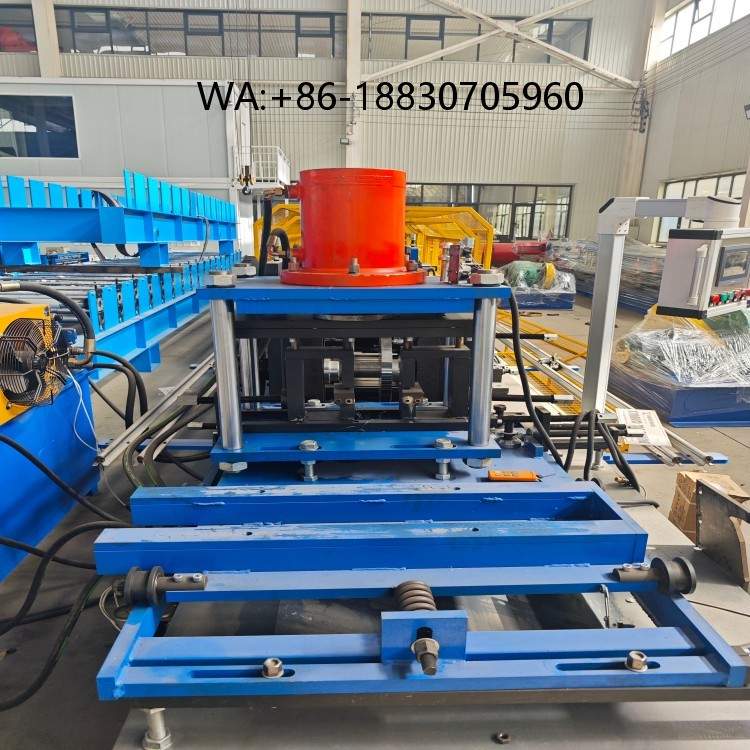

Precise shearing ensures that the finished product is smooth and burr-free

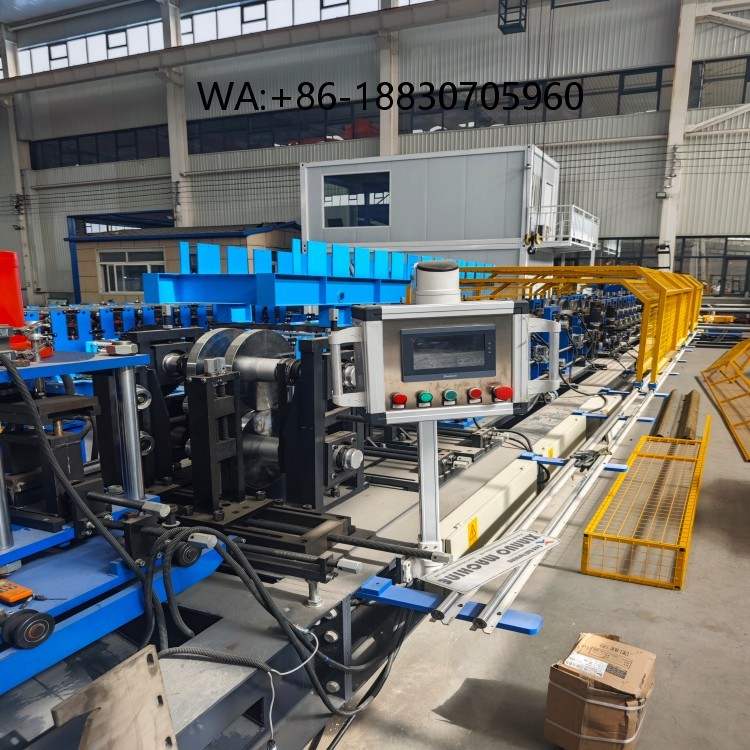

The PLC control system uses internationally renowned brand components with a long service life.
Our factory designs and programs it ourselves, making maintenance quick and easy
