| Item | Specification |
|---|---|
| Machine Type | Omega Purlin Roll Forming Machine |
| Raw Material | Galvanized Steel, Carbon Steel |
| Material Thickness | 1.5 – 3.0 mm |
| Forming Speed | 10 – 15 m/min |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Cutting |
| Certification | CE, ISO |

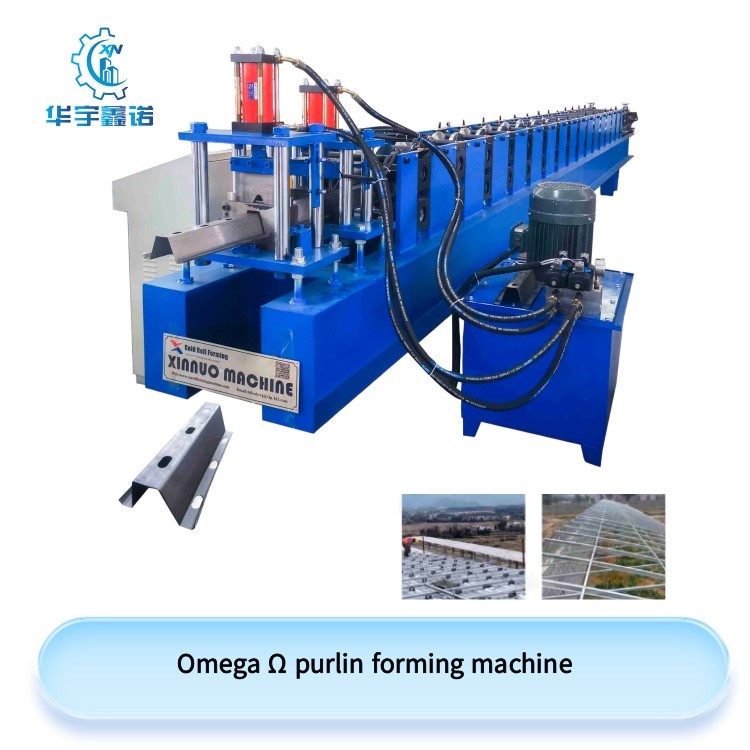

Our Omega purlin forming machine has the following features:
1. Fast forming speed
2. High forming accuracy
3. Long machine life
4. Easy to use and maintain
The main frame of the machine is thickened, strong and durable;
the rollers are multi-layer electroplated and not easy to wear
| Technical Item | Specification |
|---|---|
| Application | Production of Omega Shape Steel Purlins |
| Raw Material | Galvanized Steel (GI), Carbon Steel, High Strength Steel |
| Material Thickness | 1.5 – 3.0 mm |
| Material Width | According to profile design |
| Forming Speed | 10 – 15 m/min |
| Roller Stations | 12 – 18 stations |
| Shaft Diameter | 70 – 80 mm |
| Roller Material | GCr15, heat treated and hard chrome plated |
| Main Motor Power | 15 – 22 kW |
| Hydraulic Power | 5.5 – 7.5 kW |
| Cutting Type | Hydraulic Post-cutting |
| Control System | PLC (Siemens / Delta / Schneider options) |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
| Machine Frame | Welded Heavy-Duty Steel Frame |
| Certifications | CE, ISO9001 |

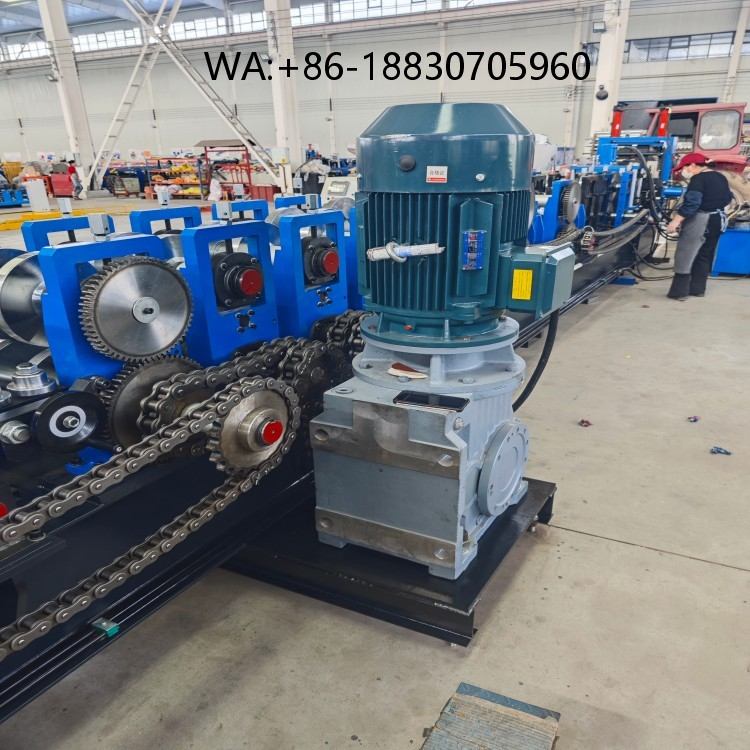

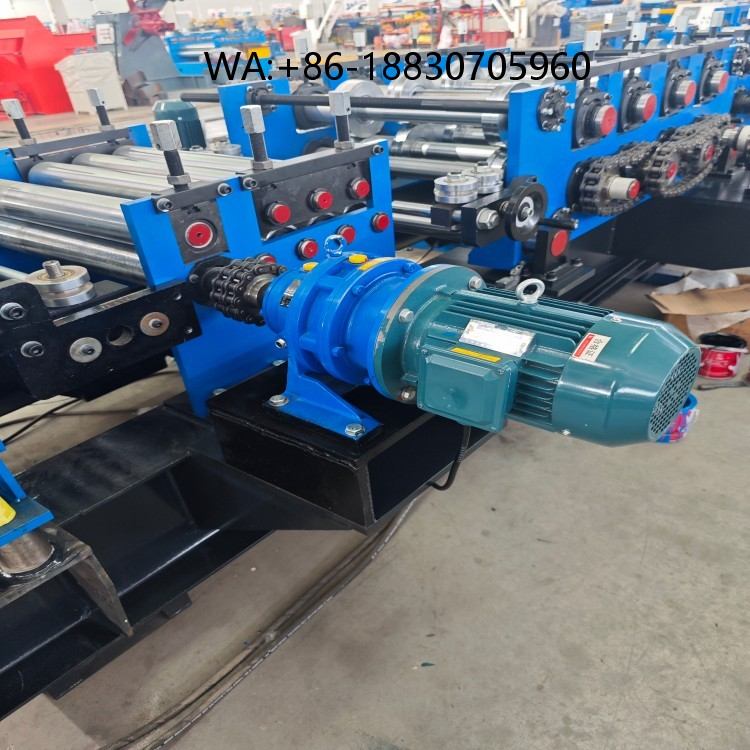

The motor has high power to ensure the normal operation of the machine

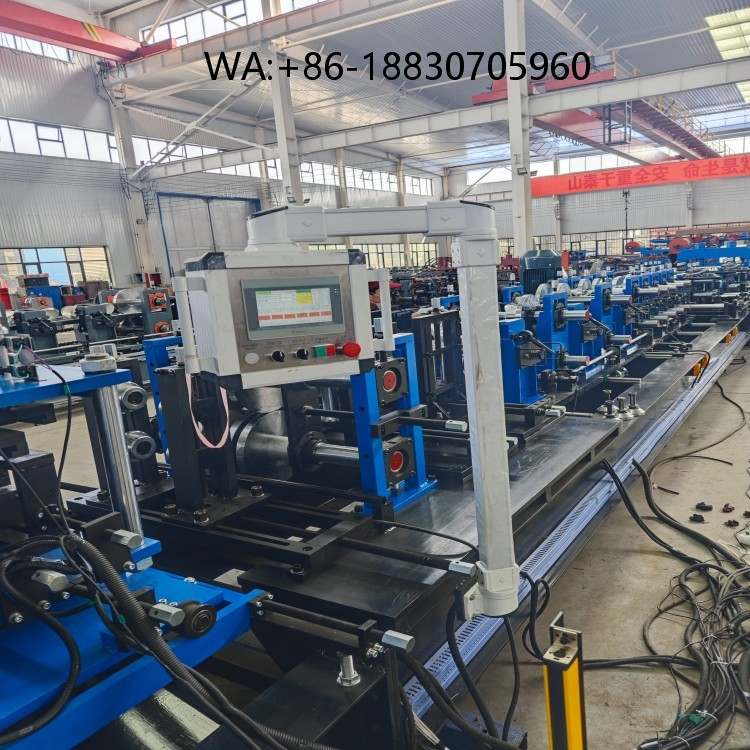

Mobile PLC control system, convenient to control the machine anytime and anywhere
