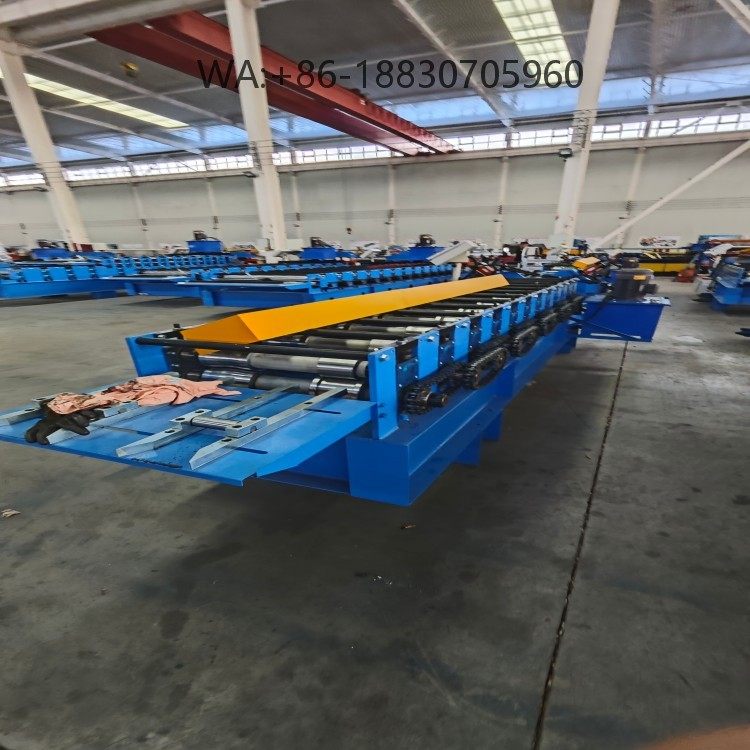

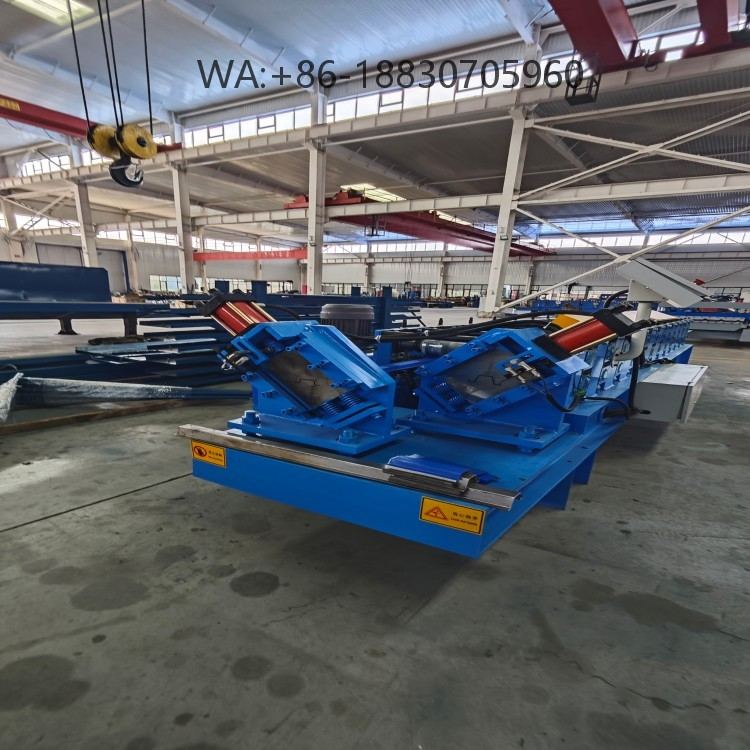

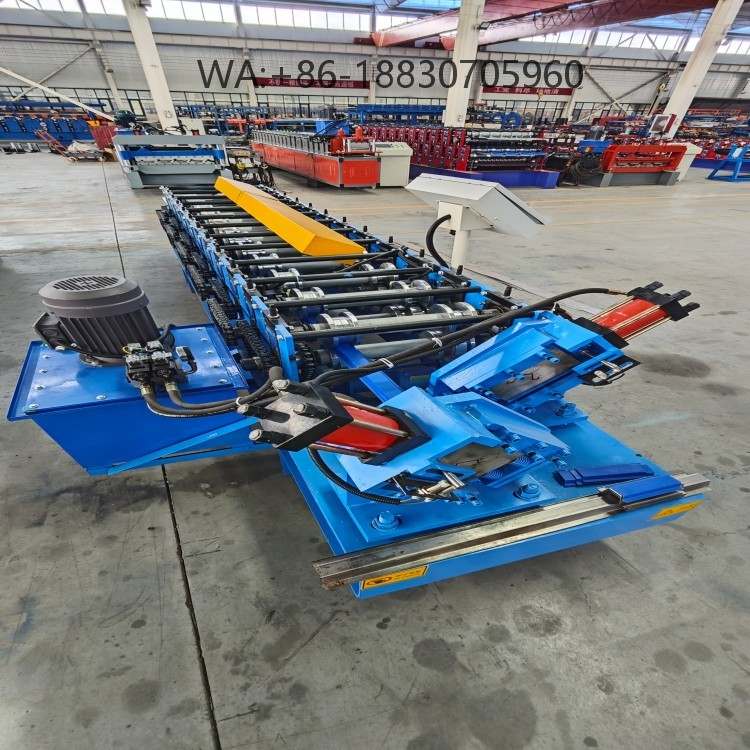

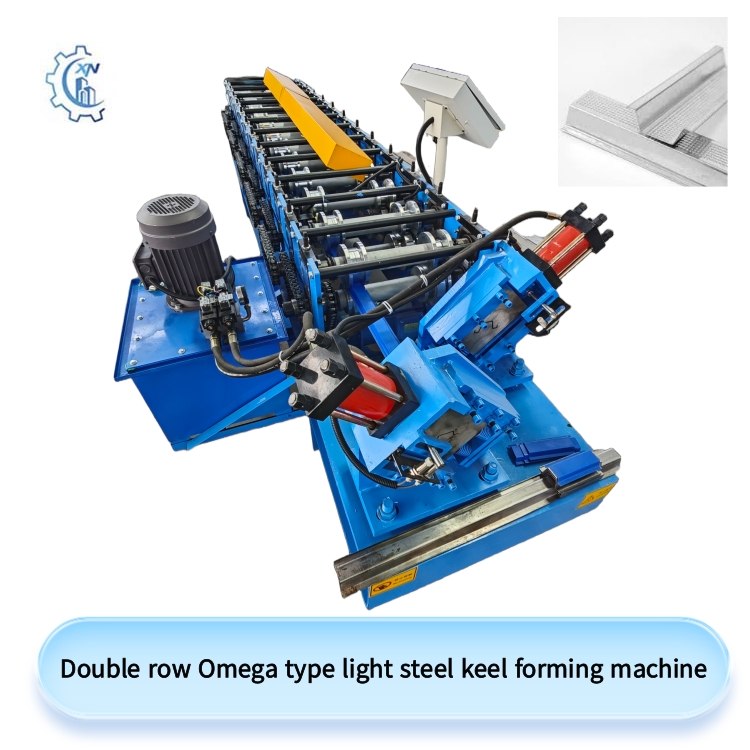

| Machine Name | Double Row Omega Type Keel Forming Machine |
| Profile Shape | Double Omega Type |
| Application | Ceiling and wall light steel frame system |
| Material | Galvanized Steel / GI Strip |
| Operation | Fully Automatic with PLC Control |
| Parameter | Specification |
| Raw Material Width | 80–250 mm per row |
| Finished Profile Height | 20–45 mm (customizable) |
| Material Thickness | 0.3–0.8 mm |
| Material Type | Galvanized Steel, Cold Rolled Steel |
| Forming Speed | 25–50 m/min |
| Roller Stations | 10–16 stations per row |
| Roller Material | Cr12 or GCr15 with hard chrome |

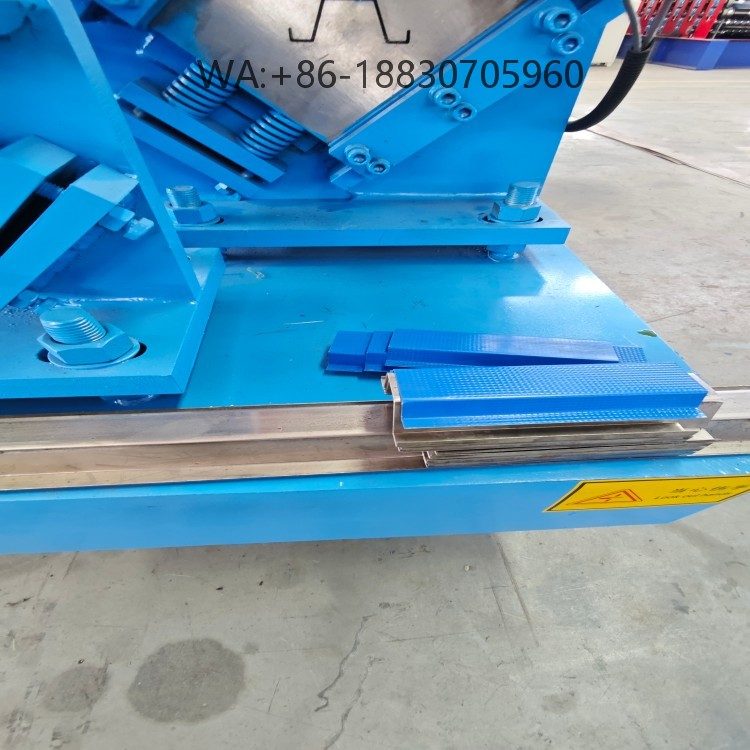

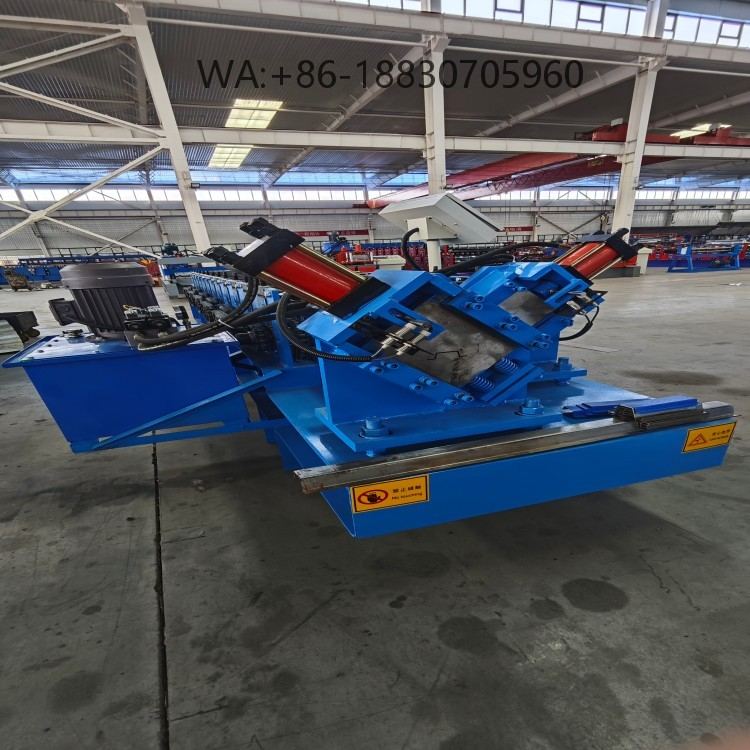

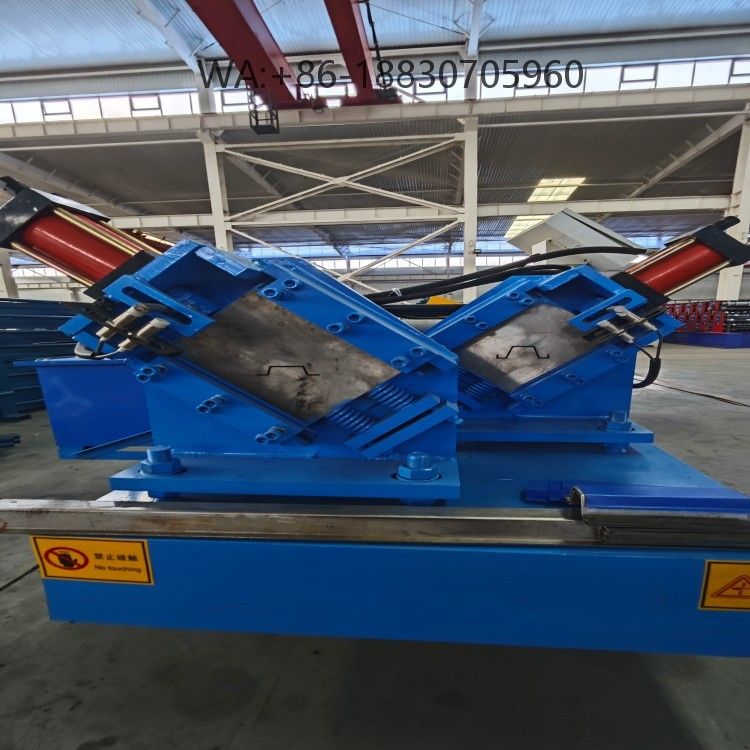

| Cutting System | Hydraulic cutting |

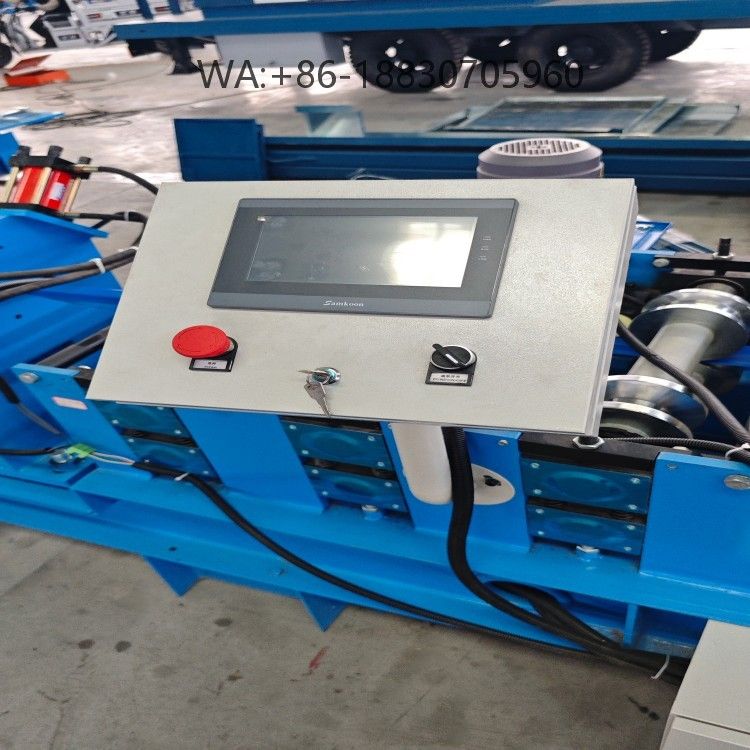

| Control System | PLC automatic (Siemens / Delta) |
| Power Supply | 380V / 50Hz / 3Ph (customizable) |

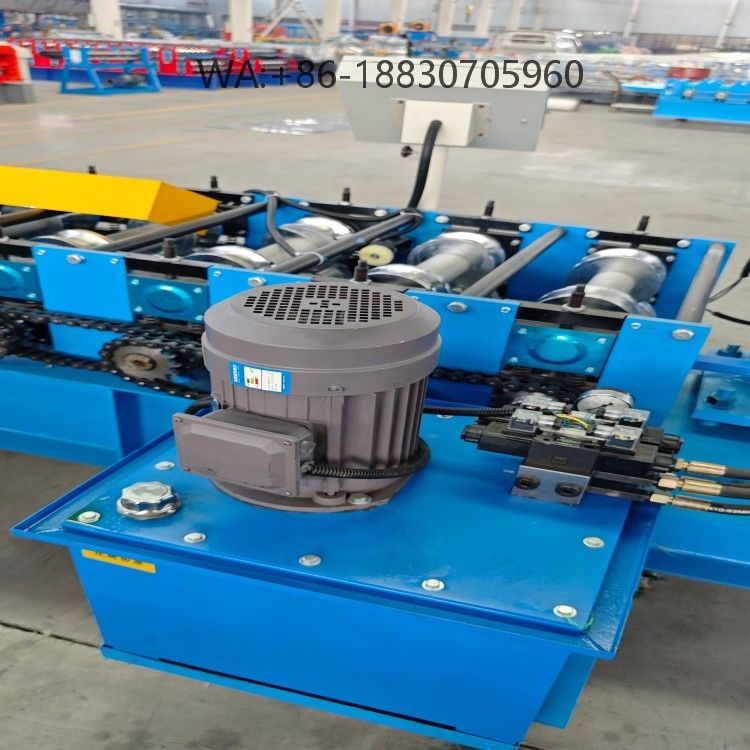

| Main Motor Power | 5.5–7.5 kW |
