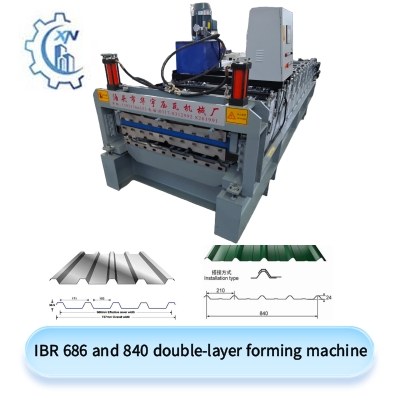

| Machine Name | IBR 686 and 840 Double-Layer Forming Machine |
| Application | Roof panel production, widely used in South Africa |
| Material | Galvanized steel, PPGI |
| Effective Width | 686 mm & 840 mm |
| Control System | PLC Automatic Control |

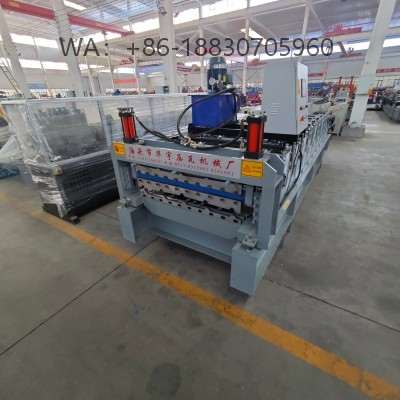

The IBR 686 and 840 double-layer forming machine is specially designed for South African roofing markets, offering two popular profiles in a single machine. It is suitable for galvanized steel, PPGI, and aluminum sheets with a thickness of 0.3–0.8 mm. The machine features hydraulic cutting for high precision, PLC automatic control, and a production speed of 8–15 m/min. With effective widths of 686 mm and 840 mm, it can produce panels that meet local building standards while saving factory space and cost. This model supports customization for different profiles, ensuring versatility and efficiency in roof panel production.
| Machine Name | IBR 686 and 840 Double-Layer Forming Machine |
| Applicable Material | Galvanized steel sheet, PPGI, Aluminum sheet |
| Material Thickness | 0.3–0.8 mm |
| Effective Width | 686 mm and 840 mm |
| Feeding Width | 914 mm / 1000 mm |

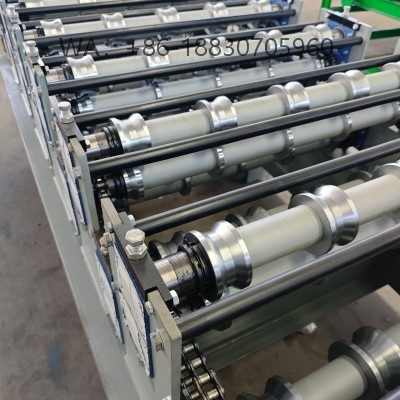

| Forming Stations | 14–18 stations (customizable) |
| Main Power | 5.5–7.5 kW |

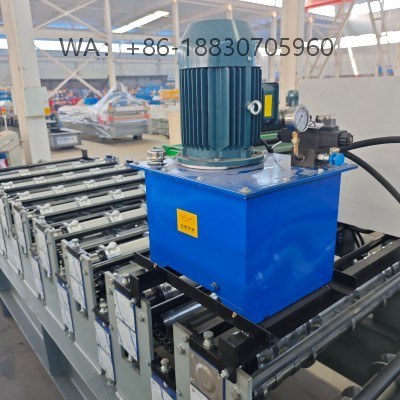

| Cutting Type | Hydraulic cutting, high precision |
| Control System | PLC automatic control with touch screen |
| Production Speed | 8–15 m/min |
| Power Supply | 380 V / 50 Hz / 3 Phase (customizable) |
| Machine Dimension | About 7.5 m × 1.5 m × 1.6 m |
| Customization | Machine can be customized to produce different profiles |
