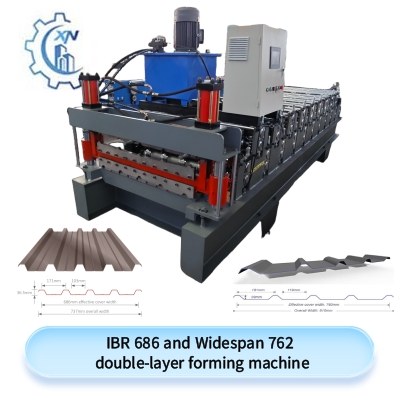

| Machine Name | IBR 686 and Widespan 762 Double-Layer Forming Machine |
| Application | Dual production for IBR 686 and Widespan 762 roof panels |
| Material | Galvanized steel, PPGI, Aluminum |
| Effective Width | IBR 686 mm & Widespan 762 mm |
| Control System | PLC automatic control with touch screen |

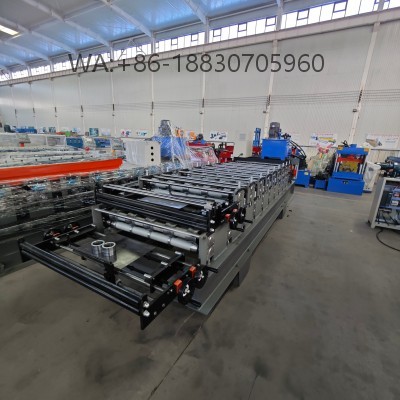

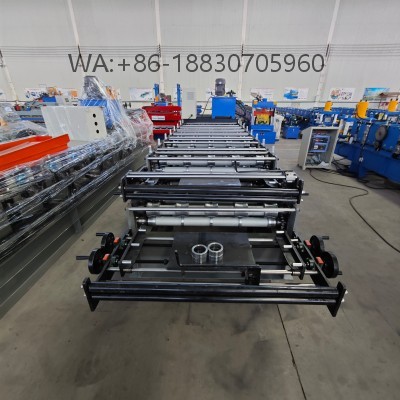

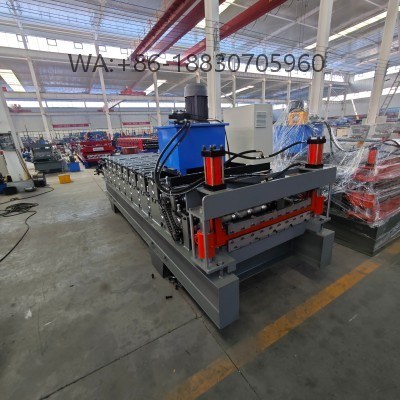

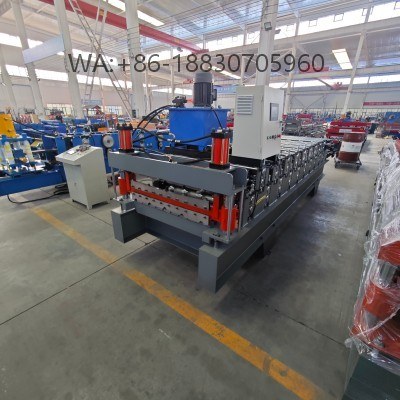

The IBR 686 and Widespan 762 double-layer forming machine is designed to produce two of the most popular roof panel profiles in Africa with one compact system. It processes galvanized steel, color-coated sheet, or aluminum with a thickness range of 0.3–0.8 mm, ensuring strong and long-lasting panels. With effective widths of 686 mm for IBR and 762 mm for Widespan, it meets diverse market demands for residential, industrial, and commercial projects. The machine adopts hydraulic cutting for smooth edges, PLC control with touch screen for precision, and offers adjustable speed from 15–45 m/min to fit both small-scale and high-volume production. The dual-layer design saves factory space and investment while maintaining top-quality output. Customization options are available for coil width, profiles, power system, and production speed, making it a versatile solution for roofing manufacturers.
| Machine Name | IBR 686 and Widespan 762 Double-Layer Forming Machine |
| Applicable Material | Galvanized steel, pre-painted sheet, aluminum (durable and widely available) |
| Material Thickness | 0.3 – 0.8 mm (covers both light roofing and heavy-duty projects) |
| Effective Width | IBR: 686 mm; Widespan: 762 mm (two most popular African profiles in one machine) |
| Feeding Width | Up to 1250 mm (compatible with common coil sizes) |

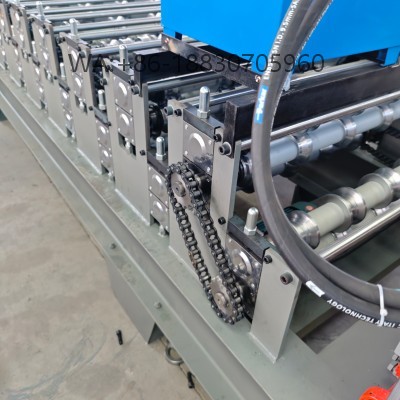

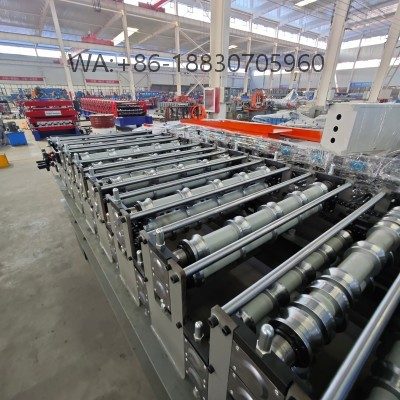

| Forming Stations | 18–24 stations (ensures stable forming and long lifespan) |
| Main Power | 7.5 – 15 kW (energy-efficient but strong enough for heavy coils) |

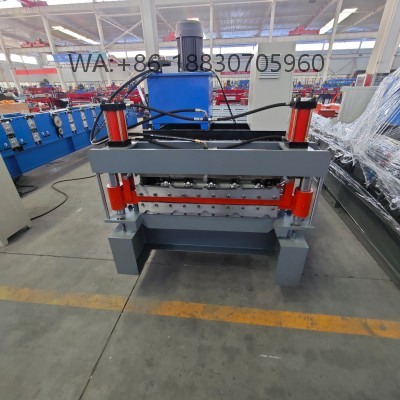

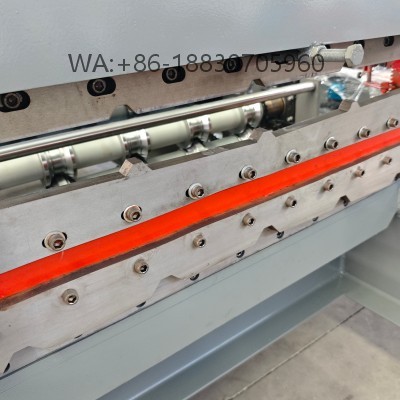

| Cutting Type | Hydraulic cutting (neat edges, reduces material waste) |
| Control System | PLC with touch screen (precise length setting, easy to use) |
| Production Speed | 15 – 45 m/min (low, medium, and high-speed options available; customizable) |
| Power Supply | 380 V / 50 Hz / 3 Phase (adjustable to local requirement) |
| Machine Dimension | Approx. 8500 × 1650 × 1600 mm (space-saving dual-layer design) |
| Customization | Profiles, speed, and power system can be customized to meet client needs |
