| Model | IBR 980 Panel Forming Machine |
| Material Thickness | 0.3 – 0.8 mm |
| Coil Width | 1220 mm (or customized) |
| Production Speed | 8 – 15 m/min (customizable) |
| Control System | PLC Automatic |

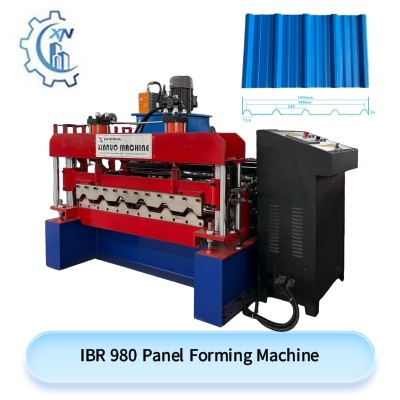

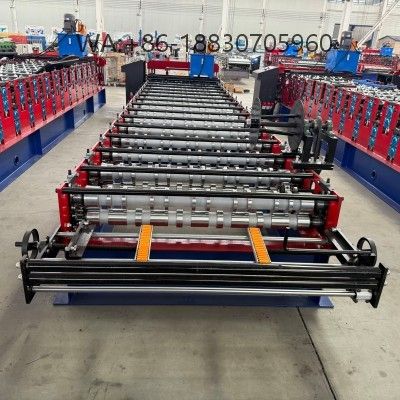

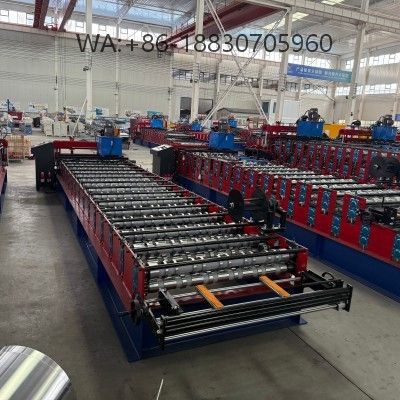

The IBR 980 panel forming machine is designed for producing large-span roof panels widely used in industrial and commercial buildings.

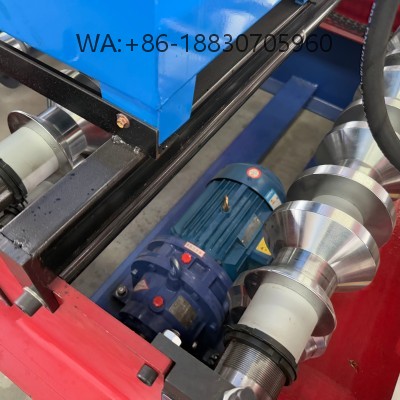

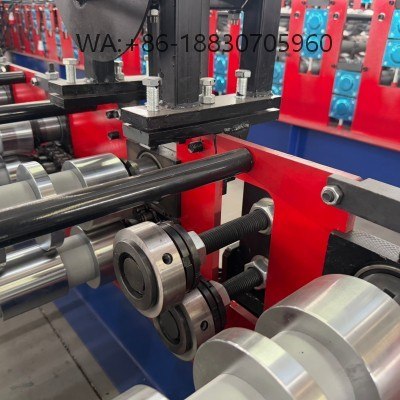

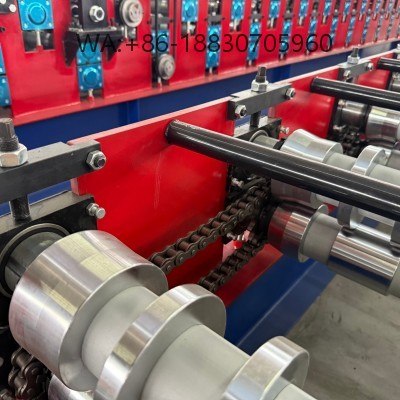

Its forming rollers are made of high-quality steel, ensuring accuracy and a long service life.
| Model | IBR 980 Trapezoidal Roof Panel Roll Forming Machine |
| Material | Galvanized Steel, PPGI, Aluminum (0.3 – 0.8 mm) |
| Effective Panel Width | 980 mm |
| Production Speed | 8 – 15 m/min (normal) | Up to 20 m/min (high speed) | Custom speed available |
| Roller Stations | 16 – 22 stations depending on thickness |
| Roller Material | GCr15 steel, heat-treated and hard chrome coated |

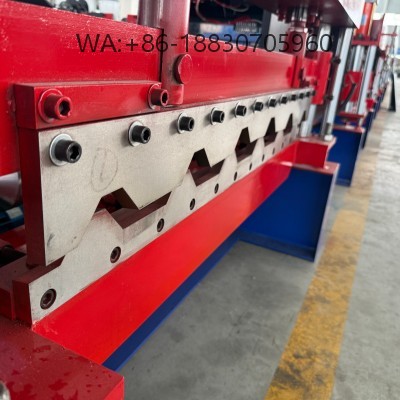

| Cutting System | Hydraulic cutting, high precision |
| Control | PLC with touch screen, fully automatic |
| Customization | Other panel profiles and speeds can be customized based on client requirements. |
With adjustable forming speed ranging from low to high, the machine can meet different production requirements.
Its advanced control system allows operators to manage the process easily, reducing labor costs and improving efficiency.
This machine combines durability, precision, and adaptability, making it a reliable solution for customers seeking consistent quality in roof panel production.
