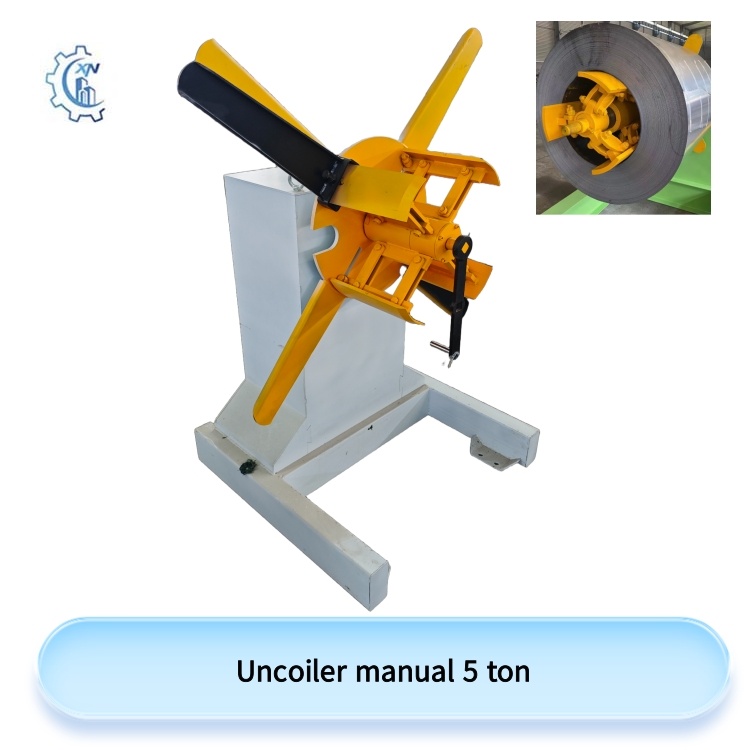

| Product Name | Manual Uncoiler 5 Ton |
| Function | Supports and releases steel coils manually |
| Capacity | Up to 5 tons |
| Operation | Manual expansion and rotation |
Manual decoilers are an integral part of standard forming machine production lines. Our factory's manual decoilers are affordable and can meet customers' production needs.
This 5-ton manual decoiler is suitable for most coils weighing 5 tons or less, offering the widest range of applications. We can also design decoilers in various tonnages to meet customers' diverse needs.
| Parameter | Specification |
| Loading Capacity | Max. 5000 kg (5 tons) |
| Coil Inner Diameter | 450 – 550 mm (adjustable) |
| Coil Outer Diameter | Max. 1200 mm |
| Coil Width | Up to 1250 mm |
| Expansion Type | Manual screw expansion |
| Support Type | Heavy-duty welded base |
| Rotation Mode | Manual rotation via brake wheel |
| Machine Weight | ~1000 – 1200 kg |
This machine is made of high quality steel and materials, and the frame is strong and durable.
The design of this machine takes into account the particularity of manual uncoiler and adopts various methods to reduce the resistance during operation, which further saves labor and human power.

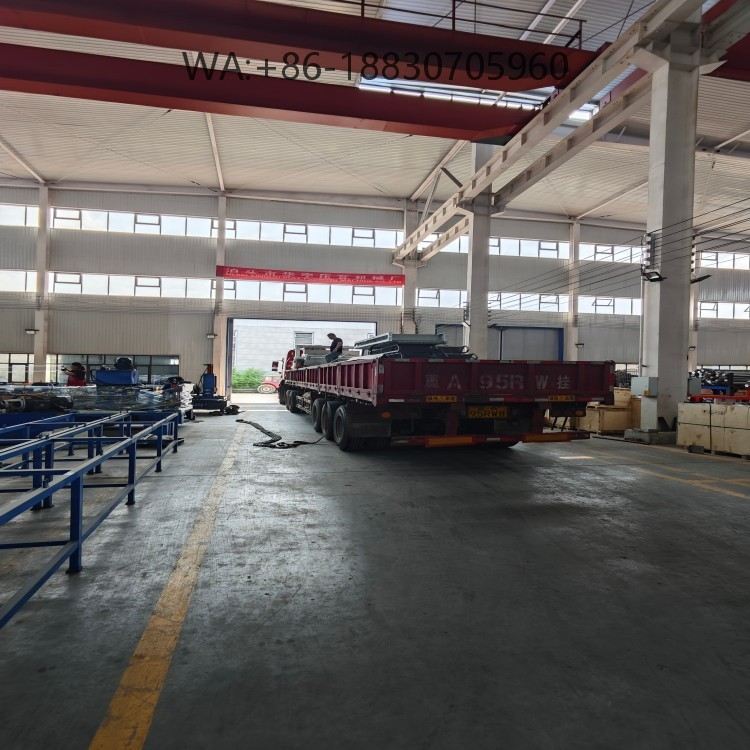

Our factory ships products to customers in various regions daily.
Contact us for complete information about our cold forming machines.
