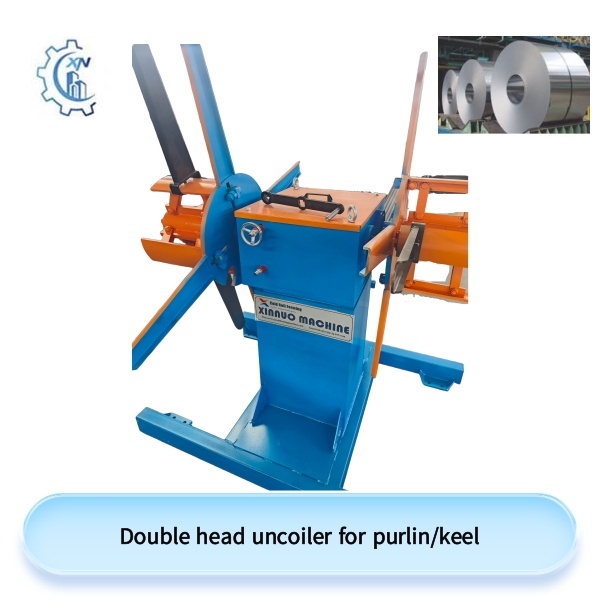

| Double Head Uncoiler for Purlin / Keel | |
| Uncoiling Capacity | 2 × 3 Tons |
| Applicable Material | Steel coil |
| Application | C/Z/U purlin or light keel line |
| Other models available upon request. | |

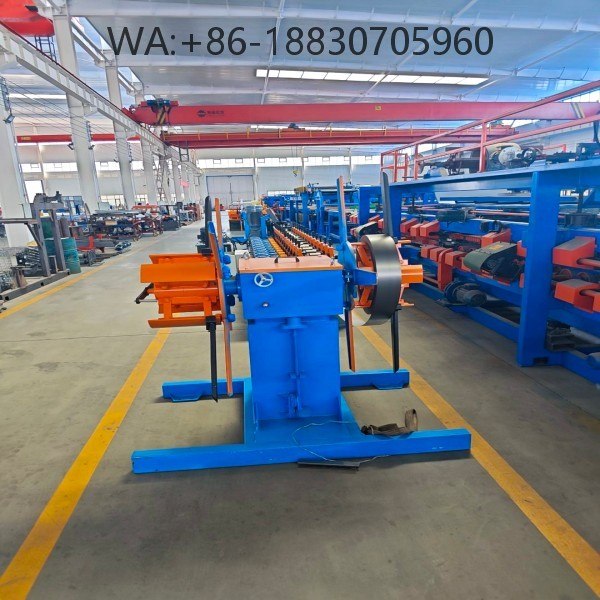

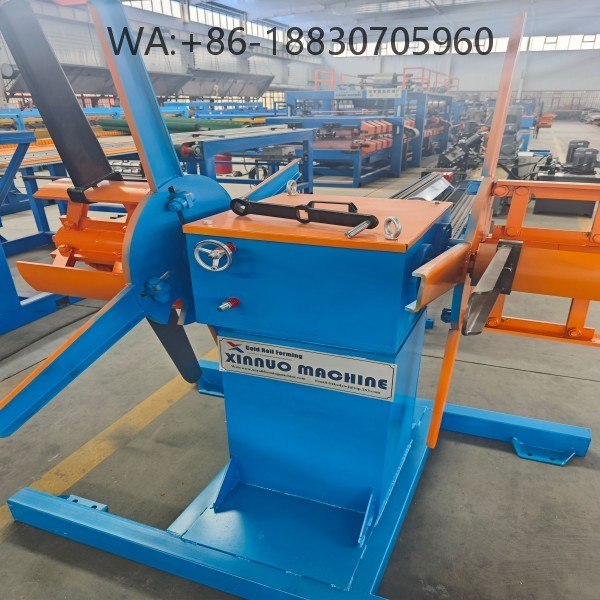

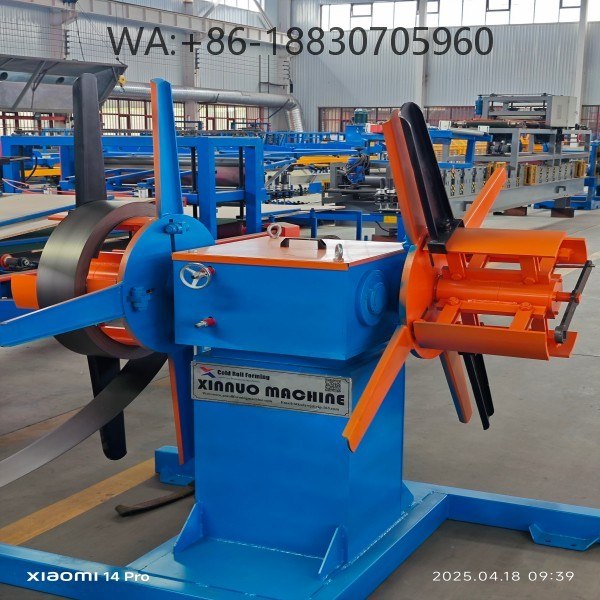

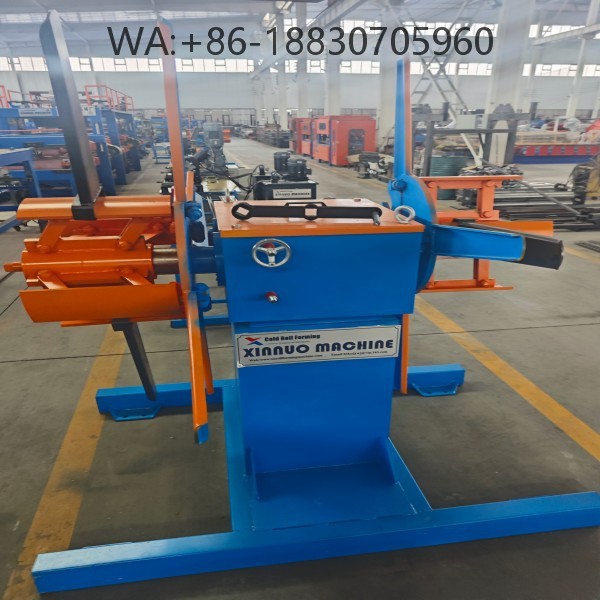

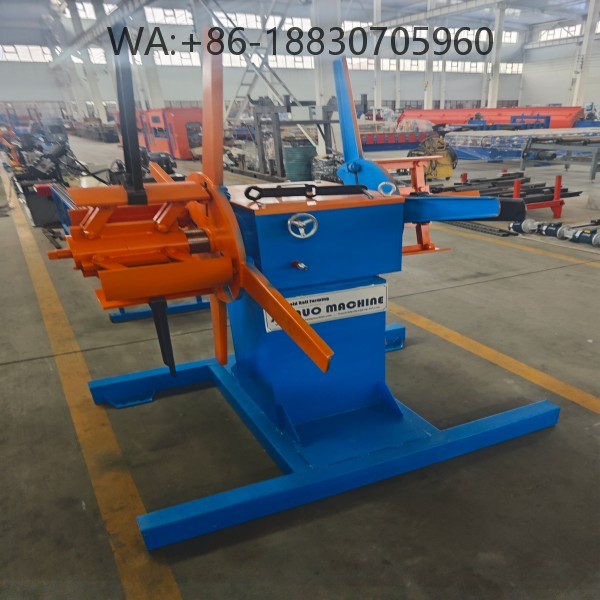

The biggest advantage of the double-head uncoiler compared to ordinary uncoilers is that you can choose which side to switch to according to the changes in the use of the machine and the scene.
The biggest advantage of Xinnuo's double-head uncoiler is that it can balance the weight of the machine by considering the different sizes of coils on both sides, thereby avoiding the problem of one side being too heavy.
| Technical Parameters | |
| Max Capacity per Side | 3 Tons × 2 |
| Coil Width Range | 50 – 600 mm |
| Material Thickness | 0.3 – 2.0 mm |
| Rotation Mode | Manual or Motor-driven |
| Coil Inner Diameter | 450 – 530 mm (adjustable) |
| Structure Type | Rotary frame, dual shaft support |
| Uncoiling Speed | 0 – 15 m/min (adjustable) |
| We can customize double-head uncoilers with other capacities and features as needed. | |
The materials used on both sides of the machine are of the same high quality.

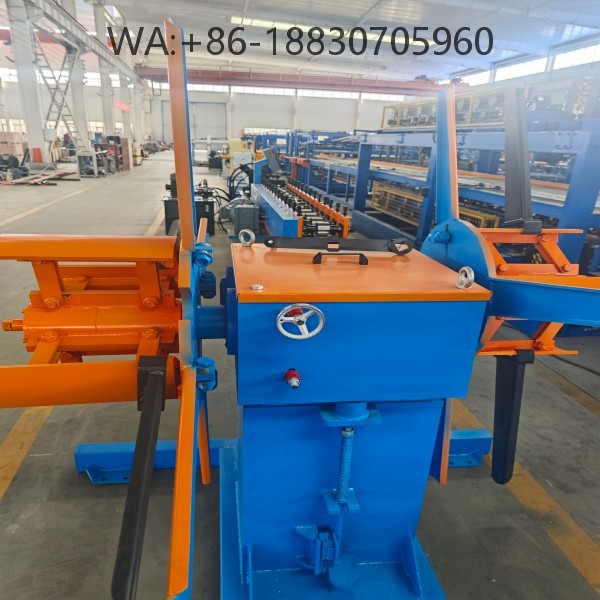

The switch is at the bottom of the back of the machine. Just step on it to rotate freely, and release it to lock it. It is convenient and fast, saving physical strength and time, and improving operation efficiency.
The huge base ensures the stability of the uncoiler.
