| Item | Description |
|---|---|
| Machine Type | Decoiler / Uncoiling Machine |
| Coil Inner Diameter | 450–550 mm |
| Coil Outer Diameter | Max. 1200 mm |
| Coil Width | Max. 1250 mm |
| Material Thickness | 0.3 – 3.0 mm |
| Max Coil Weight | 5 – 10 tons |
| Operation | Manual / Hydraulic / Motorized |
| Application | For steel coil uncoiling |

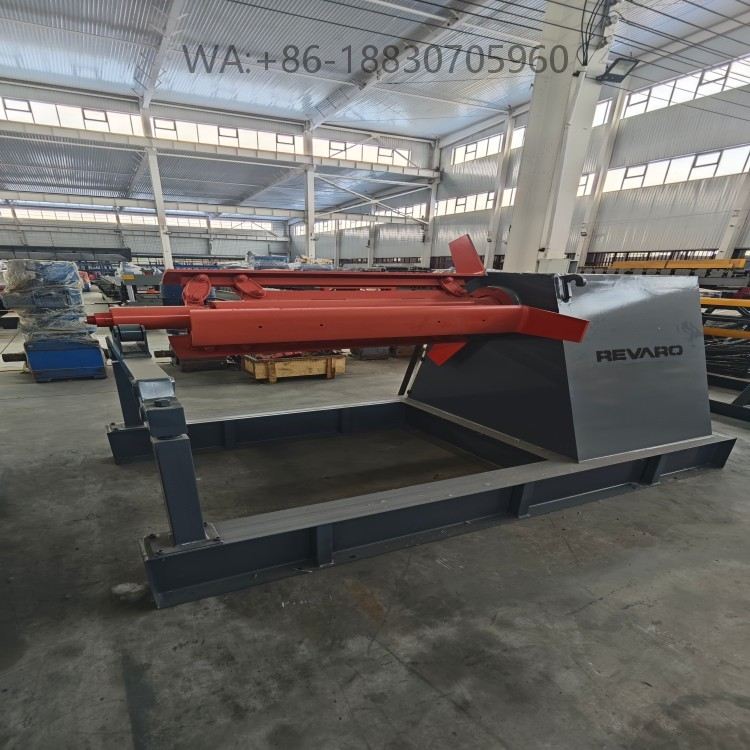

The uncoiler is the first part of the roof panel forming machine production line.

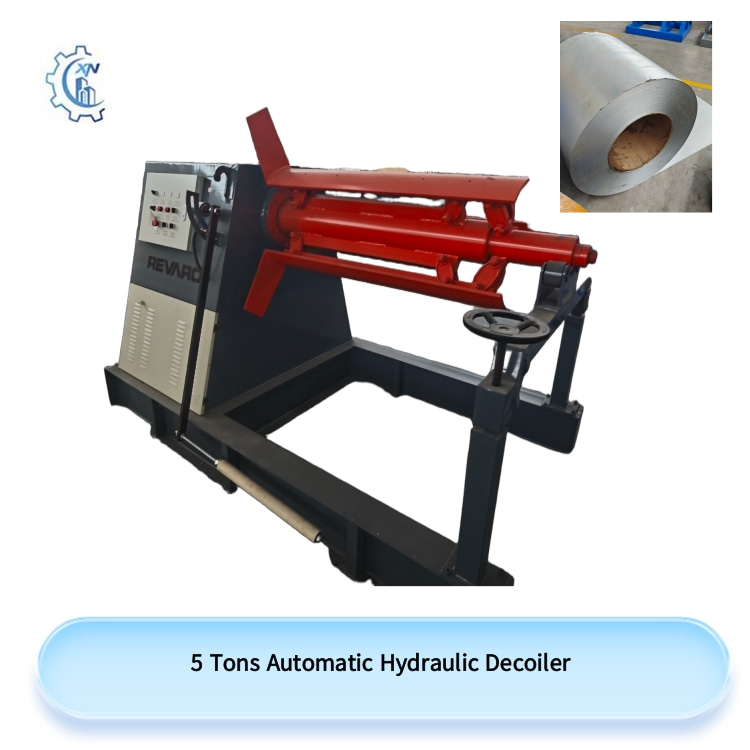

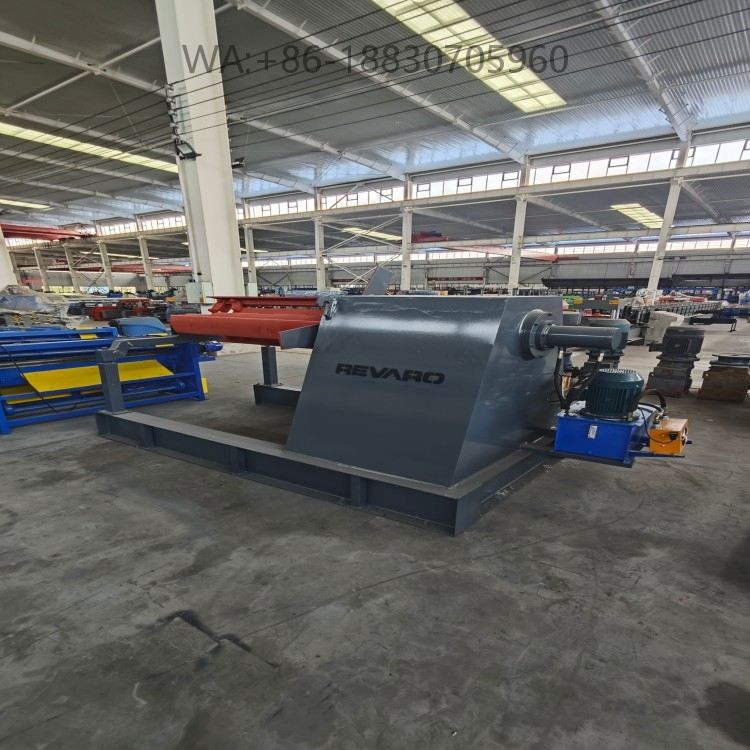

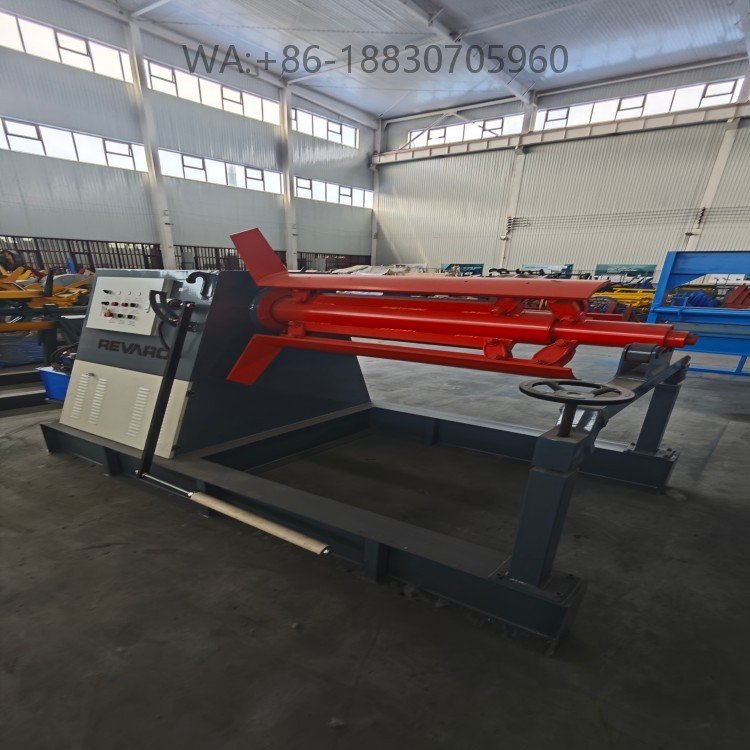

Our 5-ton fully automatic hydraulic uncoiler can realize hydraulic uncoiler and hydraulic tensioner.
The running speed can be adjusted to suit the forming speed of the machine,
and it can be applied to our self-developed PLC system to adjust the speed very conveniently.
| Parameter | Specification |
|---|---|
| Machine Name | Steel Coil Decoiler Machine |
| Material Type | Galvanized Steel, PPGI, Carbon Steel |
| Coil Inner Diameter | 450–550 mm (Adjustable) |
| Coil Outer Diameter | ≤1200 mm |
| Coil Width | 300–1250 mm |
| Material Thickness | 0.3 – 3.0 mm |
| Max Loading Capacity | 5000 – 10000 kg |
| Drive Method | Manual / Hydraulic / Motorized |
| Power Supply | 3 kW (for motorized type) |
| Hydraulic Power | 3 kW (if hydraulic model) |
| Tension Control | Optional with pneumatic brake or clutch |
| Application | Used in roll forming line for coil feeding |

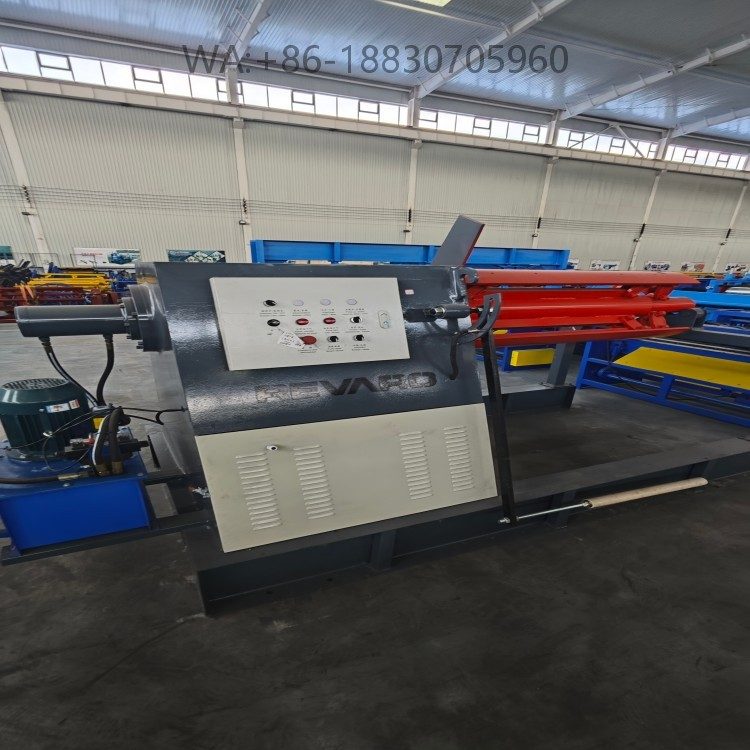

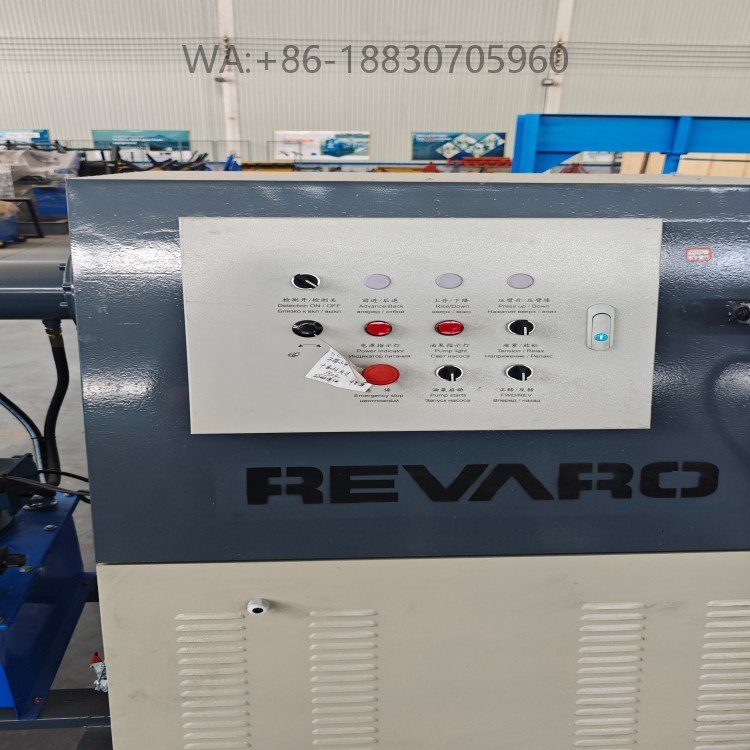

| Operation Control |
Foot pedal / control cabinet |
The language and functions can be customized according to customer requirements.
The machine supports forward and reverse rotation.
