| Key Features | Equipment Standard |
|---|---|
| Supported Profiles | C Purlins, Z Purlins, U Channels |
| Automation Level | Fully Automatic Flipping & Stacking |
| Max. Profile Length | Up to 12,000 mm (Customizable) |
| Gripping Mechanism | Heavy-duty Electromagnetic or Mechanical Arms |
| Control Architecture | PLC Integrated System with Touch HMI |

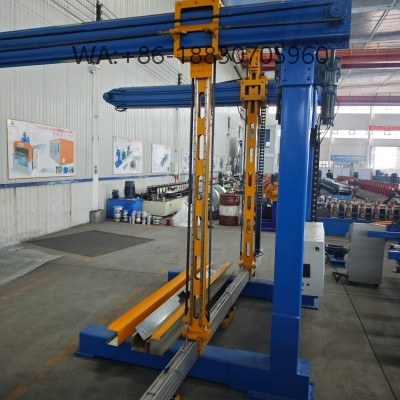

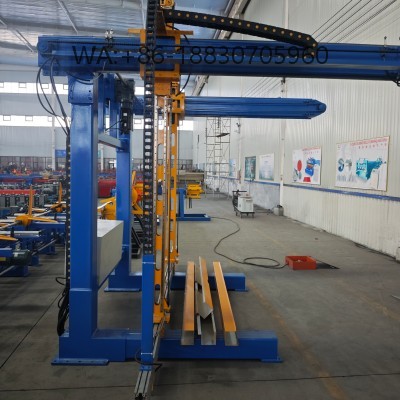

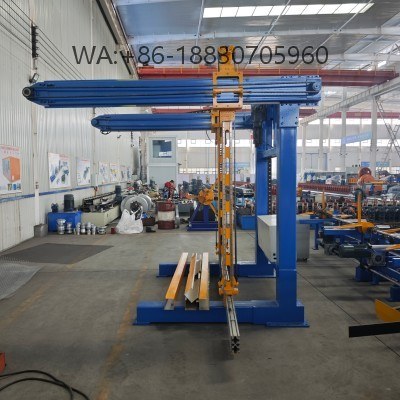

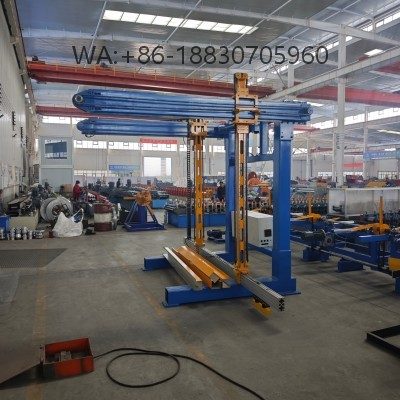

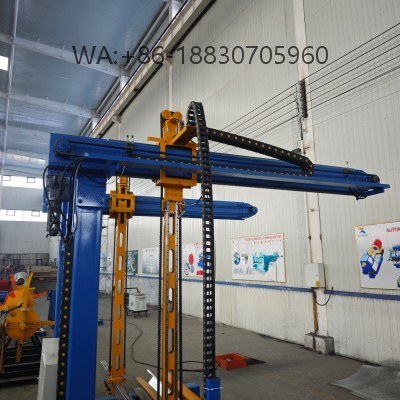

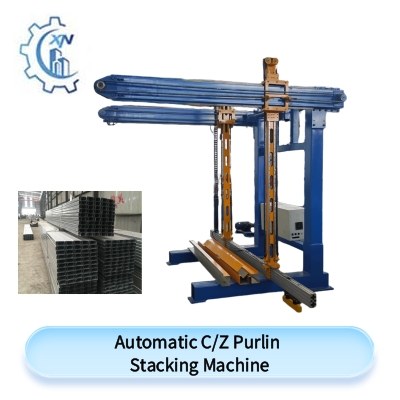

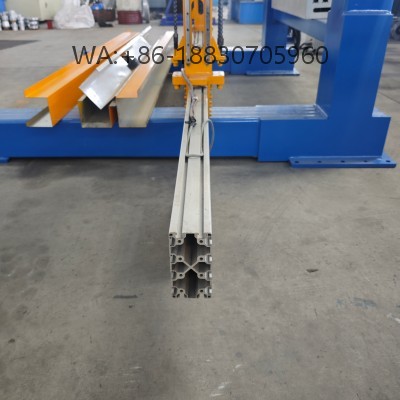

Eliminate heavy manual labor and post-production bottlenecks in your steel framing facility with our cutting-edge purlin stacker. Engineered to automate the neat collection and structural layering of heavy-gauge profiles, this system directly integrates behind your high-speed roll forming machinery. Implementing a reliable purlin stacker ensures continuous manufacturing velocity without risking operational slowdowns.
| Technical Specifications | Detailed Value / Range |
|---|---|
| Material Thickness Capacity | 1.5 mm - 3.5 mm Heavy Duty Steel |
| Purlin Width Range | 80 mm - 300 mm |
| Purlin Flange Height | 30 mm - 100 mm |
| Max Stack Height Capacity | 800 mm (Including pallet support) |
| Maximum Lifting Weight | Up to 250 kg per single transfer cycle |
| Air Supply Pressure | 0.5 MPa - 0.7 MPa |
| System Total Power | Approx. 11.0 kW to 15.0 kW |
| Voltage Customization | 220V / 380V / 440V, 50Hz/60Hz, 3 Phase |
Designed for rugged industrial environments, the automated purlin stacker seamlessly syncs with various profile sizes, adapting dynamically to shifting roll former outputs. The heavy-duty mechanical frame handles rapid cycle times while treating delicate galvanized coatings with extreme care. This specialized handling eliminates surface scratches and preserves material aesthetics perfectly during sorting.

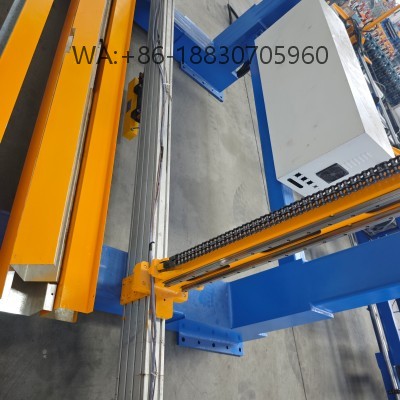

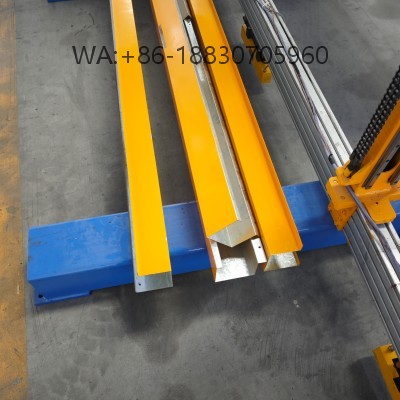

Featuring an intelligent PLC interface, this responsive purlin stacker allows operators to pre-program custom configuration layouts, stack heights, and bundling orientation. The smart software orchestrates precise arm movements to automatically flip alternating profiles, facilitating dense, nested packaging for optimal transport stability. Transitioning between C and Z channel programs requires minimal dashboard adjustment.
Safety and workspace optimization are drastically improved when replacing traditional manual handling with an automated purlin stacker. It mitigates workplace injury hazards while dramatically slashing overhead labor costs. Built with industrial-grade mechanical components and premium structural steel, our durable purlin stacker guarantees extended operational uptime and low routine maintenance overhead.
As a leading developer of end-of-line manufacturing automation, we deliver custom configurations to suit your plant's exact geometric layout and volume targets. Do not let inefficient manual sorting compromise your factory's true throughput potential. Contact our engineering consultants today for a factory-direct quote on this premium purlin stacker and scale your logistics.
