| Key Features | Equipment Standard |
|---|---|
| Supported Profiles | C Purlins, Z Purlins, U Channels (Heavy Gauge) |
| Automation Level | Fully Automated 180° Flipping, Moving & Stacking |
| Control Architecture | Integrated PLC System with Intelligent Touch HMI |
| Primary Function | Interlocking Nested Bundling for Space-Saving Logistics |

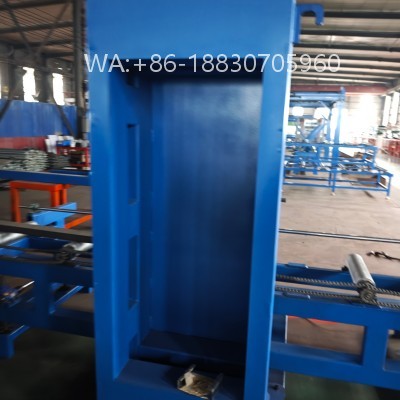

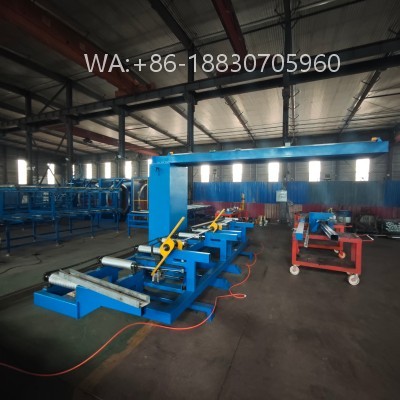

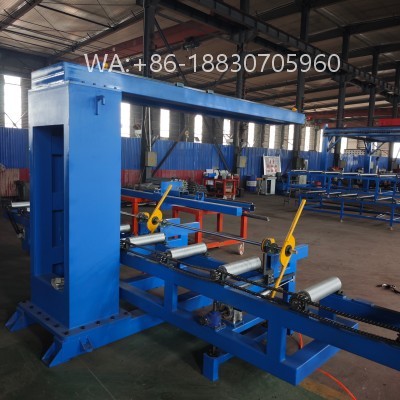

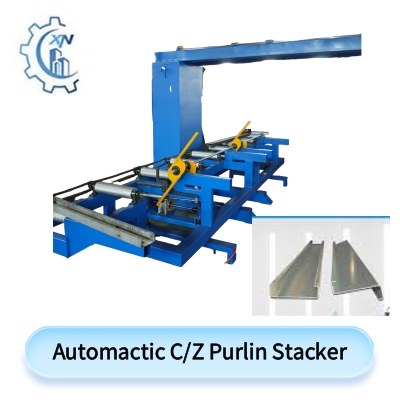

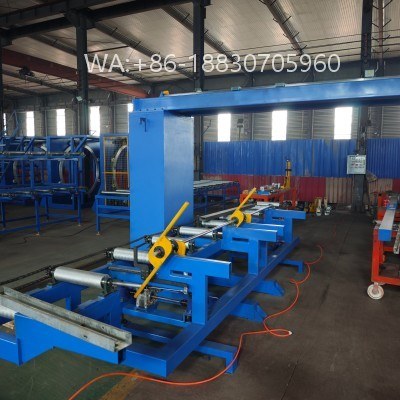

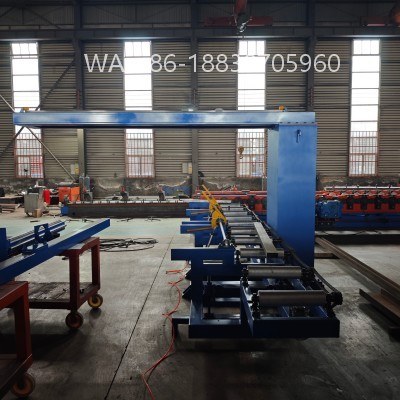

Eliminate labor-intensive handling bottlenecks and safeguard your workforce at the exit end of high-speed roll forming lines with our cutting-edge Automactic-CZ-Purlin-Stacker. Engineered to handle heavy-gauge structural profiles with extreme precision, this specialized machine automates the entire sorting, turning, and layering process. As shown in the operational layout of Automactic-CZ-Purlin-Stacker-3.jpg, this system integrates right behind your cutting shear to ensure a seamless transition from individual profiles to perfectly squared bundles.
| Technical Specifications | Detailed Value / Range |
|---|---|
| Profile Web Width Range | 80 mm - 300 mm / 350 mm |
| Flange Height Capacity | 30 mm - 100 mm |
| Material Thickness Capacity | 1.5 mm - 3.5 mm High-Strength Structural Steel |
| Maximum Profile Length | Up to 12,000 mm (Custom lengths available) |
| Line Working Speed | Fully synchronized to match 25-35 m/min roll formers |
| Pneumatic Working Pressure | 0.5 MPa - 0.7 MPa |
| Total Installed Power | Approx. 7.5 kW - 11.0 kW (Depending on layout) |
| Operating System Options | 380V/50Hz/3-Phase (Customizable to local plant grids) |

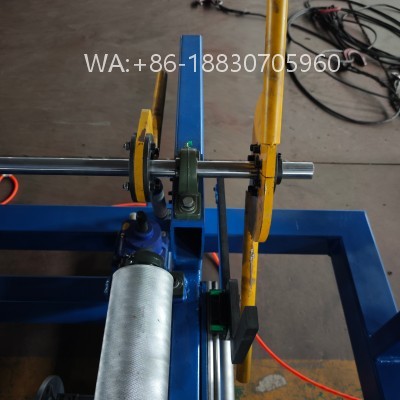

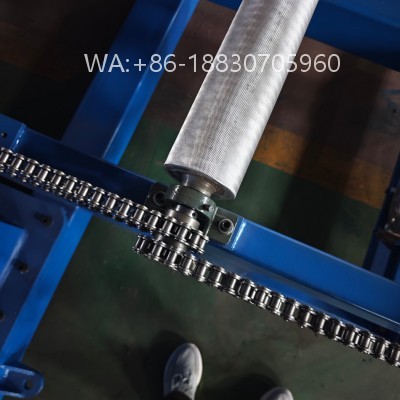

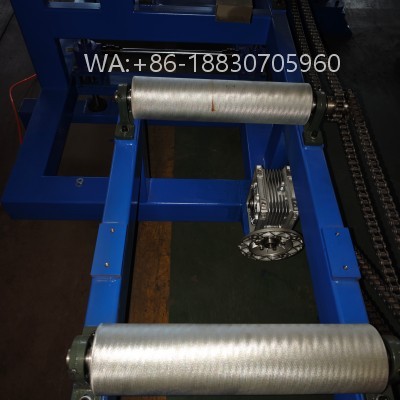

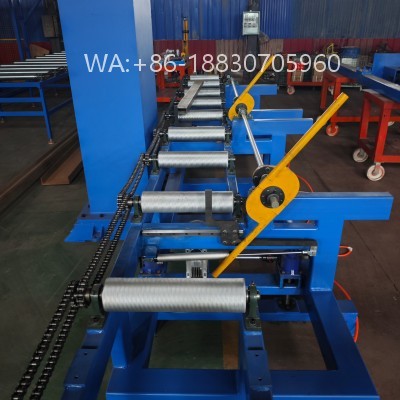

Mechanical precision is fundamental to the durability of this handling solution. The rugged flipping arm framework and synchronous transport rollers are designed to manage rapid cycle times while treating zinc-coated and pre-painted steel surfaces with care. Implementing our responsive Automactic-CZ-Purlin-Stacker eliminates surface scratching or flange distortion commonly caused by manual handling, keeping your premium galvanized finishes completely intact during transit packaging.
Driven by an intelligent central PLC automation interface, this advanced Automactic-CZ-Purlin-Stacker gives operators complete control over configuration parameters. Through the interactive digital touchscreen dashboard, you can quickly pre-program precise layer counts, target stack heights, and alternating 180-degree flipping configurations. This mechanical rotation enables tight, space-saving interlocking (nesting) of C and Z purlins, drastically shrinking bundle volume for safer, more cost-effective shipping and warehousing logistics.
Replacing traditional manual off-bearing methods with a heavy-duty Automactic-CZ-Purlin-Stacker directly solves operational efficiency and safety concerns on your shop floor. It drastically cuts structural framing labor overhead while mitigating the injury hazards associated with manual stacking of long, heavy steel channels. Built using top-tier structural steel sections and premium industrial electronics, our packaging system delivers extended operational uptime with low routine maintenance needs.
As a dedicated developer of end-of-line industrial automation machinery, we can fully customize the footprint, power profile, and mechanical lengths of this stacking array to fit your factory's specific floor plan and throughput targets. Don't let slow manual sorting limit your high-speed roll former's true production potential. Contact our engineering consultants today for a factory-direct quote on this premium Automactic-CZ-Purlin-Stacker and upgrade your packing line.
