| Item | Description |
|---|---|
| Equipment Name | 6m Sheet Stacker |
| Application | Automatic stacking of metal sheets |
| Max Sheet Length | 6000 mm |
| Operation Mode | Pneumatic / Hydraulic |
| Control System | PLC automatic control |
| Compatible Line | Roll forming / shearing lines |
| Structure Type | Lifting frame / Sliding bed |
| Stacking Style | Flat or layered stacking |

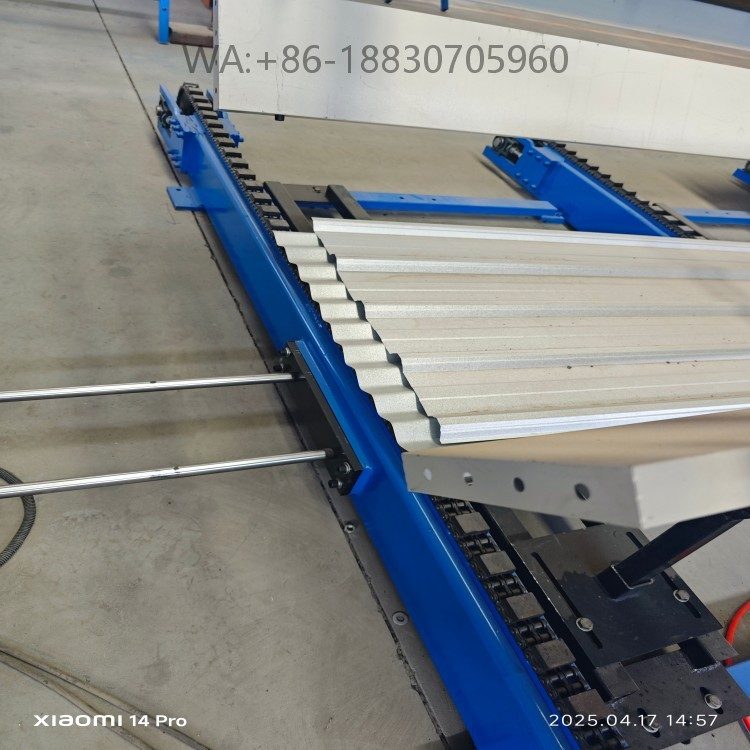

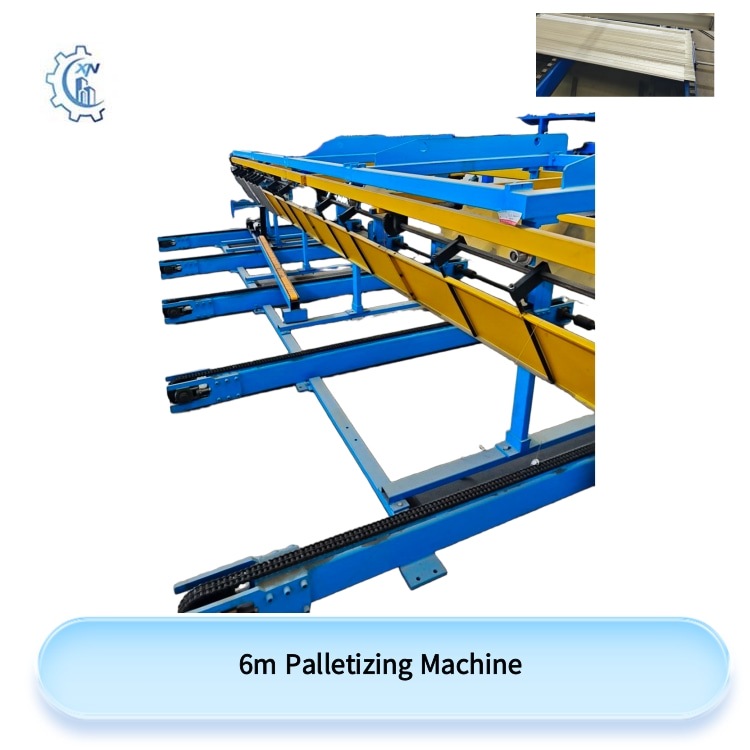

The palletizer is a supporting machine for the sheet metal forming machine.

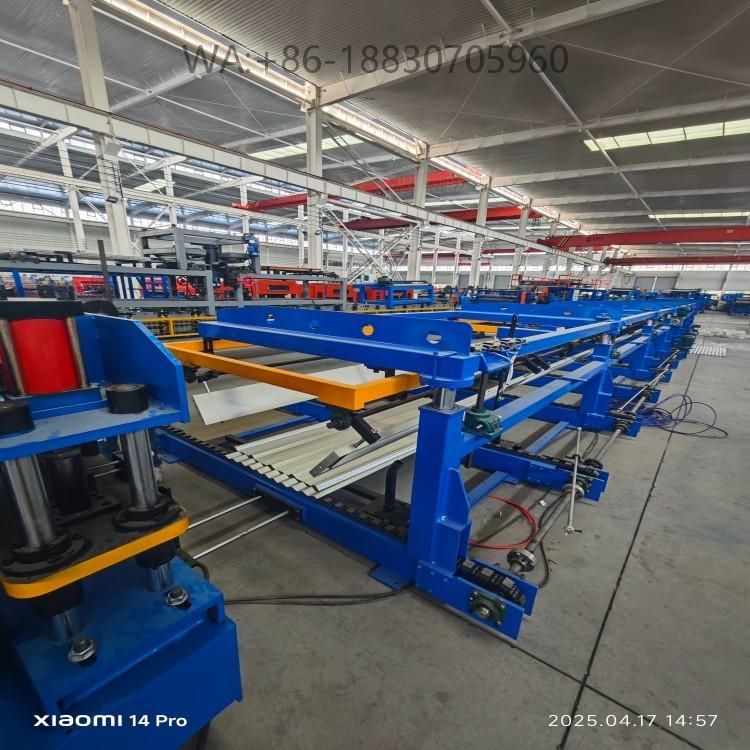

It is placed behind the forming machine to collect the finished products after forming and stack them neatly.
As an optional part of the automated production line, adding a palletizer can improve the speed and efficiency of production.
The palletizers produced by our factory are in units of 1.5m each,
and can be customized in any multiple lengths to meet the needs of products of different lengths.
| Parameter | Specification |
|---|---|
| Name | 6 Meter Automatic Metal Sheet Stacker |
| Max Stacking Length | 6000 mm |
| Max Sheet Width | 1250 mm (customizable) |
| Sheet Thickness Range | 0.3–1.5 mm (steel) |
| Drive Method | Pneumatic cylinders or hydraulic platform |
| Conveyor Type | Chain or roller conveyor |
| Stacking Speed | 8–15 sheets/min (depends on sheet size) |

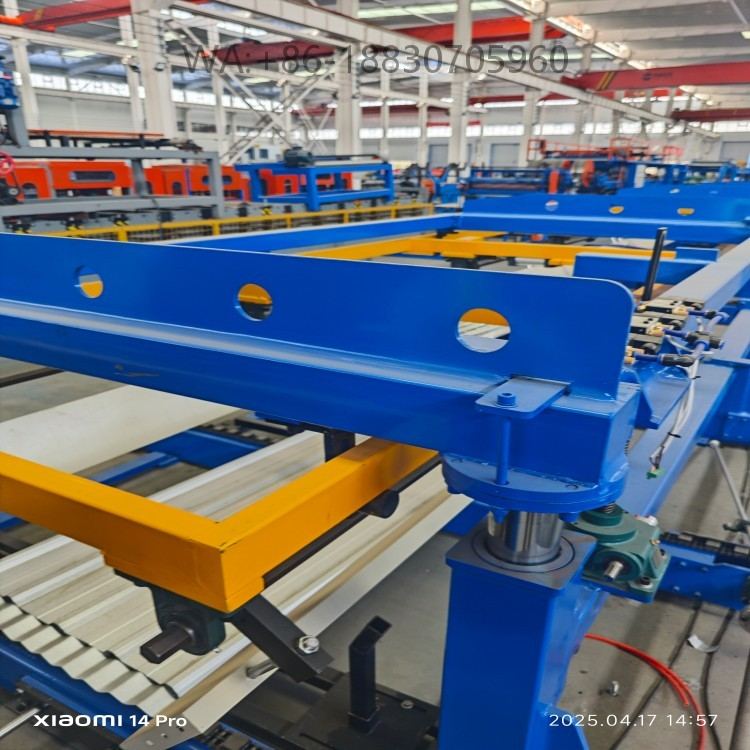

| Lifting Mechanism | Hydraulic lifting frame |
| Control System | PLC + Touchscreen |
| Power Supply | 380V / 50Hz / 3Phase (customizable) |
| Material Handling | Auto aligning & counting |
| Compatibility | Roofing panel / decking sheet production line |

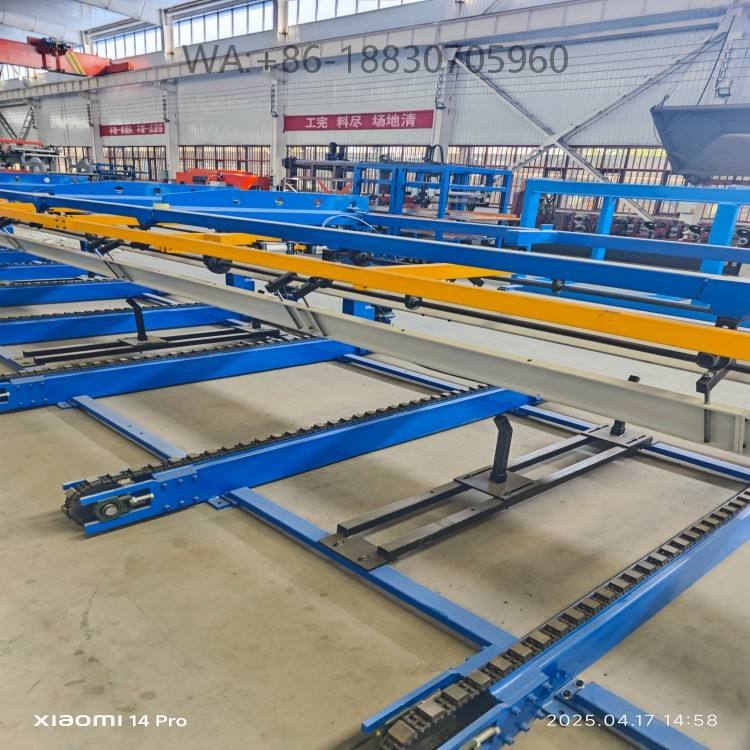

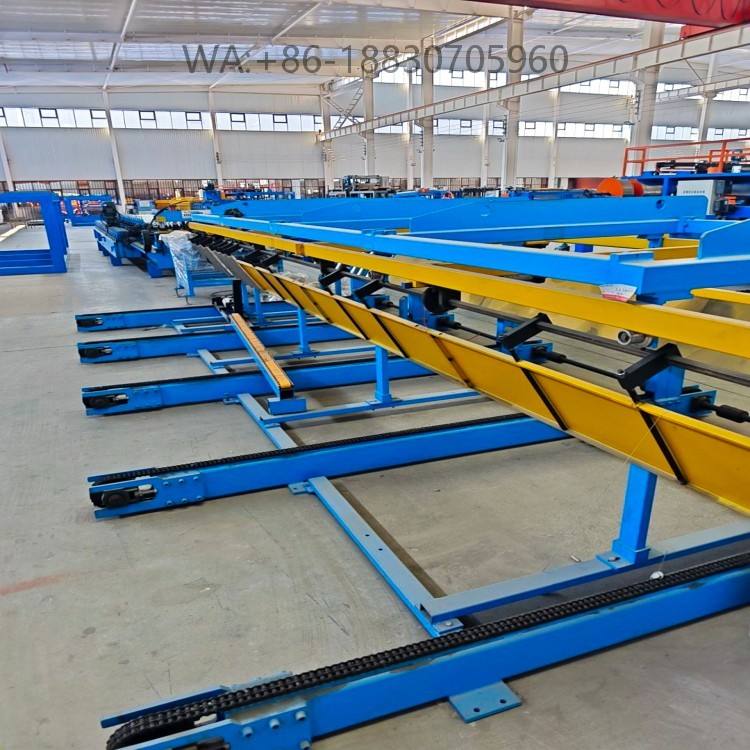

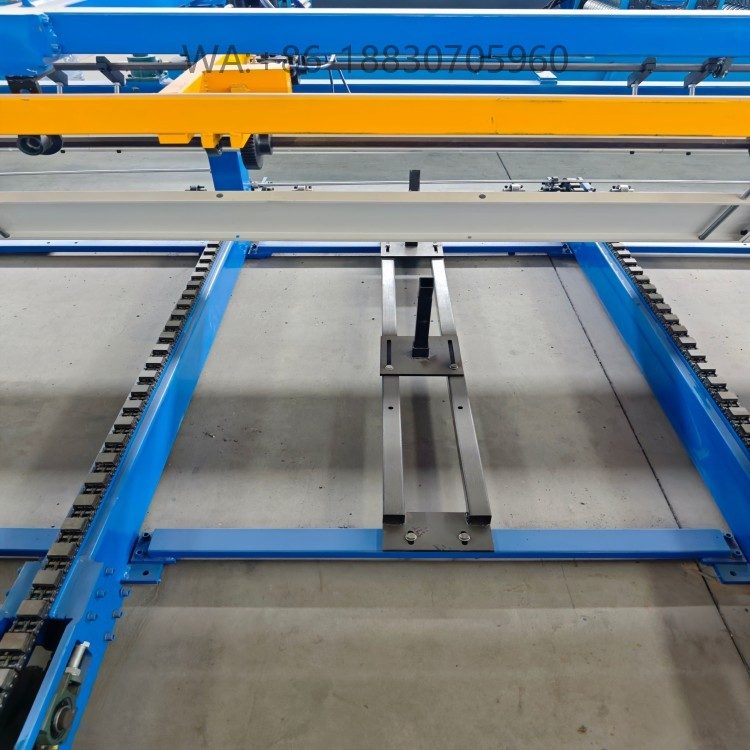

The machine adopts a high-strength frame and chain drive to ensure the stability and life of the machine for long-term operation.
