| No. | Item | Details |
|---|---|---|
| 1 | Application | Production of Trimdek roofing panels |
| 2 | Material | PPGI / PPGL / Galvanized steel / Aluminum |
| 3 | Thickness Range | 0.30–0.80 mm (customizable) |
| 4 | Forming Speed | 12–18 m/min (higher speed optional) |
| 5 | Control System | PLC with automated length setting |
| 6 | Customization | Profile width, rib height, speed & power options |

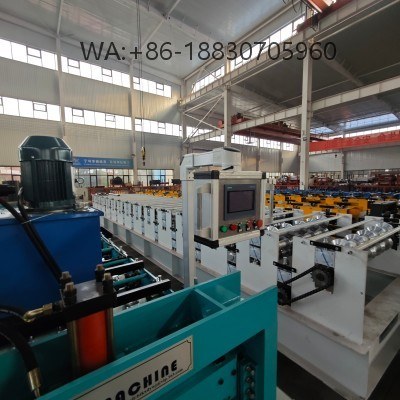

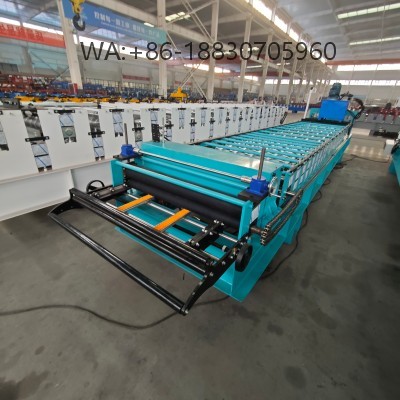

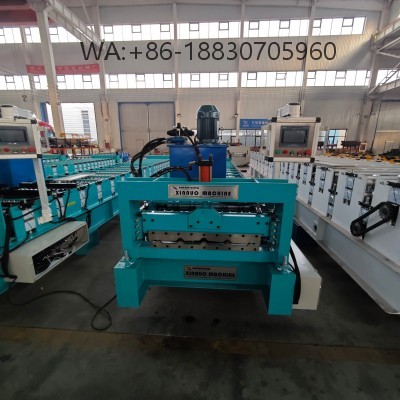

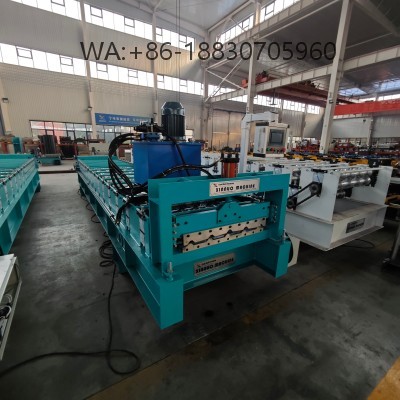

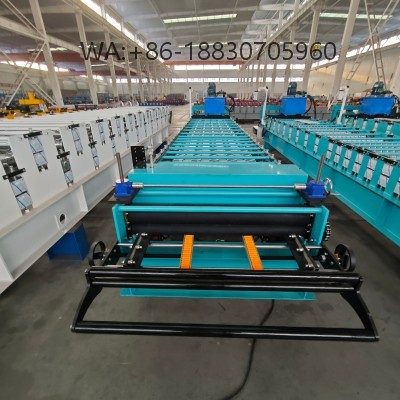

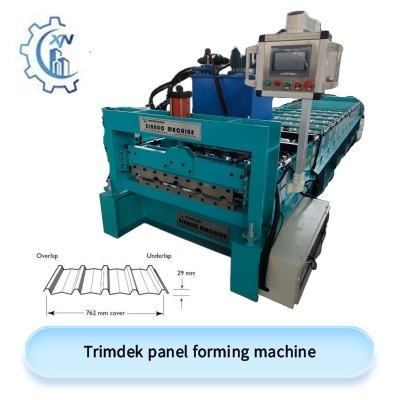

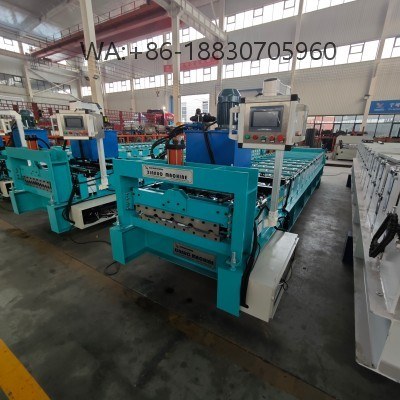

The Trimdek panel forming machine is engineered to deliver stable and precise roofing sheet production for commercial buildings, industrial facilities and modern housing projects.
Its forming rollers and structural frame are designed for long-term reliability, even under continuous operation.
| No. | Specification | Details |
|---|---|---|
| 1 | Raw Material | Suitable for PPGI, PPGL, galvanized steel and aluminum coils in multiple regional specifications. |
| 2 | Material Thickness | 0.30–0.80 mm; covers standard residential roofing and higher-strength industrial applications. |
| 3 | Effective Panel Width | Custom Trimdek width options for Australia & Southeast Asia; consistent rib geometry ensured. |

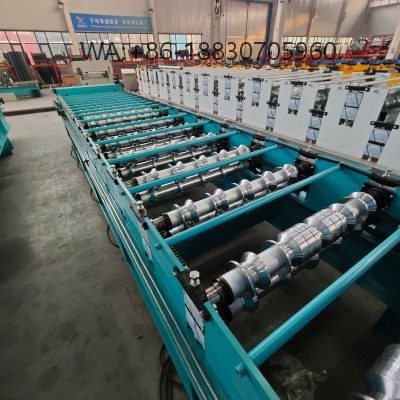

| 4 | Forming Stations | Precision-machined rollers with hardened surfaces to maintain accurate rib structure and uniform height. |
| 5 | Forming Speed | Standard 12–18 m/min; upgraded configurations support higher output for large-volume production. |

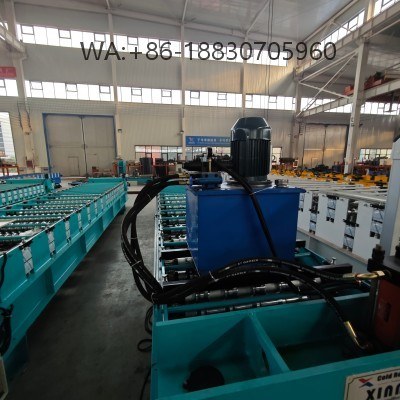

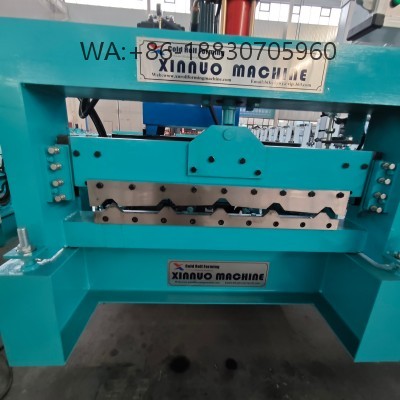

| 6 | Cutting System | Hydraulic post-cut with high-durability blades; ensures clean, burr-free cuts for improved panel fit. |
| 7 | Transmission System | Chain or gearbox drive options designed to reduce vibration and improve sheet stability during long runs. |
| 8 | Control Mode | Full PLC automation with length presetting, piece counting, and synchronized cutting control. |
| 9 | Power Configuration | Adjustable according to local voltage; supports markets with 380V/415V/440V industrial supply. |
| 10 | Customization Support | Profile shape, rib depth, width, speed and motor power fully adaptable to target market standards. |
The machine handles galvanized steel, PPGI, PPGL and aluminum coils, giving manufacturers flexibility to serve multiple climate zones.
With a thickness capacity of 0.30–0.80 mm, it adapts easily to both lightweight roofing needs and higher-strength applications.
Each forming station is calibrated to keep the panel ribs clean and symmetrical.
This ensures tight panel overlap, strong wind resistance and smooth installation—key requirements in Australia and Southeast Asia where Trimdek roofing is widely used.
The production line offers different speed configurations to match various project scales.
Standard models run at 12–18 m/min, while upgraded systems can achieve higher speeds for bulk manufacturing without sacrificing accuracy or sheet consistency.
A PLC intelligent control system manages length setting, automatic cutting, and production counting.
Combined with durable hydraulic cutting blades and customizable profile designs, the machine provides a versatile solution for roofing suppliers aiming to expand their output with consistently high product quality.
