| No. | Item | Specification |
|---|---|---|
| 1 | Material | Galvanized steel / PPGI / Galvalume |
| 2 | Coil Width | 925 – 940 mm (standard) / customizable |
| 3 | Sheet Thickness | 0.30 – 0.80 mm |
| 4 | Effective Width | 760 mm (Trimdek profile) |
| 5 | Forming Speed | 12 – 18 m/min (upgradeable) |
| 6 | Control | PLC + Touchscreen; length preset and batch count |

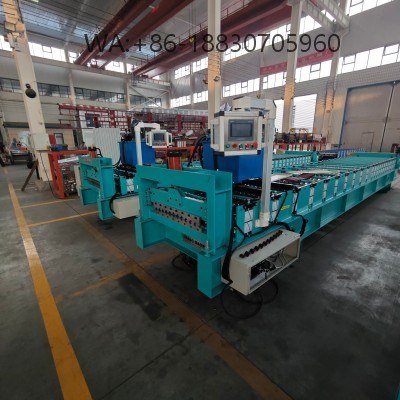

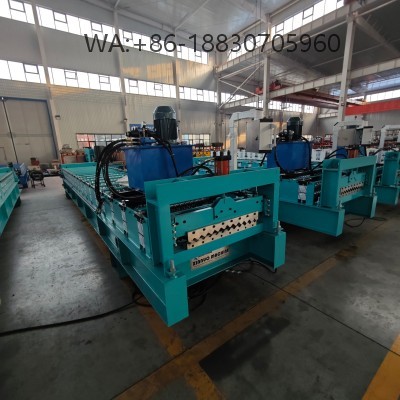

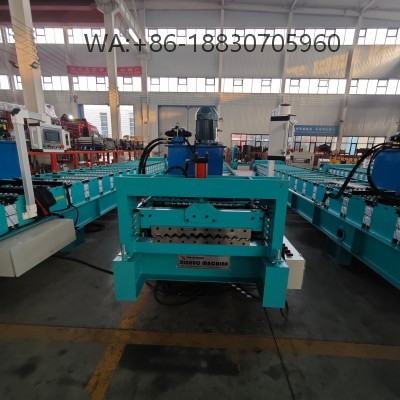

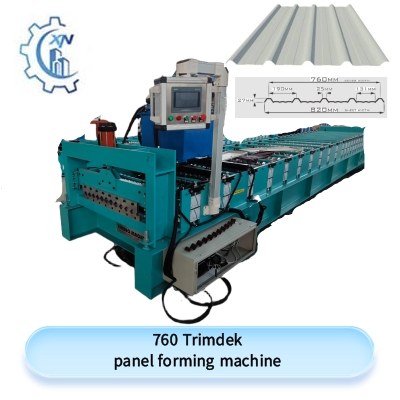

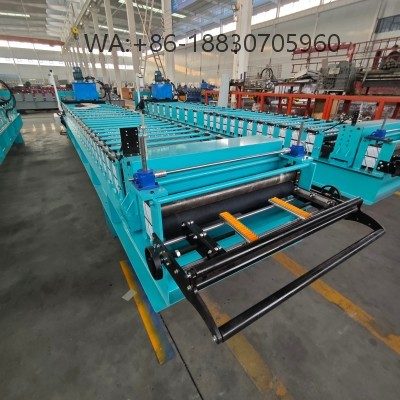

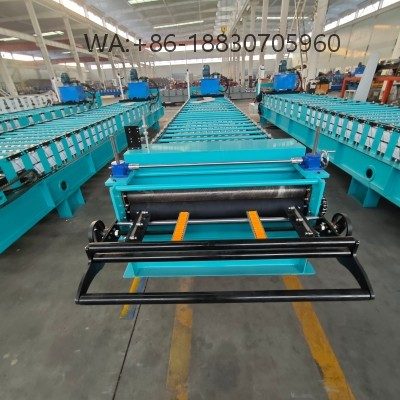

The 760 Trimdek forming machine delivers precise rib geometry and consistent sheet width, designed to meet Australian construction tolerances and weather conditions.
| No. | Parameter | Details & Advantages |
|---|---|---|
| 1 | Applicable Materials | GI / PPGI / Galvalume / Aluminum — options for corrosion resistance and local standards. |
| 2 | Input Coil Width | 925 – 940 mm standard; customizable for special Trimdek variants. |
| 3 | Effective Panel Width | 760 mm — precise rib symmetry for reliable overlap and water drainage. |
| 4 | Thickness Range | 0.30 – 0.80 mm — covers light to medium duty roofing panels. |
| 5 | Forming Stations | 16 – 20 stations (CNC machined rollers ensure consistent profile repeatability). |
| 6 | Roller & Shaft | GCr15 rollers with hard chrome / 70–75 mm solid shafts — long life and stable forming. |
| 7 | Cutting | Hydraulic post-cut with Cr12Mov blade — smooth edge, low maintenance. |
| 8 | Drive | Gearbox or chain drive options to match speed and torque needs; reduced vibration. |
| 9 | Power | Main motor 5.5–7.5 kW; hydraulic 4–5.5 kW (configurable). |
| 10 | Control | PLC + touchscreen; length preset, batch count, fault alarm; supports remote parameter backup. |
| 11 | Speed | 12 – 18 m/min standard; optional high-speed packages up to 25 m/min depending on configuration. |
| 12 | Dimensions | Approx. 8.0 – 9.0 m length (varies with auxiliary equipment). |
| 13 | Customization | Profile, rib height, coil width, speed and automation accessories available per order. |

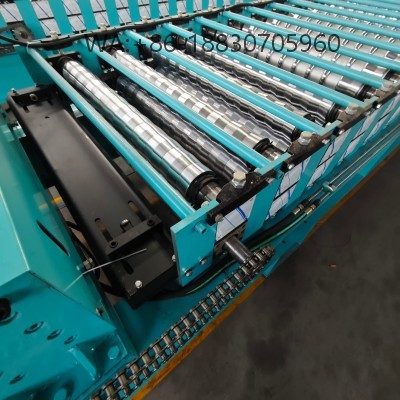

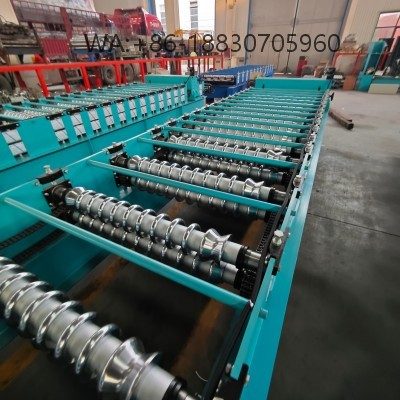

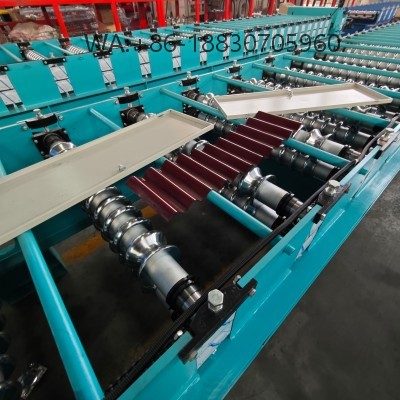

CNC-machined rollers and hardened shafts maintain profile accuracy during continuous runs, reducing on-site trimming and improving roof installation speed.

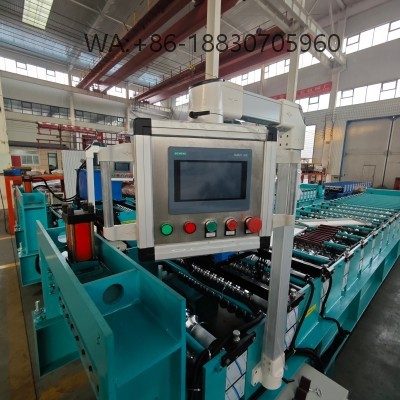

PLC automation with length presetting and batch counting simplifies operation and reduces human error, enabling stable quality across production batches.
The hydraulic cutting system provides clean edges and minimal deformation, which reduces downstream handling and improves final assembly fit on rooftops.
Custom options include coil width adaptation, rib height adjustment, high-speed configurations, and integrated decoiler/stacker packages — tailored to your production targets.
