| Material Type |
Galvanized steel, pre-painted steel, aluminum |
| Material Thickness |
0.3 – 0.8 mm (adjustable according to sheet strength requirements) |
| Feeding Width |
1220 mm standard (can be customized) |
| Effective Panel Width |
980 mm after forming |
| Production Speed |
8 – 15 m/min, stable operation with minimal error |
| Roller Stations |
14 – 18 stations depending on profile design |
| Roller Material |
High-quality GCr15 steel with heat treatment & hard chrome plating |
| Shaft Diameter |
75 mm solid steel shaft, precision machined |
| Cutting System |
Hydraulic cutting with high-precision blades for smooth edges |

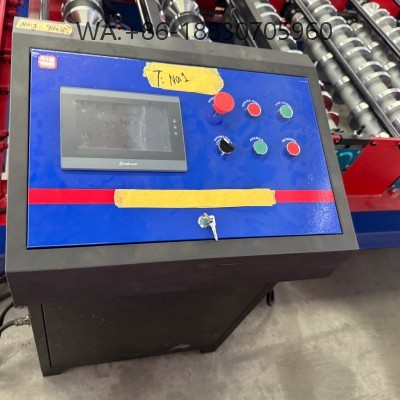

| Control System |
PLC automatic control with touch screen (Siemens/Delta) |
| Main Motor Power |
5.5 kW (customizable for higher production speed) |

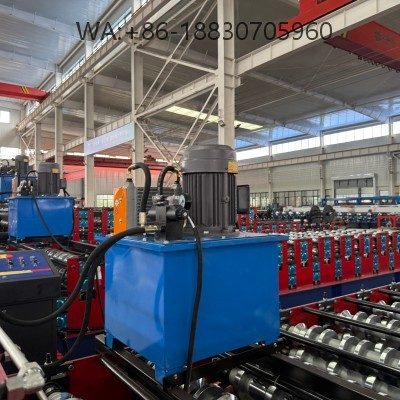

| Hydraulic Station Power |
4 kW with reliable pump for long-term performance |
| Dimension (L×W×H) |
About 8.5 m × 1.5 m × 1.5 m |
| Weight |
About 6 tons |
| Note |
We can design and manufacture different trapezoidal panel profiles, colors, and sizes according to your market demand |
