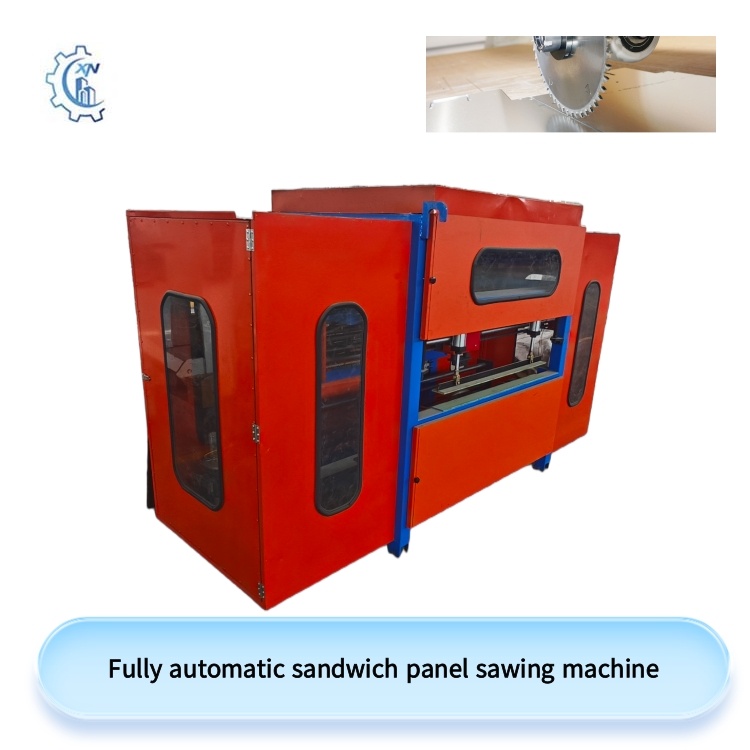

| Machine Name | Fully Automatic Sandwich Panel Sawing Machine |
| Function | Precision cutting of sandwich panels |
| Suitable Panel Types | PU, PIR, EPS, Rock Wool |
| Cutting Mode | Fully automatic / Servo control |
| Panel Width Range | 950–1200 mm |
Compared with the investment in sandwich board production line, a good sawing machine is cheaper but more efficient in improving product quality. Our factory's sawing machine is an indispensable supporting machine for sandwich board production line.
| Specification | Parameter |
| Panel Width | 950–1200 mm |
| Panel Thickness | 30–250 mm |
| Panel Length | 2000–16000 mm |
| Cutting Accuracy | ±1 mm |
| Cutting Blade | TCT Circular Saw Blade |
| Feeding System | Servo motor with roller conveyor |
| Operation Mode | PLC + Touch Screen |
| Control System | Fully automatic with memory settings |
| Blade Drive Power | 5.5–7.5 kW |
| Working Speed | Up to 5 m/min (adjustable) |
| Customization | Supports custom blade types and automation level |

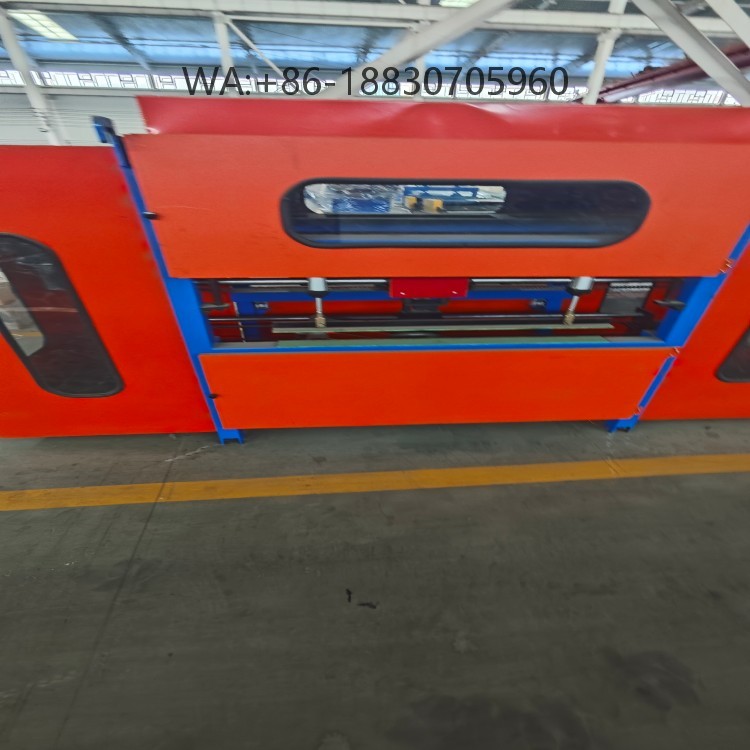

The machine is covered with a protective cover to avoid accidental injury during use
The design of the machine focuses on durability, which can work continuously without failure and save maintenance costs.
