| Sandwich Board Wrapping Machine | |
| Application | Packaging of sandwich wall/roof panels |
| Material Types | Rock wool, PU, EPS boards |
| Operation Mode | Semi or fully automatic |
| We offer custom models based on your panel size and layout. | |

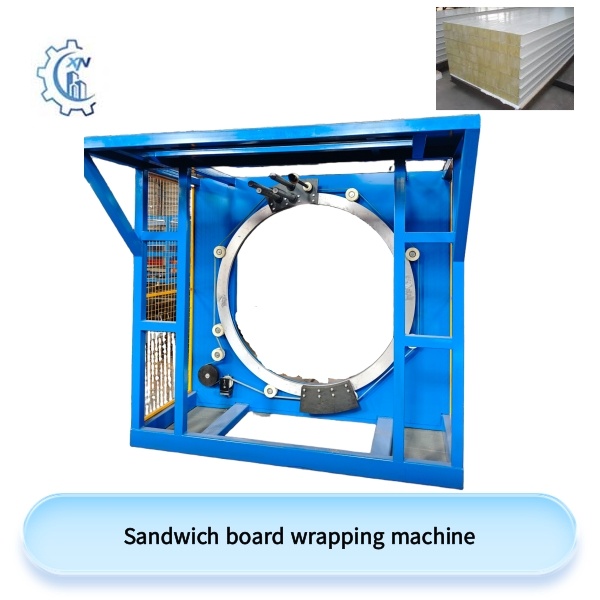

The track baler for sandwich boards is the last part of the production line for baling the sandwich boards that have been produced and stacked for easy transportation and sales. The track balers produced by Xinnuo can be adapted to different specifications and types of sandwich boards.

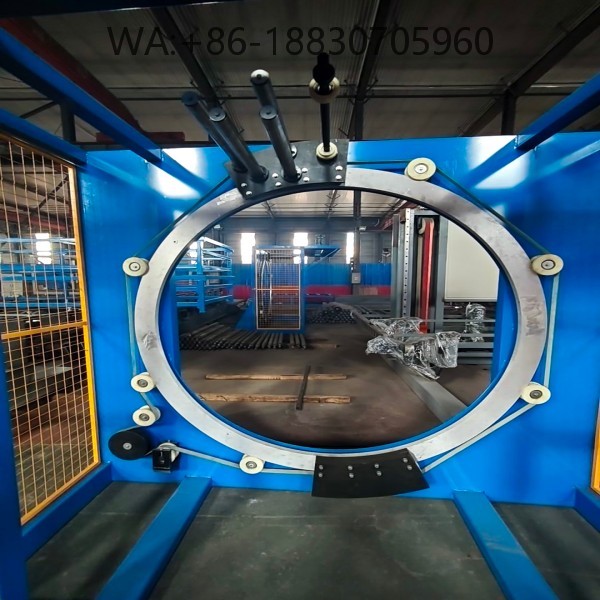

The plates are transported through the middle ring by rails and the sandwich plates are packed around the ring. The efficiency is very high and the packing effect is good.
| Technical Parameters | |
| Panel Width Range | 600 – 1200 mm |
| Panel Length Range | 2 – 12 m |
| Panel Thickness | 50 – 200 mm |
| Wrapping Material | Stretch film / PE film / Paper |
| Power Supply | AC 380V / 50Hz / 3Ph |
| Working Speed | 2 – 6 m/min |
| Control System | PLC with HMI touch screen |
| We can customize this machine for different panel sizes, packing materials, and automation levels. | |

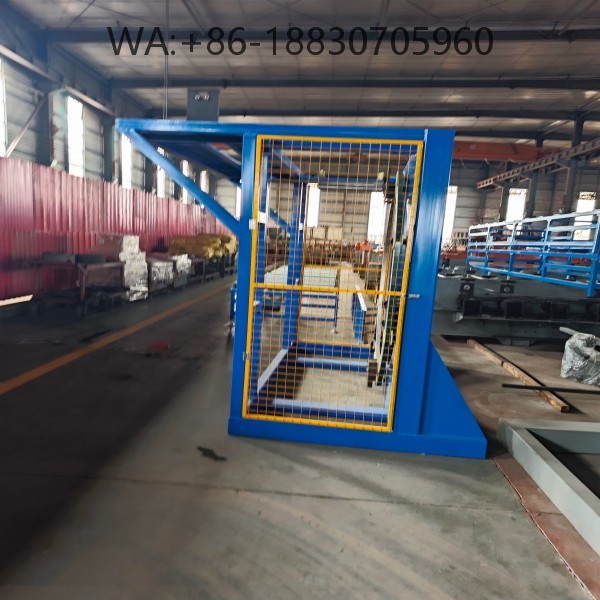

There are protective nets around the machine frame to prevent workers from being accidentally injured during operation.
The machine frame is designed to be sturdy and the components are all from well-known brands to ensure stability and durability.
