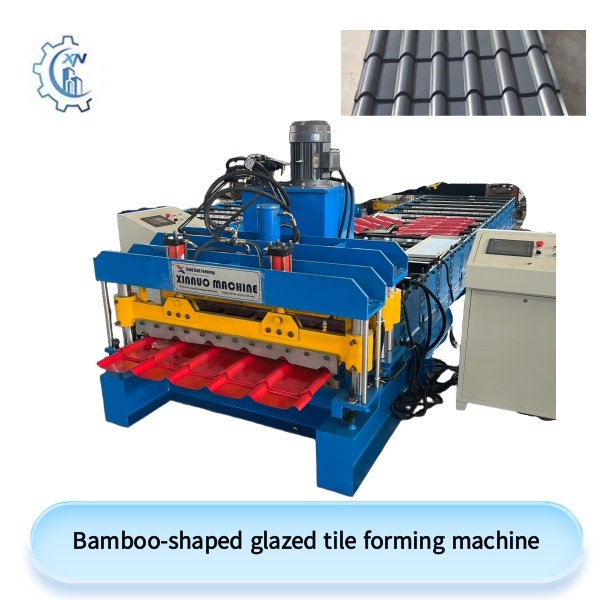

| Machine Name | Bamboo-shaped Glazed Tile Forming Machine |
| Application | Color steel glazed tile sheet forming |
| Main Material | PPGI, GI, Aluminum (0.3–0.8 mm) |
| Note | Multiple tile shapes can be customized |

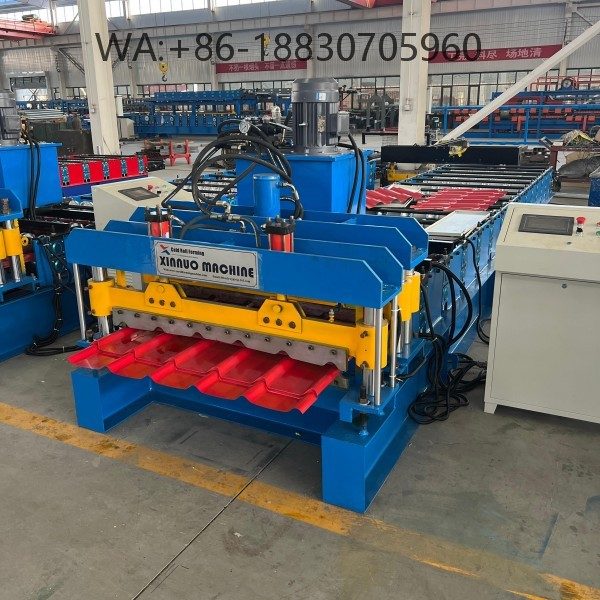

The bamboo-section glazed tiles produced by the bamboo-section glazed tile forming machine are loved by customers from different parts of the world for their beautiful and practical features. They are a very popular type of metal roof panels.
The frames of the machines are made of high-quality steel and are precision-processed by our large-scale processing machines and CNC machine tools. The flatness and firmness of the frames are better, which reduces noise, vibration and wear during operation and greatly increases the life of the molding machine.
| Raw Material | PPGI / GI / Aluminum |
| Material Thickness | 0.3 – 0.8 mm |
| Effective Width | 820 mm / 828 mm / 840 mm (customizable) |
| Feeding Width | 1000 – 1250 mm |
| Forming Speed | 3 – 5 meters/min (including press section) |
| Roller Material | 45# steel with hard chrome plating |
| Main Motor Power | 4 – 5.5 kW |
| Hydraulic Station Power | 3 – 4 kW |
| Control System | PLC (Delta, Siemens, or customizable) |
| Cutting Type | Hydraulic cutting with pressing mold |
| Voltage | 380V / 50Hz / 3Phase (or customized) |
| Note | This machine supports multiple bamboo-tile shapes. Custom designs are available upon request. |
The electrical and component parts of the machine will be designed differently according to the customer's region and actual needs. The machine operation language can be customized, and a cooling fan will be installed to meet the needs of long-term production of roof panels and operation in high temperature environments.
The processing and assembly between the rollers are strictly carried out according to high standards to ensure that the effect of each molding machine is equally good.

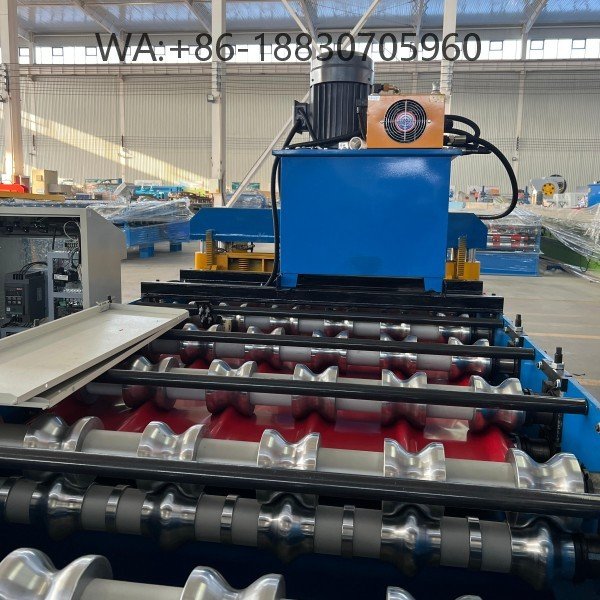

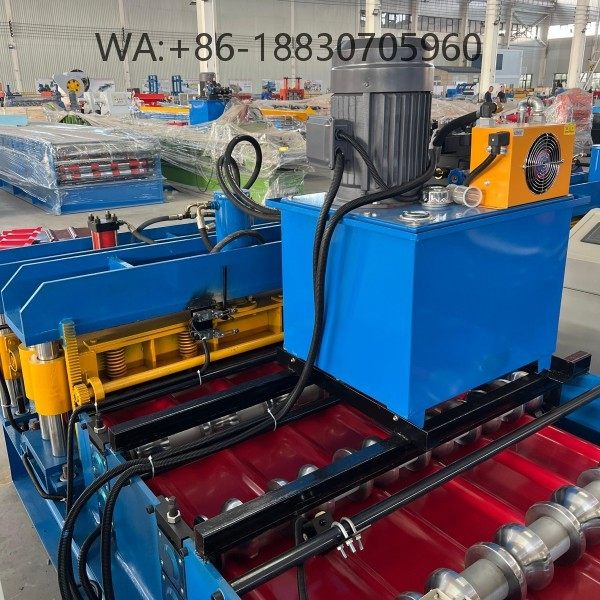

The machine's motor display.

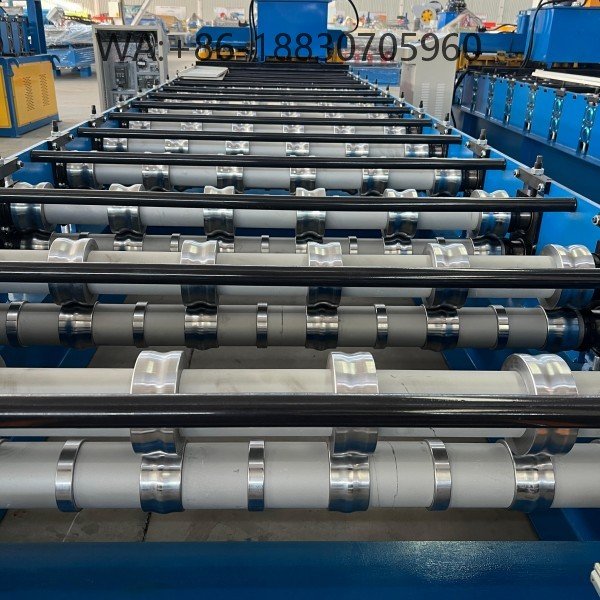

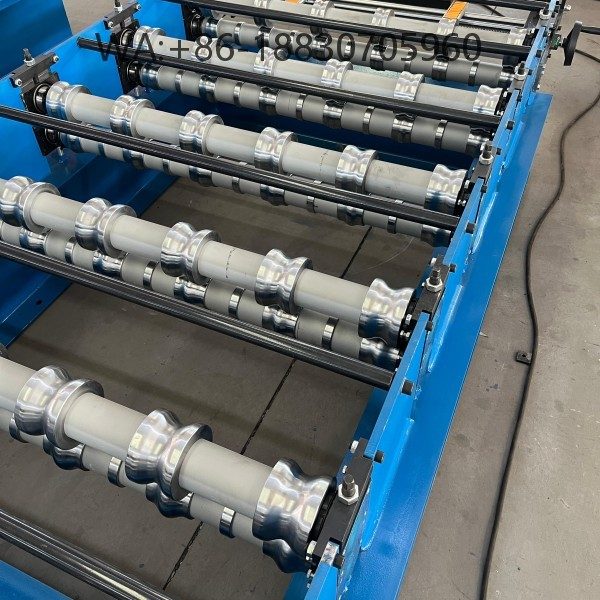

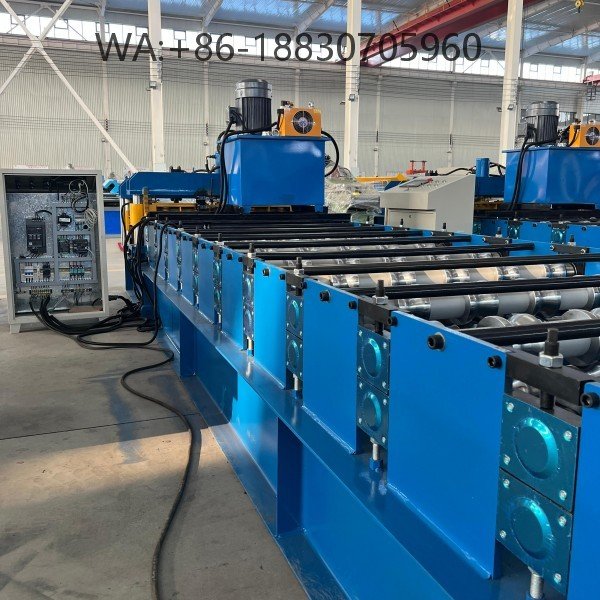

The rollers of the machine are shown.
