| Item | Specification |
|---|---|
| Machine Type | Corrugated Glazed Tile Roll Forming Machine |
| Raw Material | Galvanized Steel, PPGI, Aluminum |
| Material Thickness | 0.3 – 0.7 mm |
| Effective Width | 828 mm (or customized) |
| Forming Speed | 3 – 6 m/min |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Cutting |
| Certification | CE, ISO |

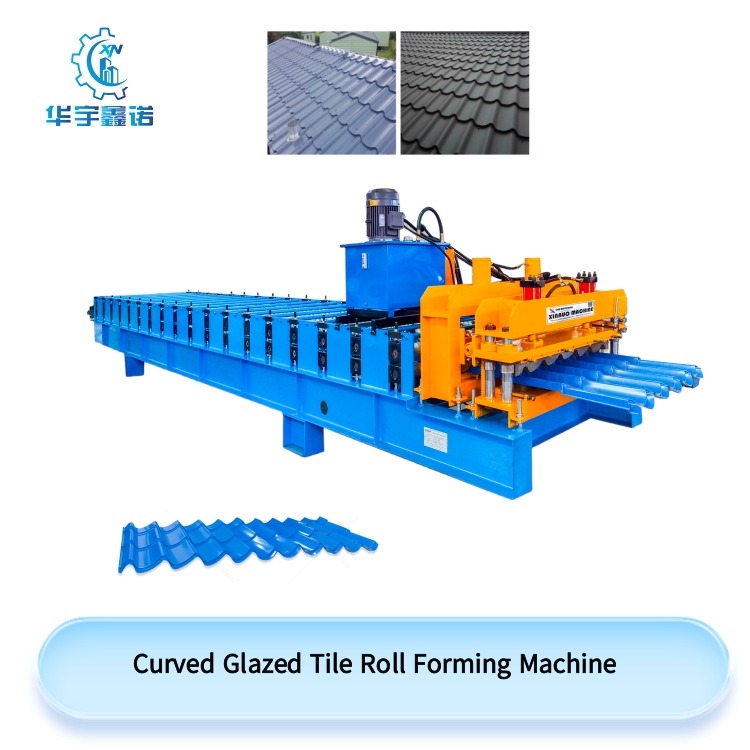

Xinnuo's glazed tile forming machine can produce glazed tiles at high speed,
and the machine can be highly customized to meet the different needs of customers.
Glazed tiles are increasingly used as roofing materials because they are more beautiful,
and the market acceptance is high. Therefore, buying a machine to produce glazed tiles is a good business.
| Technical Item | Specification |
|---|---|
| Application | Corrugated Glazed Tile Production |
| Raw Material | Galvanized Steel (GI), Pre-painted Steel (PPGI), Aluminum |
| Material Thickness | 0.3 – 0.7 mm |
| Coil Width | 1000 – 1250 mm (depending on profile design) |
| Effective Panel Width | 828 mm (or as per customer requirement) |
| Profile Type | Corrugated Glazed Tile |
| Forming Speed | 3 – 6 m/min |
| Roller Stations | 18 – 24 stations |
| Shaft Diameter | 70 mm |
| Roller Material | GCr15, heat treated and hard chrome plated |
| Main Motor Power | 5.5 – 7.5 kW |
| Hydraulic Power | 4 – 5.5 kW |

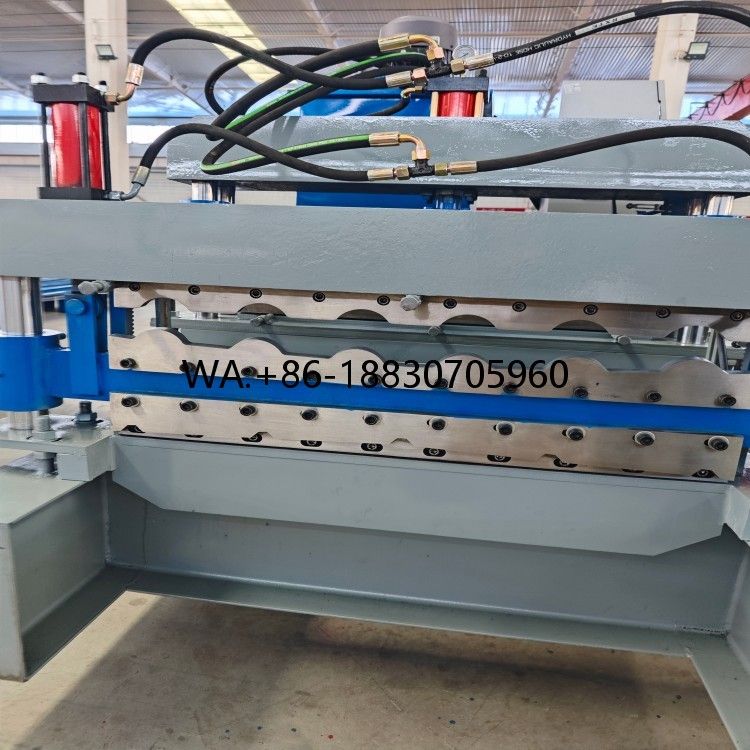

| Cutting System | Hydraulic Post-cutting |
| Control System | PLC (Siemens / Delta / Schneider options) |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
| Machine Frame | Welded Steel Structure, Heavy-duty Frame |
| Certifications | CE, ISO9001 |

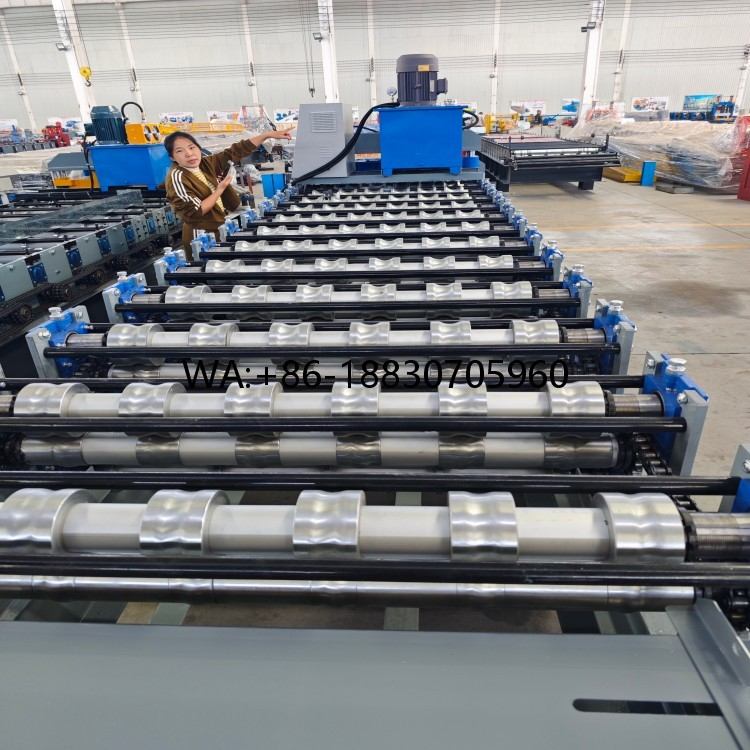

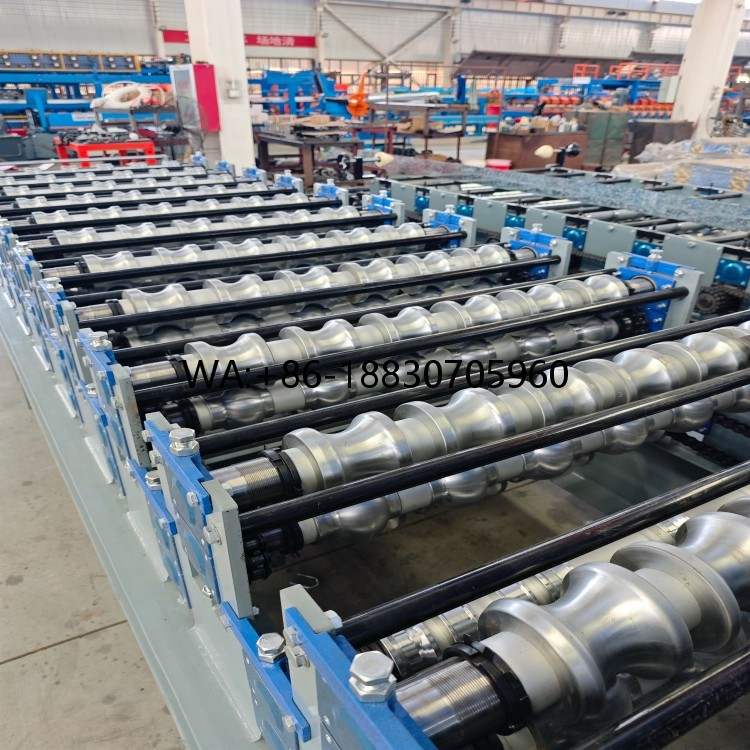

The machine rollers and shafts are made of high-hardness materials to improve the durability of the machine.
Contact me to get more details of the machine
