| No. |
Specification |
Description |
| 1 |
Model |

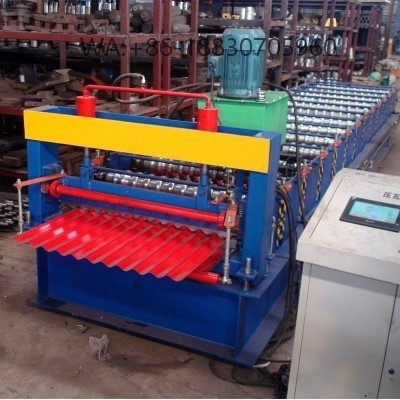

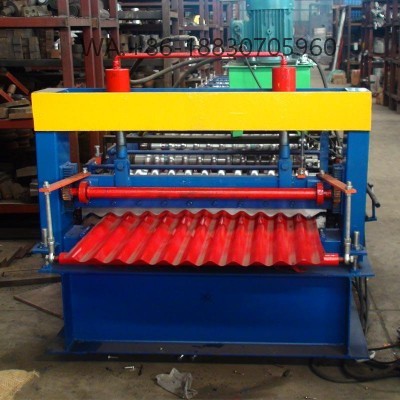

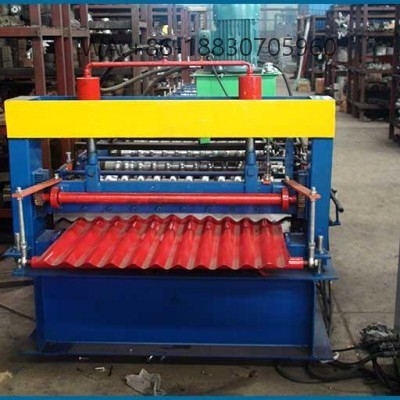

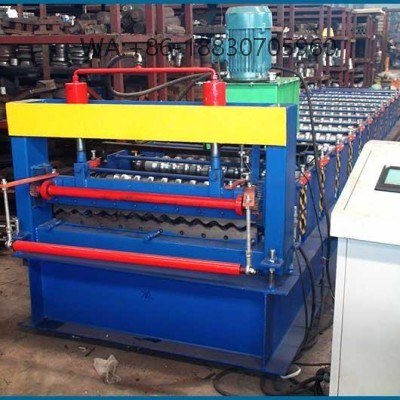

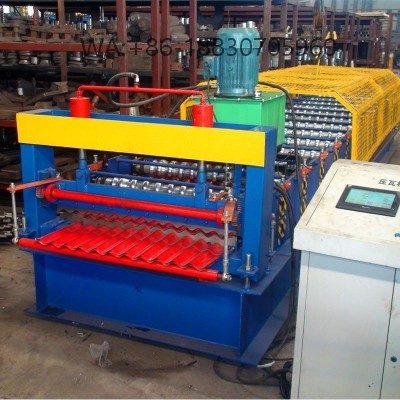

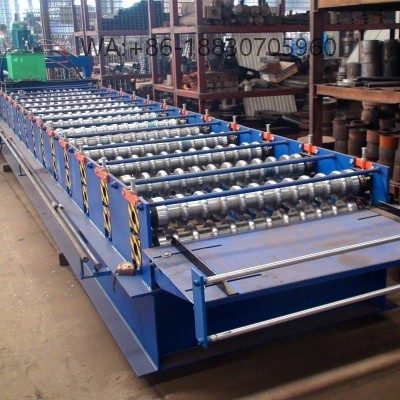

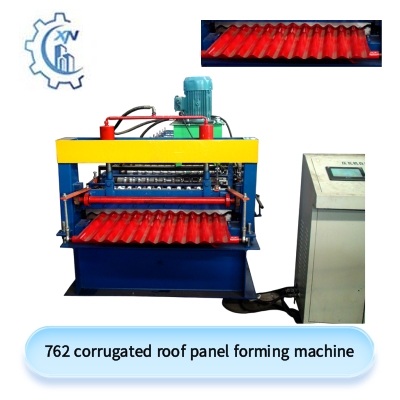

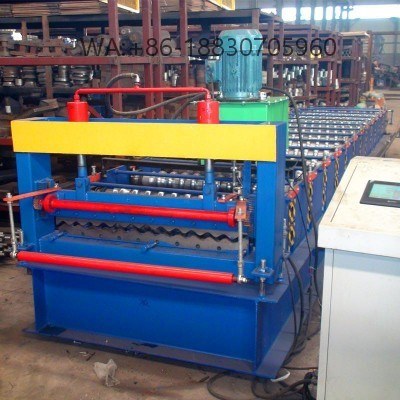

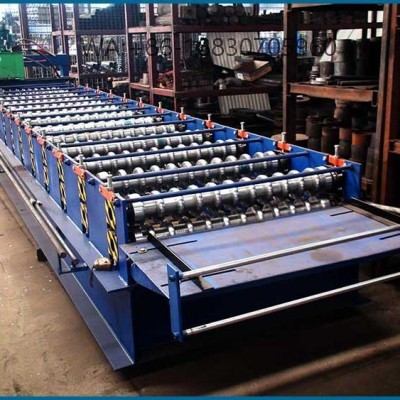

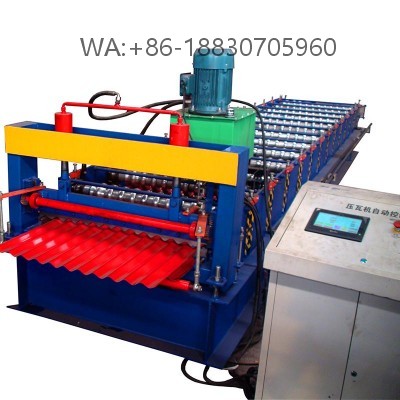

762 Corrugated Roof Panel Forming Machine |
| 2 |
Material |
Galvanized steel, pre-painted steel, galvalume |
| 3 |
Sheet Thickness |
0.3 – 0.8 mm, suitable for various roofing applications |
| 4 |
Effective Panel Width |
762 mm |
| 5 |
Coil Width |
914 – 1250 mm (depending on design) |
| 6 |
Production Speed |
15 – 45 m/min (low/medium/high-speed options, customizable) |
| 7 |
Cutting System |
Hydraulic cutting with precise and clean finish |
| 8 |
Main Motor Power |
5.5 – 11 kW, adjusted according to production speed |
| 9 |
Control System |
PLC with touch screen, easy parameter setting |
| 10 |
Applications |
Roofing panels for industrial, commercial, and residential projects |
| 11 |
Remark |
Machine can be customized to produce different profiles and speeds as per client’s demand |
