| Item | Description |
|---|---|
| Machine Type | 80 Ton Power Press |
| Pressing Force | 800 kN (80 Ton) |
| Frame Type | C-Frame |
| Stroke Length | 80 – 120 mm |
| Slide Adjustment | Manual / Motorized |
| Die Height | 200 – 300 mm |
| Table Size | Approx. 600 × 400 mm |
| Operation | Manual / Foot Pedal / Auto |
| Application | Hole punching, forming |

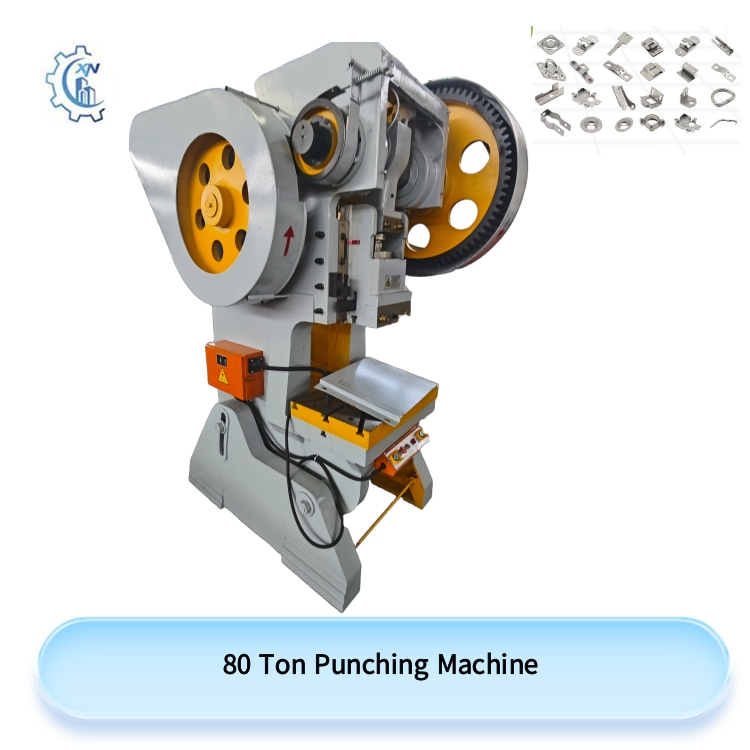

Our 80-ton punch press is consistent with the calibrated pressure to eliminate false marking.

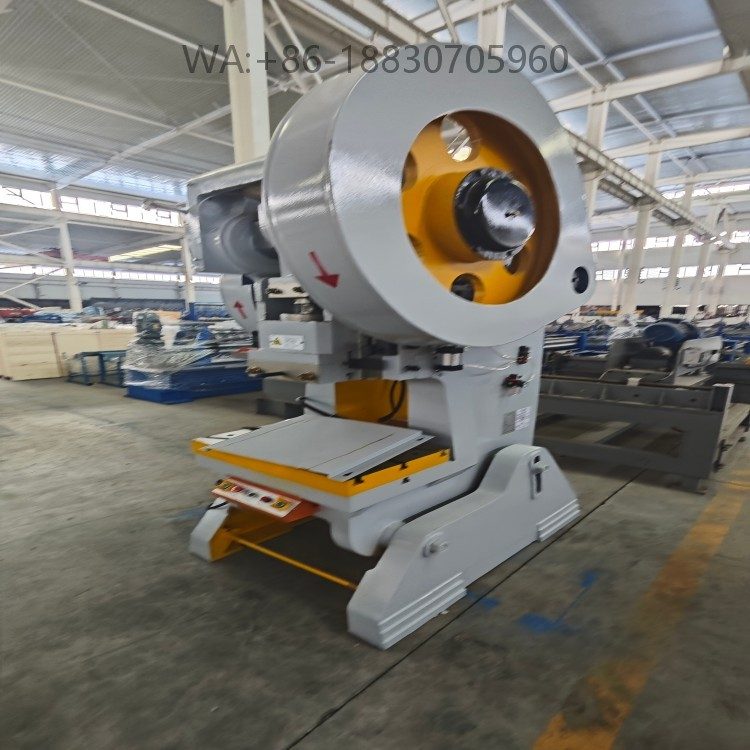

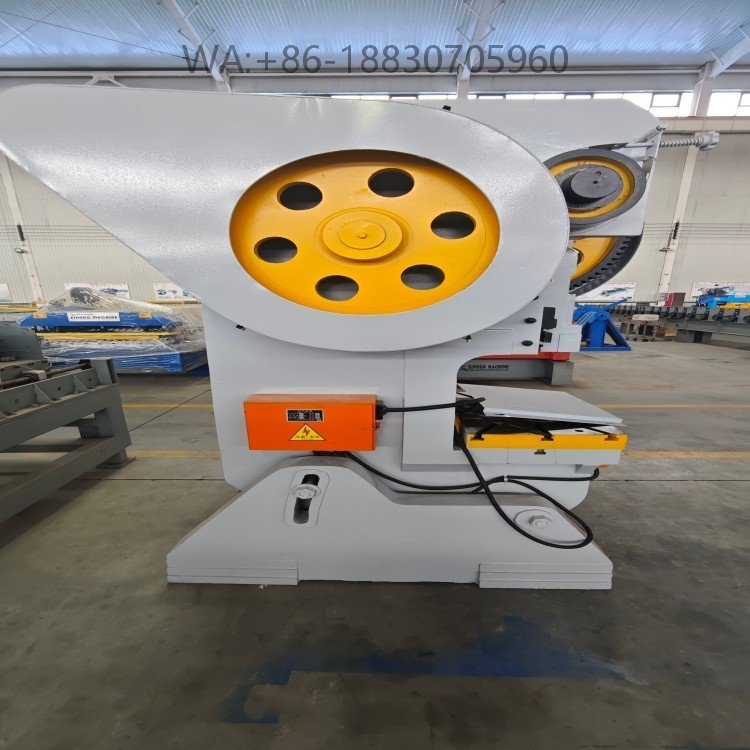

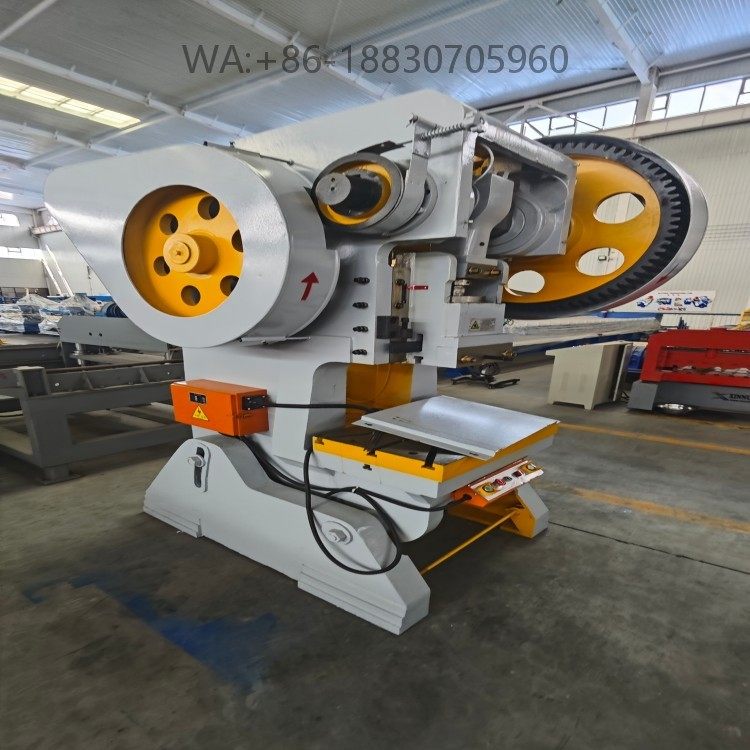

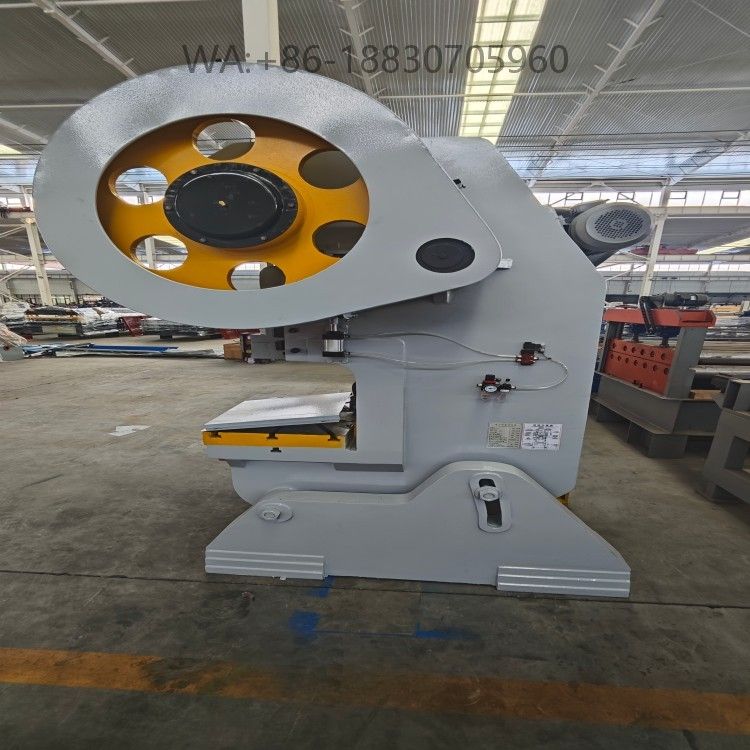

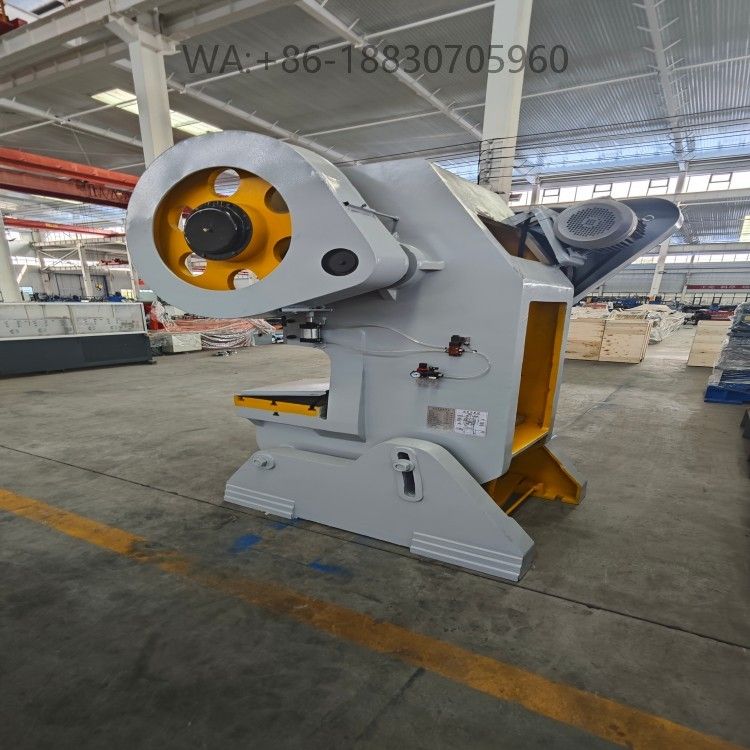

The machine uses a high-power motor and a reinforced frame,
which can continuously output 80 tons of pressure for non-stop punching and profiling.
| Parameter | Specification |
|---|---|
| Machine Name | 80 Ton Mechanical Power Press |
| Pressing Capacity | 800 kN (80,000 kgf / 80 Ton) |
| Frame Type | Open-type C-Frame |
| Stroke Length | 80 – 120 mm (adjustable) |
| Slide Stroke per Minute | 35 – 70 SPM (depends on stroke length) |
| Die Height | 250 – 300 mm |
| Die Height Adjustment | Motorized (manual optional) |
| Table Size | 600 × 400 mm |
| Slide Area | 300 × 250 mm |
| Motor Power | 7.5 kW – 11 kW |
| Lubrication System | Automatic oil lubrication |
| Control Mode | Electric button / Foot switch / PLC control |
| Applications | Punching, cutting, embossing, forming |

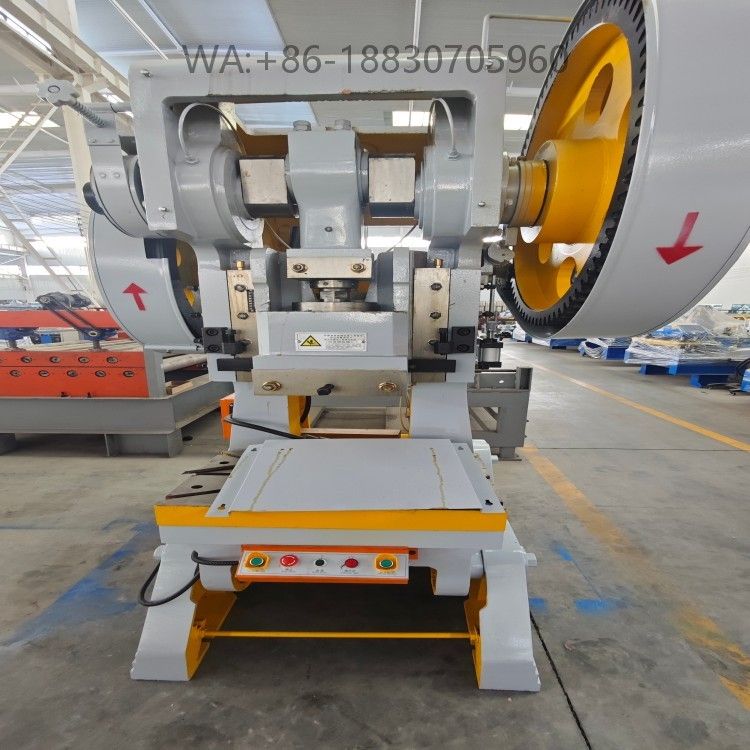

The machine's work surface is large and can accommodate molds of various shapes and sizes,
satisfying the multi-purpose use of one machine and reducing the purchase cost of the machine.
The punching machine is easy to operate and the language can be customized to the language required by the customer.
