| Item | Description |
|---|---|
| Machine Name | 820mm Hidden Fixing Roof Panel Machine |
| Coil Width | ~1000–1200 mm (depending on profile) |
| Effective Width | 820 mm |
| Applicable Material | Galvanized steel, PPGI, Aluminum |
| Thickness Range | 0.3–0.8 mm |
| Production Speed | 10–15 m/min |
| Operation Mode | Fully automatic with PLC |
| Control System | PLC + Touchscreen |
| Parameter | Specification |
|---|---|

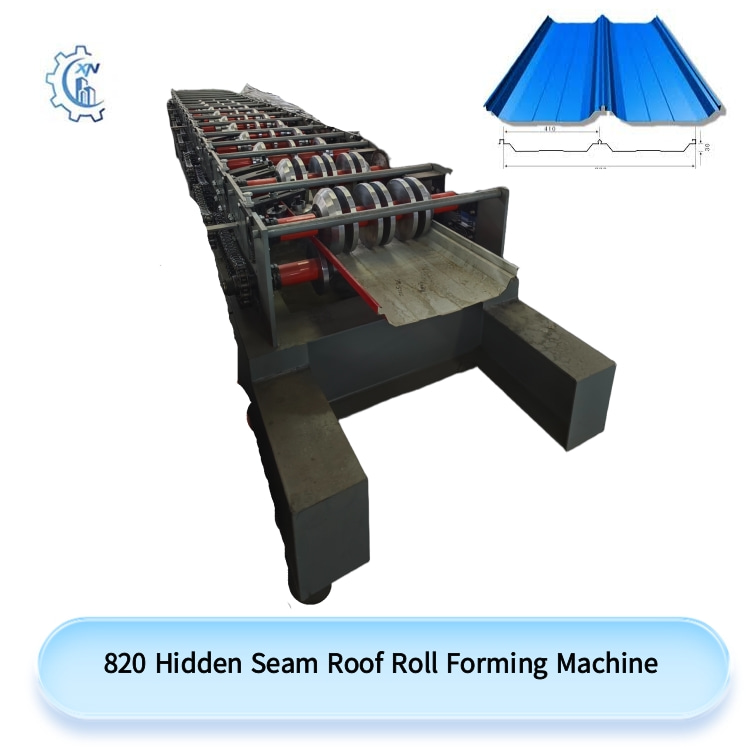

| Machine Name | 820mm Hidden Seam Roof Panel Roll Forming Machine |
| Coil Material | PPGI / GI / GL / Aluminum Sheets |
| Coil Width | Typically 1000–1200 mm |
| Effective Coverage Width | 820 mm (after forming) |
| Forming Thickness Range | 0.3–0.8 mm |
| Forming Stations | 16–22 steps (profile dependent) |
| Roller Material | 45# Steel with hard chrome coating |
| Shaft Material & Dia. | 75 mm solid steel shafts (quenched and tempered) |

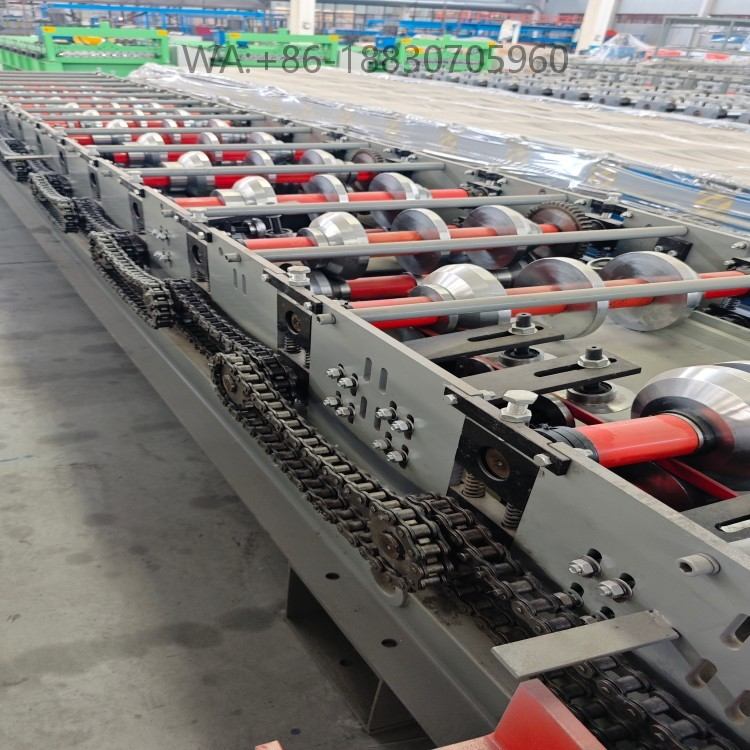

| Transmission | Chain / Gear Drive |
| Cutting Method | Hydraulic Cutting with Cr12 steel blades |
| Control Panel | Delta / Siemens PLC + HMI touchscreen |
| Drive Motor Power | 4–7.5 kW (based on configuration) |
| Hydraulic Station Power | 4 kW |
| Voltage | 380V / 50Hz / 3Phase (customizable) |
| Output Speed | 10–15 meters/min |
| Application Fields |
Industrial plants, stadium roofs, commercial buildings |
