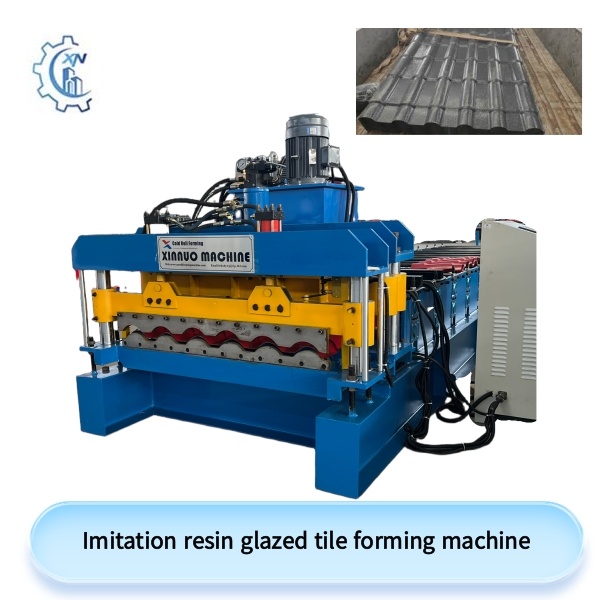

| Machine Name | Imitation Resin Glazed Tile Forming Machine |
| Raw Material | PP/PE/PVC + ASA Composite Sheets |
| Tile Type | Imitation Resin Glazed Roof Tile |
| Thickness Range | 0.3 – 0.8 mm |
| Note | Other tile profiles and sizes can be customized. |
The imitation resin glazed tile is based on the shape of the resin glazed tile. It has the beauty of the resin glazed tile and the durability of the metal glazed tile. The imitation resin glazed tile produced by Xinnuo has been sold to customers all over the world.
The machine is controlled by PLC automatic control, and the machine runs fully automatically, reducing manpower consumption.
| Raw Material | PP / PE / PVC + ASA Co-extrusion Sheets |
| Material Width | 880 – 1400 mm (customizable) |
| Finished Width | 720 – 1050 mm |
| Thickness Range | 0.3 – 0.8 mm |
| Production Speed | 2 – 5 meters/min (depending on tile profile) |
| Drive Motor Power | 5.5 – 7.5 kW |
| Heating Method | Electric Heating with Temperature Control |
| Control System | PLC Automatic Control with Touch Screen |
| Forming System | Roll Forming or Mold Forming (Optional) |
| Machine Size | About 10 m × 1.5 m × 1.6 m |
| Note | This machine can be customized for different imitation resin tile profiles and sizes. |

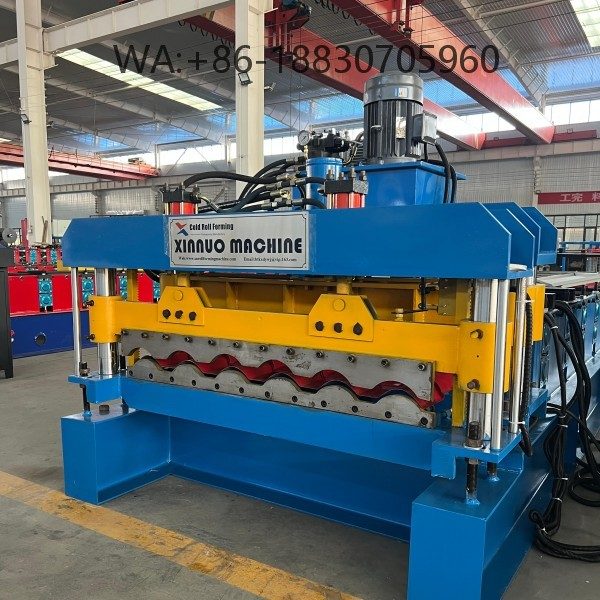

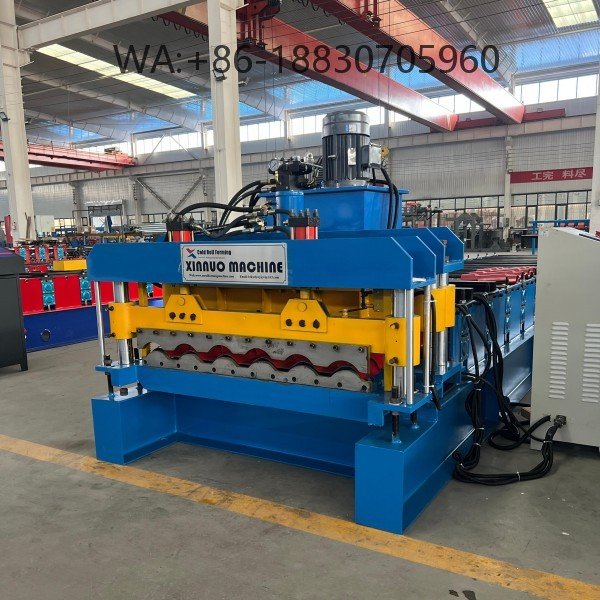

The glazed tile shape is pressed at the end of the machine, and then sheared by the final shearing head.

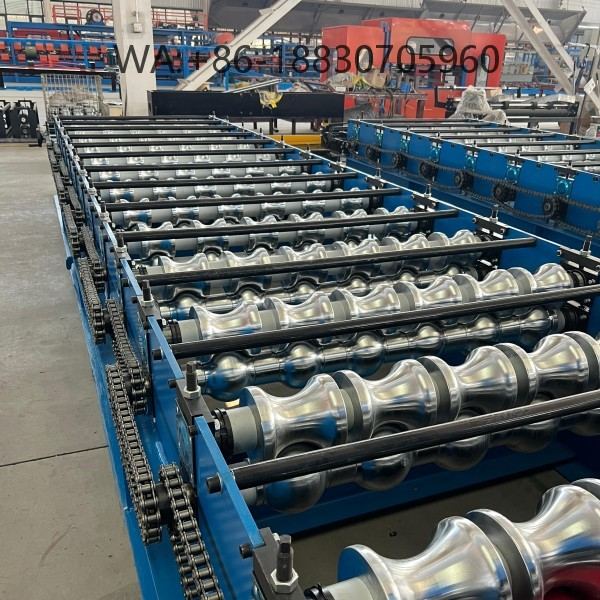

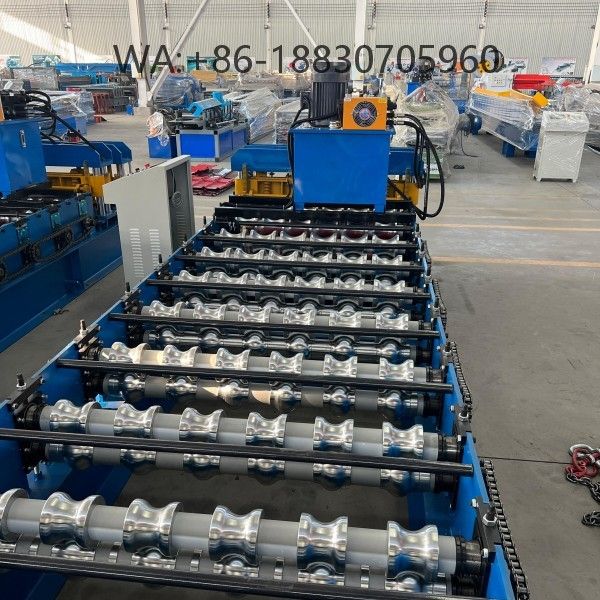

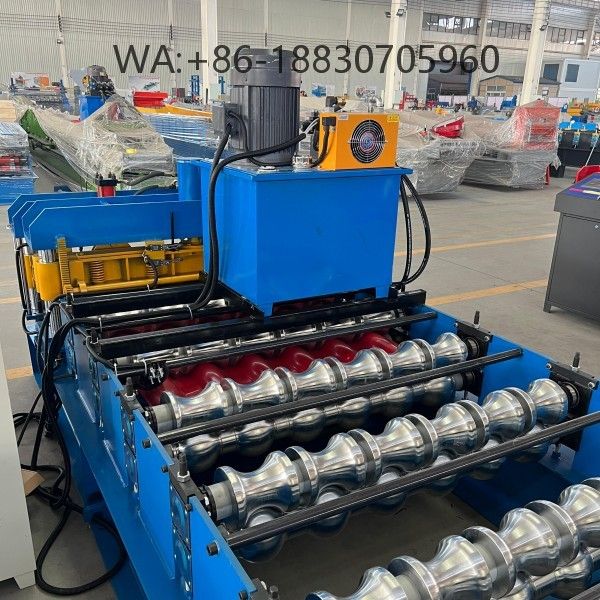

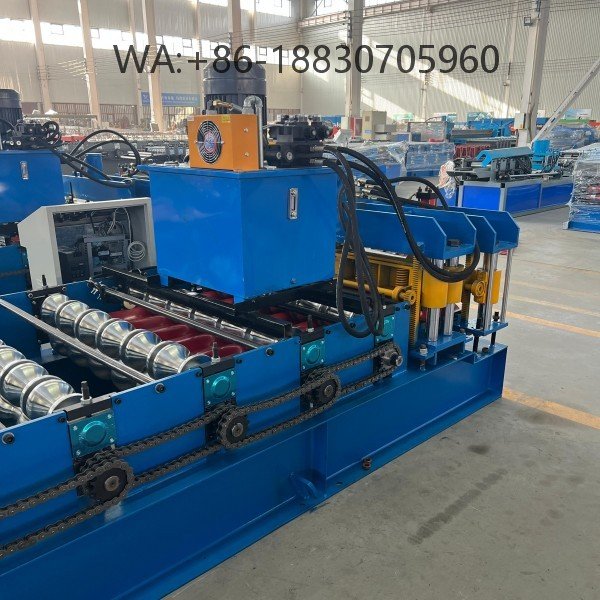

Each set of rollers changes gradually according to the molding progress, and precise processing is used to ensure the standard shape of the glazed tiles produced by the molding machine.

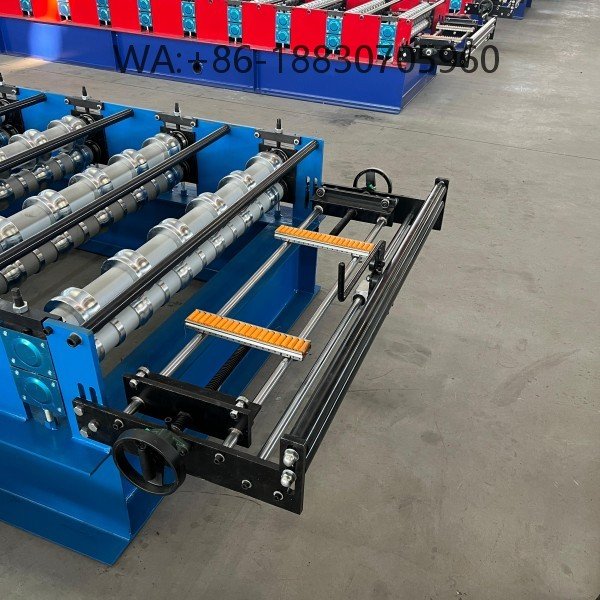

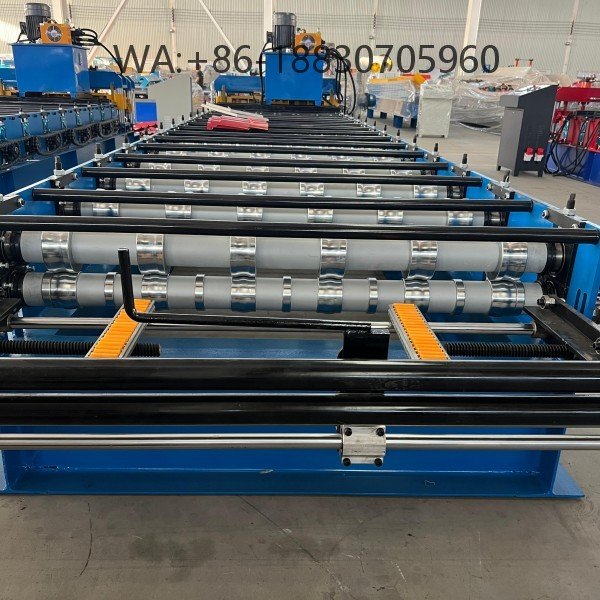

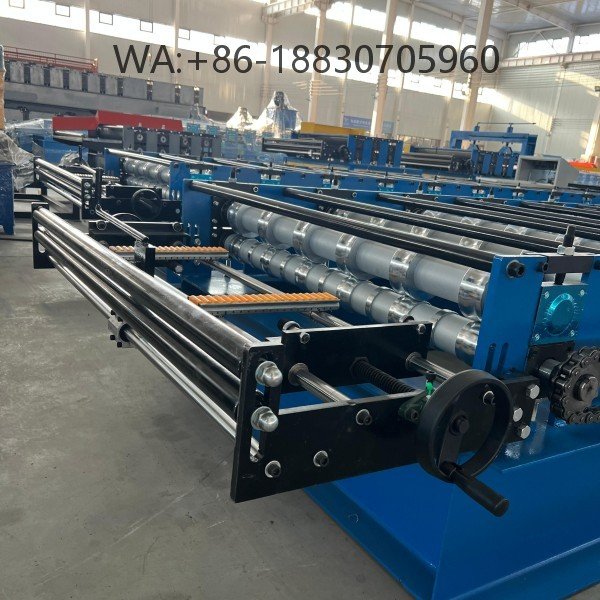

According to customer needs, we can design and adjust the machine's feed width to produce panels of different widths.
The machine can be equipped with an unwinder in front of the feeding port to realize automatic loading and feeding, and automatic production.
