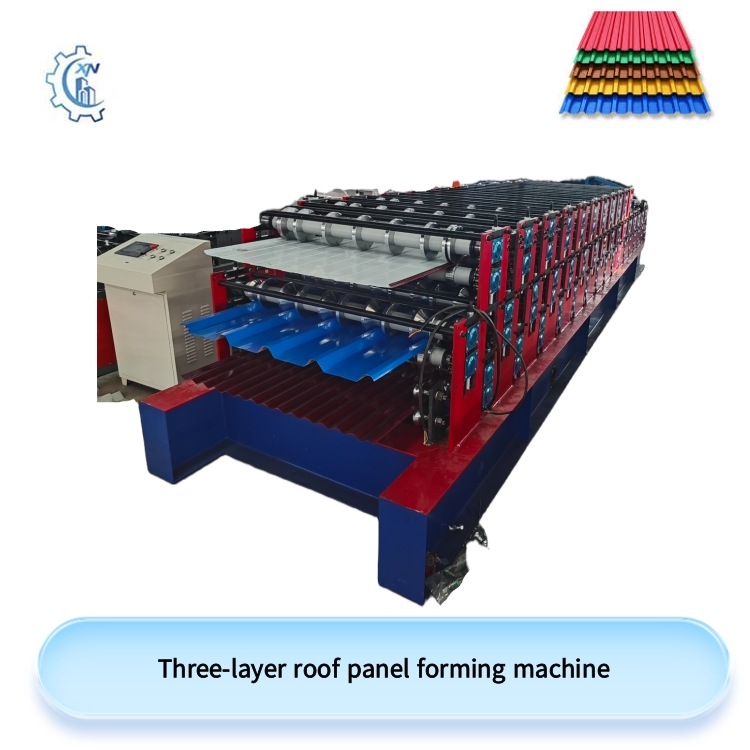

| Machine Name | Three-layer Roof Panel Forming Machine |
| Function | Forming three different roof panel profiles |
| Applicable Materials | Galvanized steel, PPGI, Aluminum |
| Panel Width | 760–1200 mm |
| Number of Profiles | 3 profiles (customizable) |

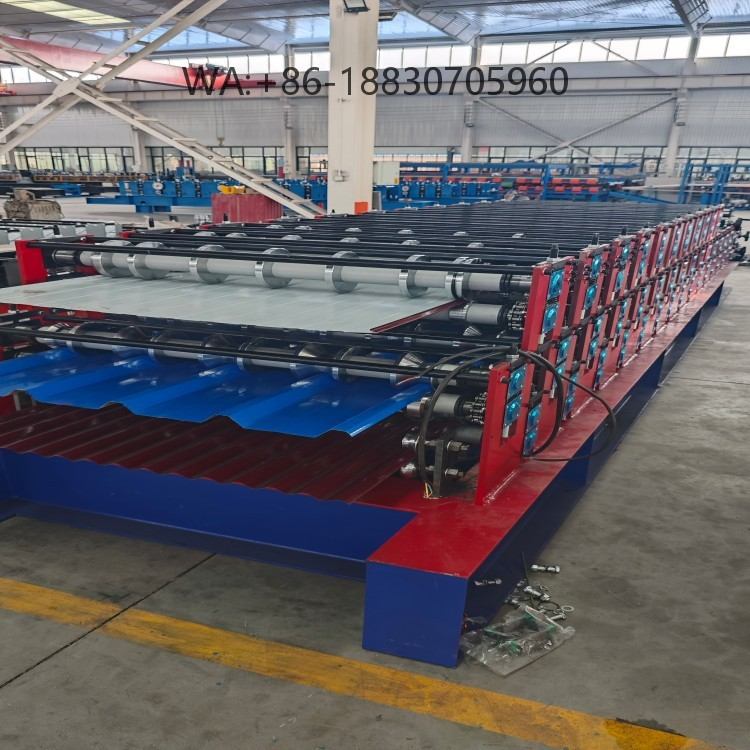

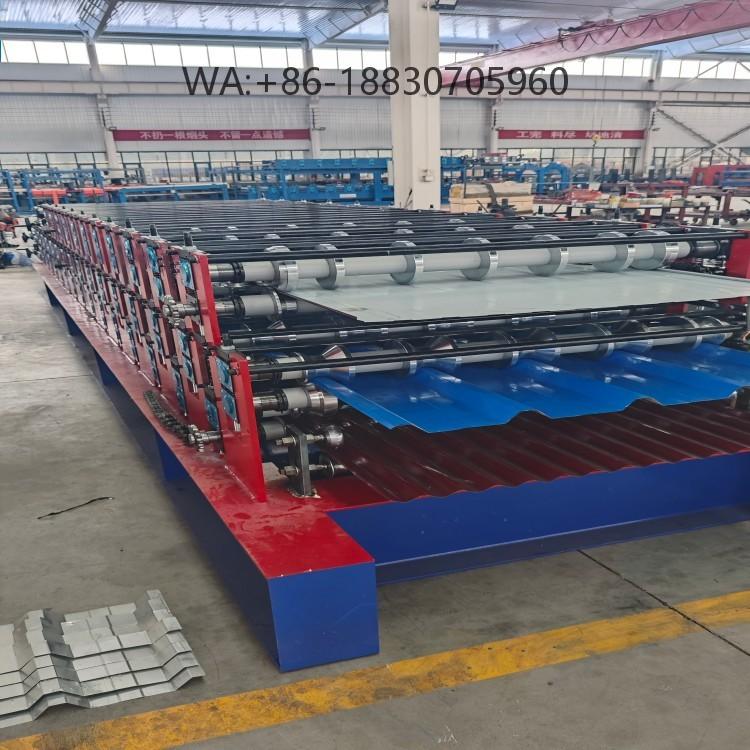

The three-layer roof panel forming machine is suitable for customers who have a small factory area but need to produce a variety of roof panels.
The advantage is that it occupies a small area, reducing the space occupied by three machines to one.

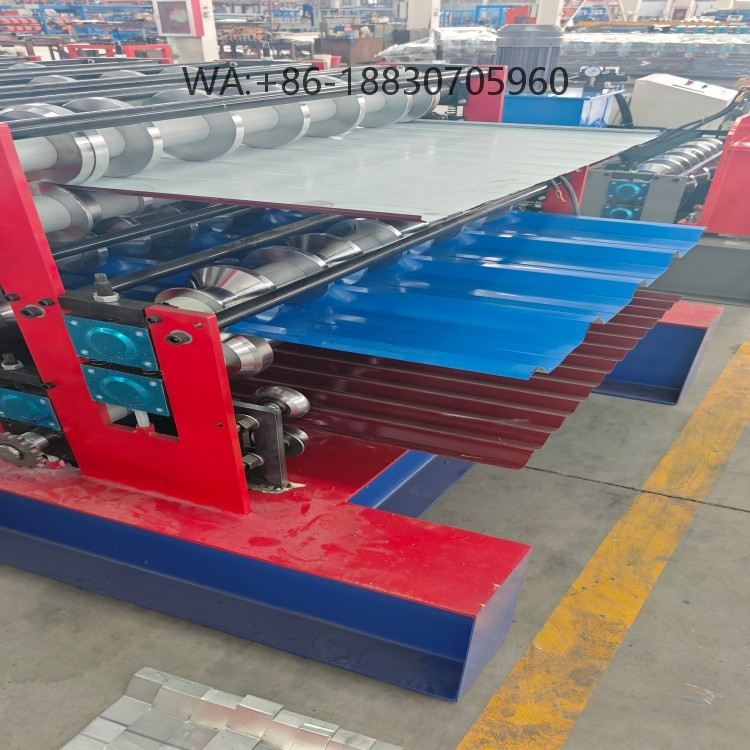

According to customer needs, the three types of layouts can be selected from trapezoidal plates, corrugated plates, glazed tiles and other types.
| Specification | Parameter |
| Feeding Width | 760–1250 mm |
| Effective Panel Width | 600–1000 mm per layer |
| Steel Thickness | 0.3–0.8 mm |
| Forming Speed | 8–15 m/min |

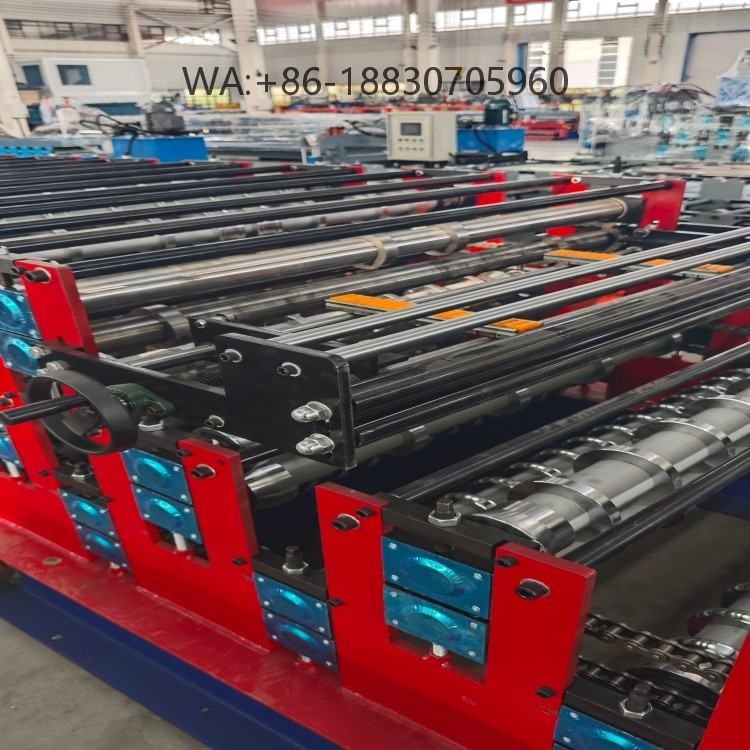

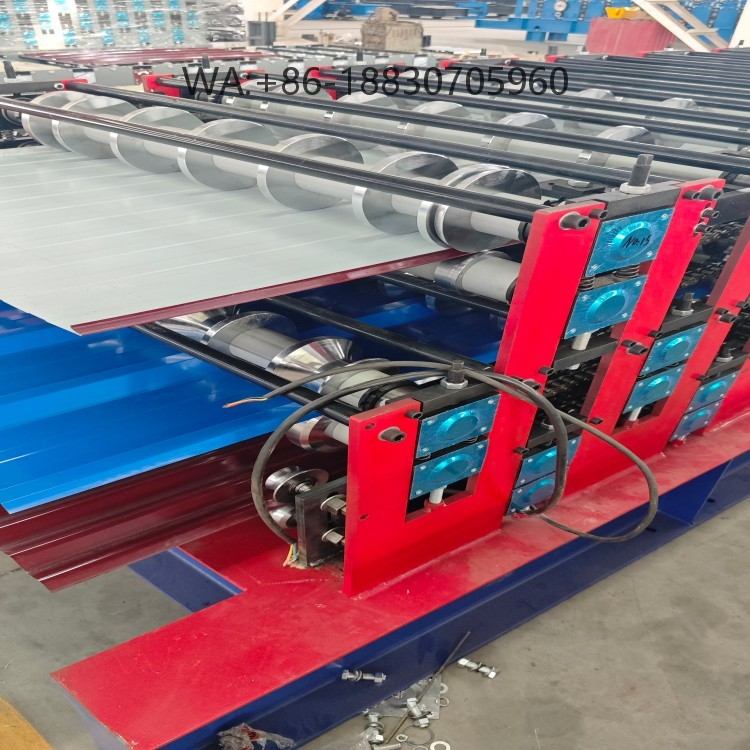

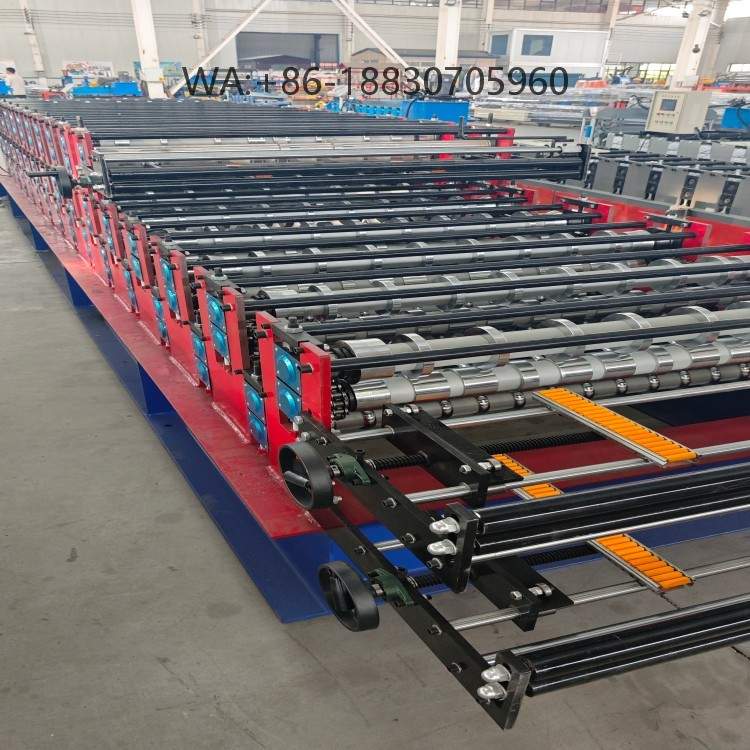

| Roller Stations | 12–20 groups per layer (depends on design) |
| Roller Material | 45# steel with hard chrome plating |
| Cutting Method | Hydraulic cutting |
| Control System | PLC (Mitsubishi/Siemens optional) |
| Main Motor Power | 5.5–11 kW |
| Hydraulic Power | 3–5.5 kW |
| Machine Size | 10–15 m × 2 m × 1.8 m |
| Customization | Supports any 3 roof profiles upon request |
The three-in-one design requires higher experience and technology.
Our factory's 30 years of accumulation in the molding machine industry has made it a mature product.

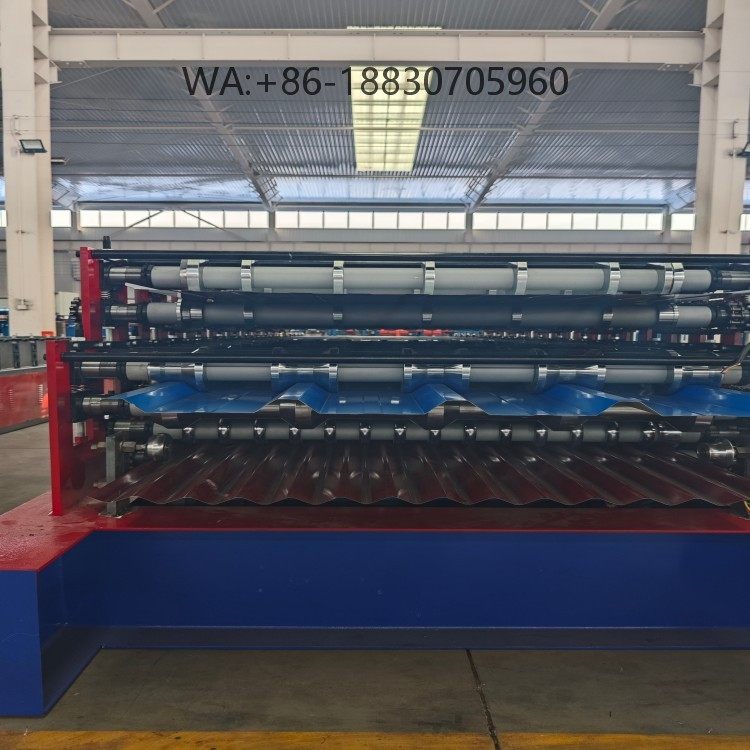

The machine structure is compactly designed, and the three-layer design enables stable operation, with the failure rate being on par with that of a single machine.

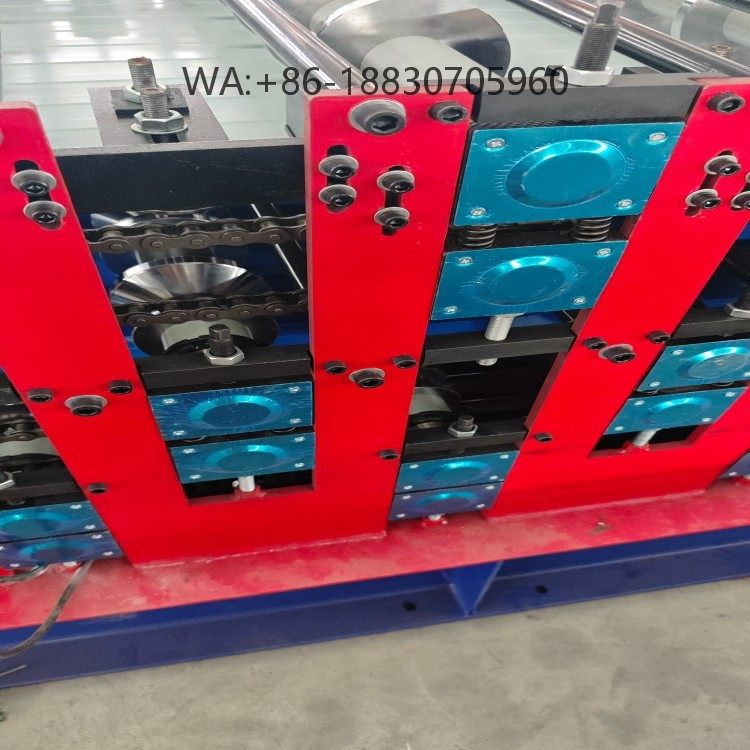

The number of molding rows for each layer is designed according to different molding difficulties.
