| Item | Description |
|---|---|
| Machine Name | 6m Hydraulic Press Brake |
| Bending Length | 6000 mm |
| Max Bending Thickness | 3–10 mm (depending on material) |
| Control System | NC or CNC (E21/Delem/etc.) |
| Power Type | Hydraulic |
| Application | Steel, aluminum, stainless steel |
Bending machines can be used to process metal parts of various shapes. Compared with forming machines, they are more widely used and relatively cheaper.
Our bending machines use high-power hydraulic systems to ensure power during operation.
And the cutter heads are made of materials with high hardness and wear resistance, which makes the bending accuracy and machine durability very high.
For some parts with small usage and low processing difficulty, it is recommended to buy our bending machines for production, which is more cost-effective.
| Parameter | Specification |
|---|---|
| Machine Name | 6m CNC Hydraulic Sheet Metal Bending Machine |
| Max Bending Length | 6000 mm |
| Max Bending Thickness | 3–10 mm (depends on material yield strength) |
| Material Type | Carbon Steel, Stainless Steel, Aluminum |
| Control System | CNC (Delem DA-41T / E21 / TP10 / Optional) |
| Motor Power | 11–22 kW (depending on configuration) |
| Hydraulic System | Integrated system with oil cooler |
| Back Gauge Stroke | 500–800 mm adjustable |
| Bending Accuracy | ±0.5 mm |
| Worktable Width | 500–800 mm (varies by model) |
| Frame Structure | Steel welded frame, stress relieved |
| Safety Features | Light curtain, emergency stop, foot switch |
| Operation Mode | Automatic / Semi-automatic |
| Application |
Construction, roofing, steel structures, fabrication shops |

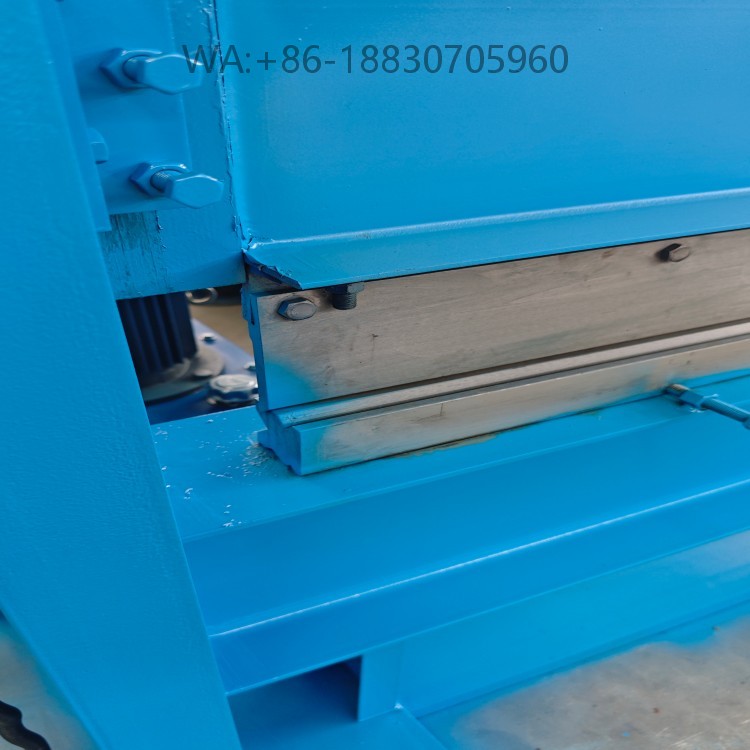

A special mold can be installed under the cutter head to greatly reduce the bending workload and improve speed and accuracy.

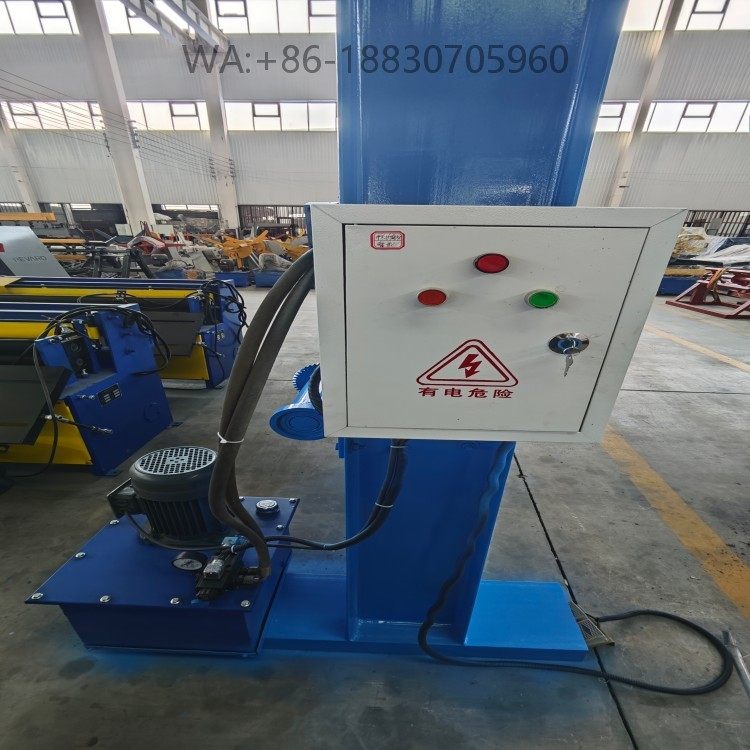

There is a convenient control system on the side of the bending machine to accurately control the operation of the machine.
Remote control can be installed as an option, so that we can remotely solve some after-sales problems for customers in the future.
